LT-D100

dumper
LT-D100dumper

EFFICIENT TRANSPORTATION
STRONG APPLICABILITY

Dumpers can easily access confined areas inaccessible to conventional excavators, solving construction challenges in specialized work environments. They are easy to transport—eliminating the need for large-scale hauling equipment-and can be quickly relocated between job sites, thereby reducing both transportation costs and logistical complexity.
Get a quote
View Video

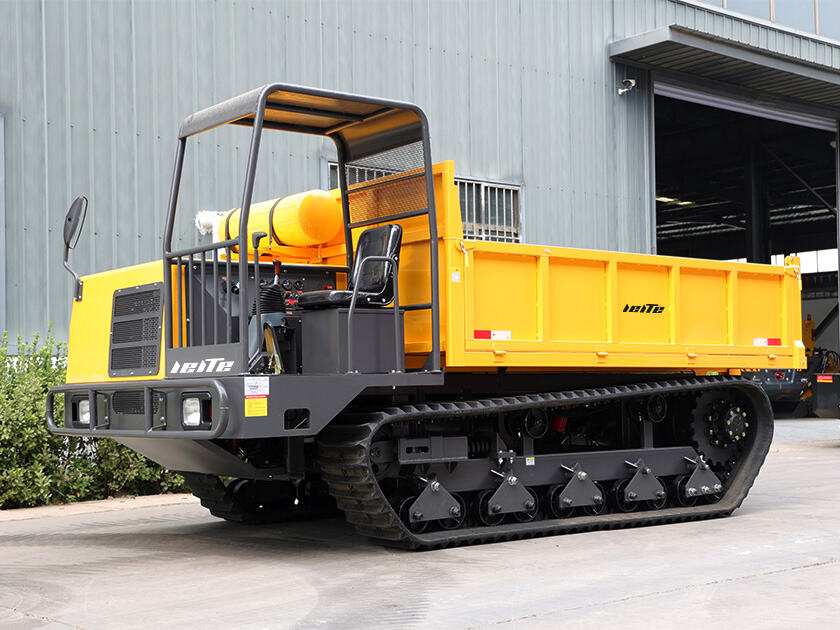

1.LT-D100-DUMPER

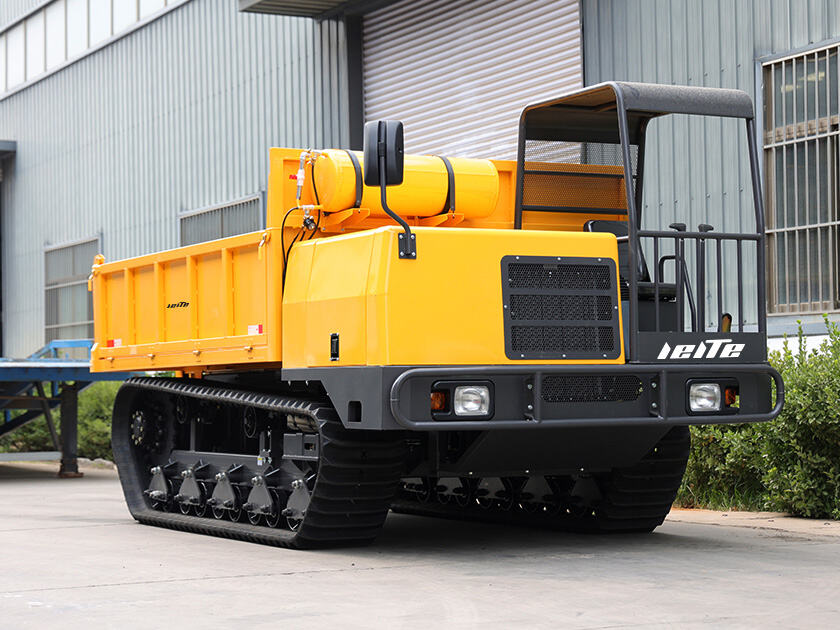

2.LT-D100-DUMPER

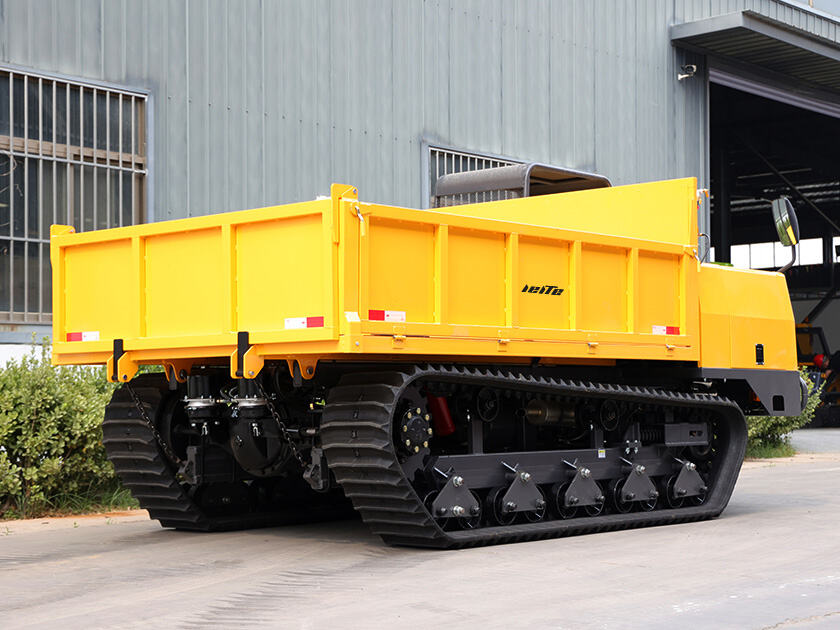

3.LT-D100-DUMPER

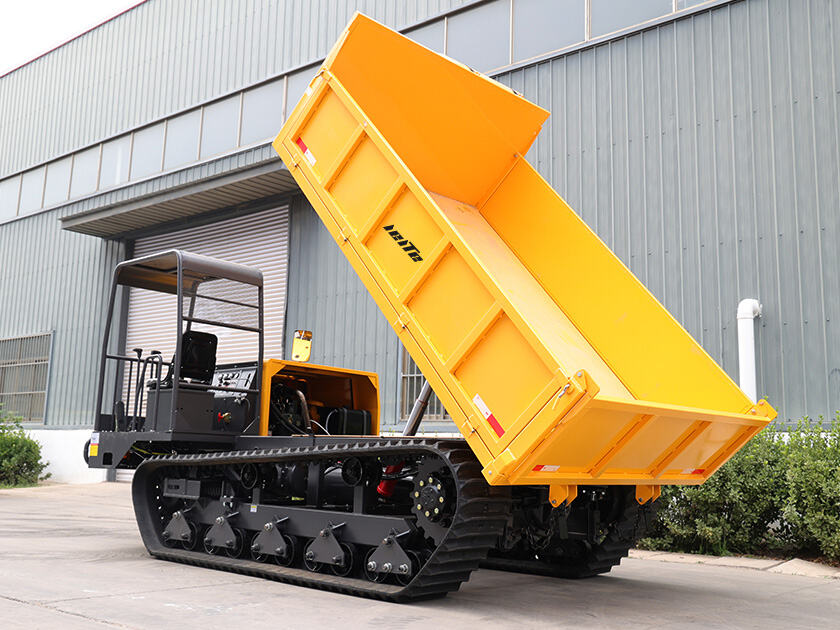

4.LT-D100-DUMPER

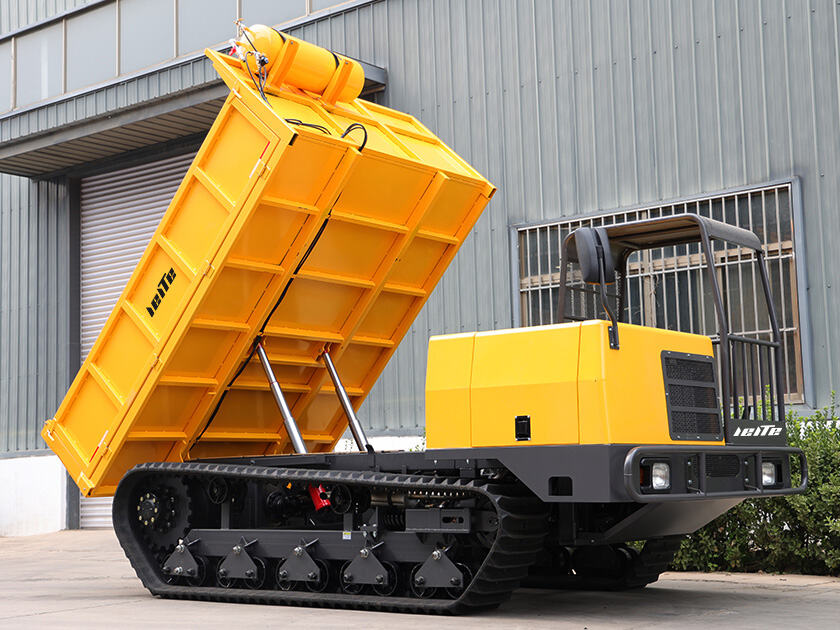

5.LT-D100-DUMPER
  • Machine weight4.4T
  • Cargo size3100*2200*600mm
  • Engine4108 turbocharged engine
  • Power128.7HP
Overview LT-D100 dumper

Benefits

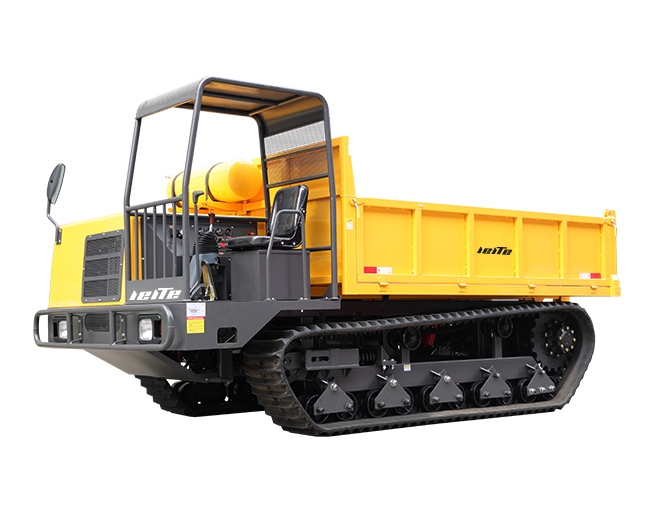

  • Dumping
  • Dumping

    Choose which side you want to dump from: rear . This means youcan safely dump into trenches without using much space. There's aremarkable dumping angle of 58°, so first-time safe dumping speedsup your site work. A mudguard prevents material from falling fromthe wagon and damaging hydraulic components or getting into theoperator area.

    Special offers

Specifications

Load10000KG
Engine4108 turbocharged engine
Power128.7HP
Gearbox545 gearbox
Track450-90-82
Travel speed35km/h
Vehicle dimensions4535*2286*2457mm
Carriage dimensions3100*2200*600mm
Drive axle153 Strengthened rear axle
Gear positionFront 5 Back1
Braking methodAir brake
Minimum ground clearance340mm
Uphill grade35°

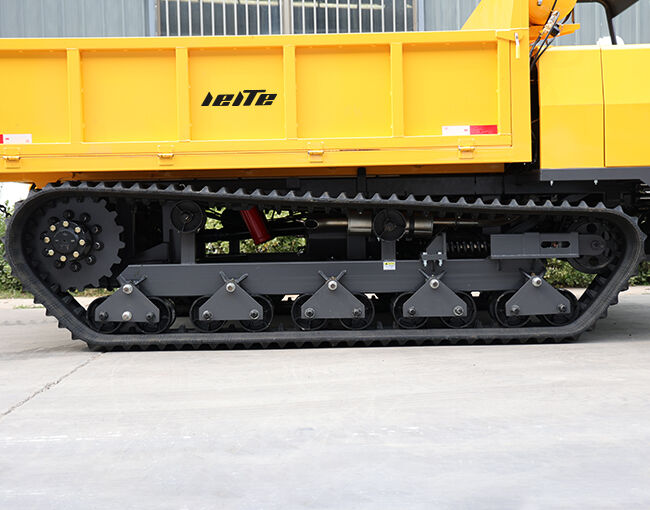

Number of track rollers200 full floating roller x10

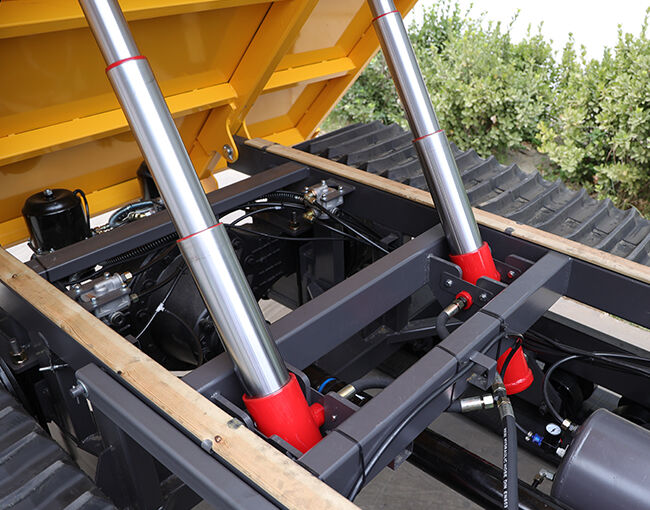

Hydraulic cylinderBig 900 double cylinder dump truck
Track roller bearings6207-2Z
Tensioner bearings6207-2RS
Machine weight4.4T
