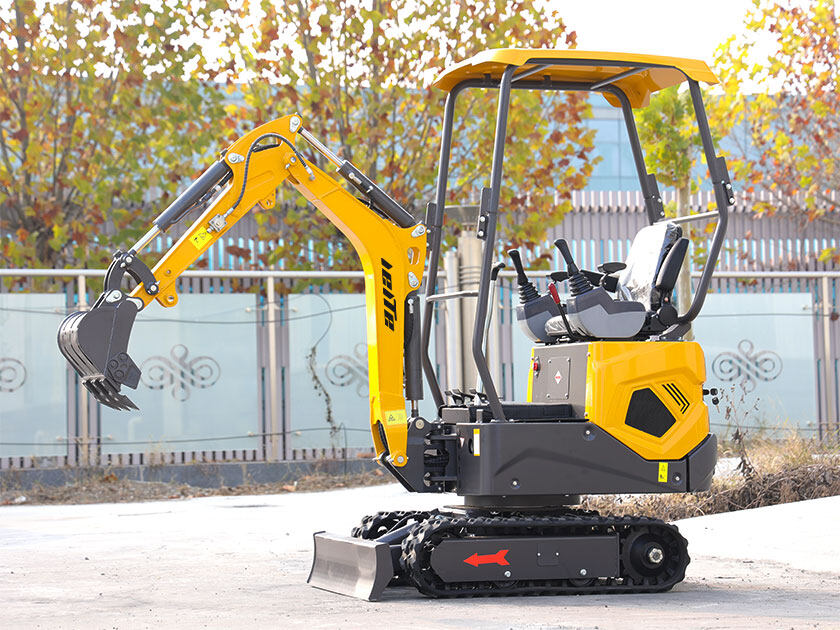

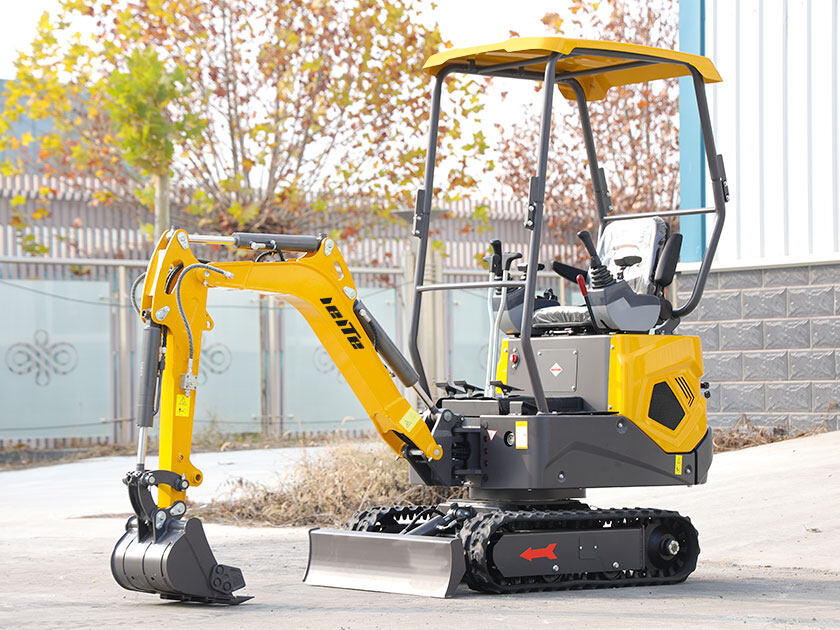

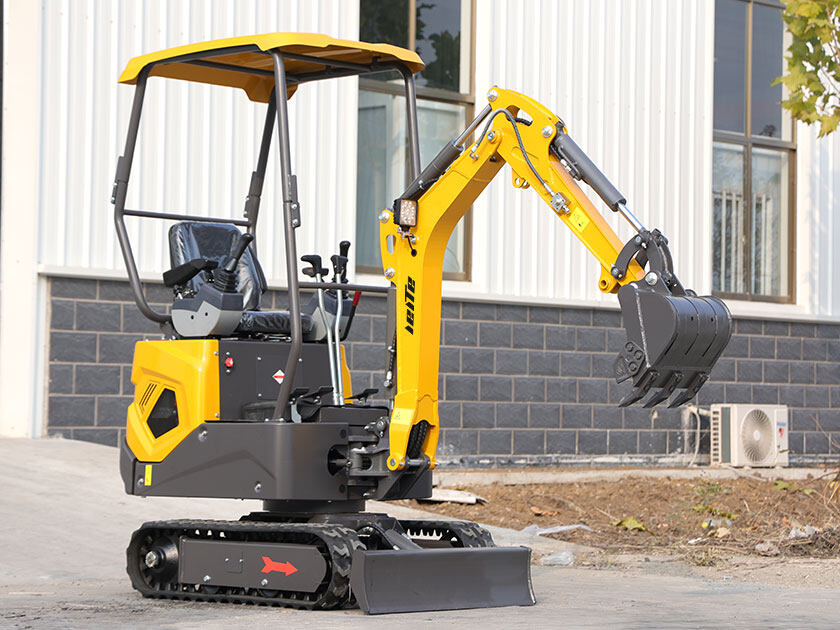

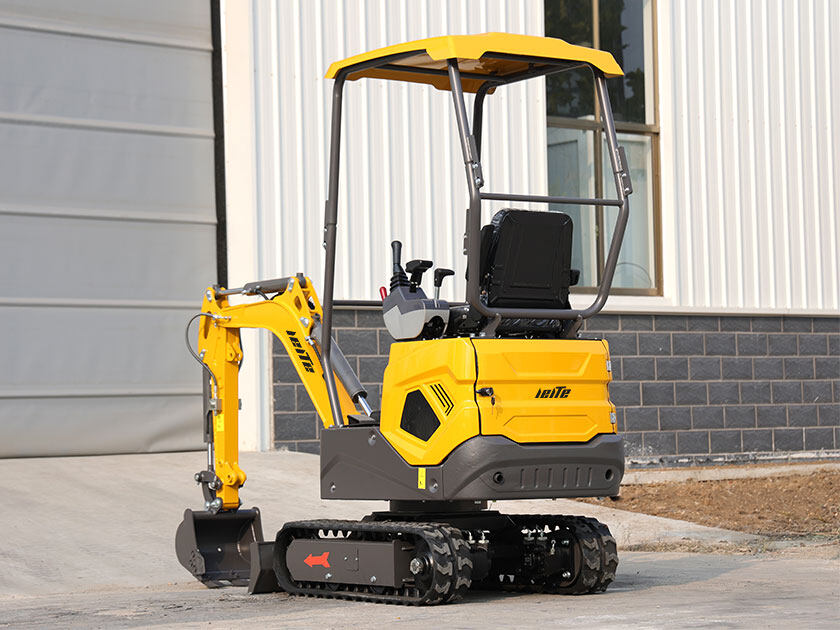

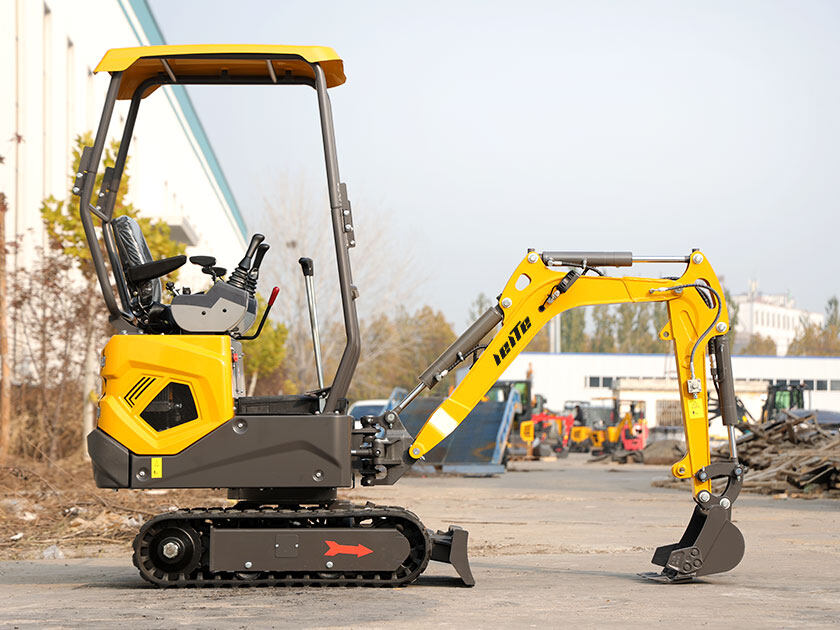

The LT1012S mini excavator is compact, highly maneuverable and has high lateral stability. It offers excellent value for general construction, landscaping and utility contractors. With its compact size, retractable undercarriage and dozer blade extension,The LT1012S mini excavator is compact, highly maneuverable and has high lateral stability. It offers excellent value for general construction, landscaping and utility contractors. With its compact size, retractable undercarriage and dozer blade extension, this machine is ideal for getting through narrow doorways, fences and other passages.
Get a quote
View Video
Operating weight1200kg
Maximum dig depth1725mm
Net power7.6kW
Bucket capacity0.022m³

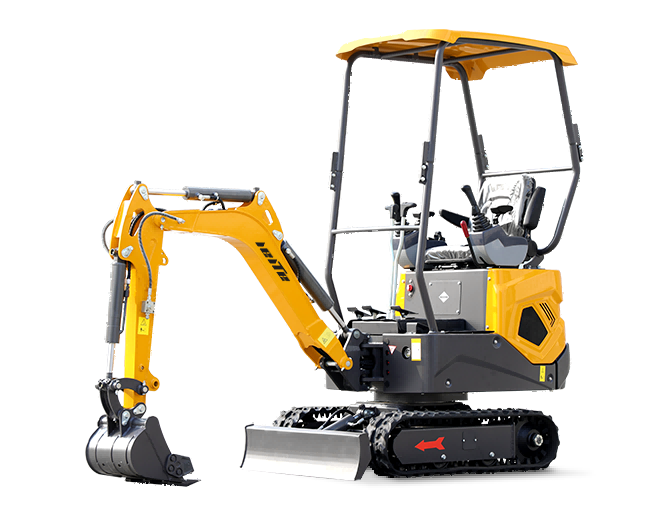

Overview LT1012S mini excavator with tail
Powerful, high-performance, compact design to help you work in a variety of applications
Benefits
Color and logo can be customized
Customize your exclusive work partner according to your ideas
Multiple brands of engines available
Recommend suitable engines for you according to the environmental protection requirements of your location
A variety of auxiliary tools are available
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
Overseas warehouse
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily
Introduction

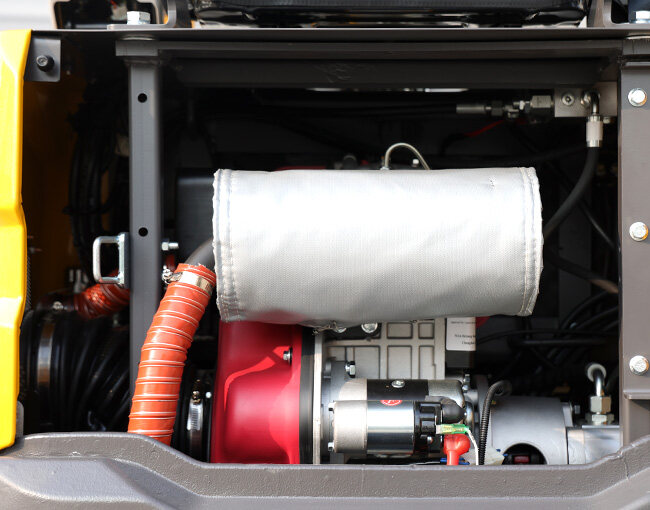

Engine

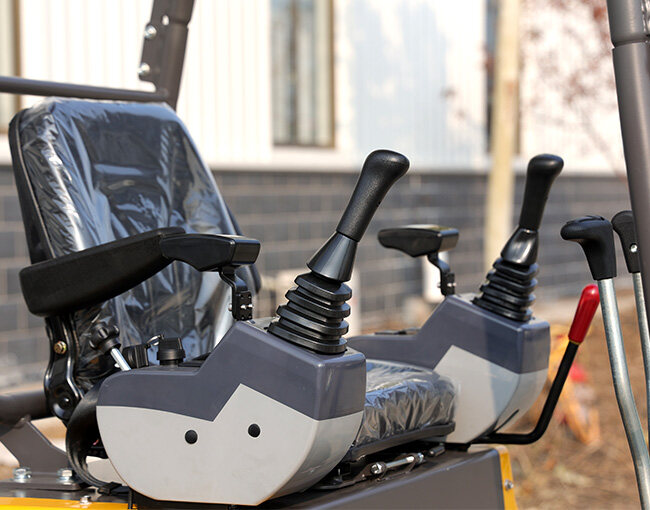

Easy to operate

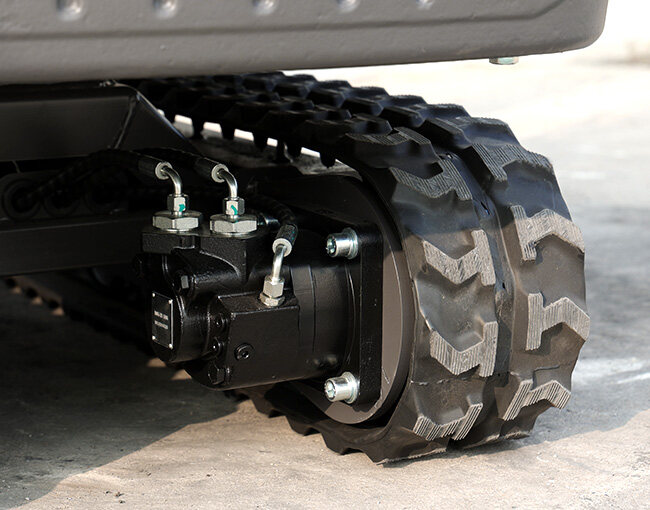

Climbing ability
Customizable
Strong and reliable Reliability
Leite Mini excavators are precision engineered using components and systems from leading and proven sources. The LT1012S is designed to be rugged and reliable to extend uptime, reduce operating costs and increase productivity.
Special offers
Specifications
Model
Koop192FA
Power
7.6kw 3000rpm
Operating weight
1200 kg
Bucket capacity
0.022m³
Swing speed
9rpm
Max.toque
25/2500N.m/r/min
Max.gradeability
30°
Max.travel speed
1.8km/h
Length*Width*Height
2890*930*2285 mm
Max. digging force
6.5kN
Min.turning radius
1490 mm
Max.dozing height
170 mm
Max.dozing depth
240 mm
Max.digging height
2490 mm
Max.unloading height
1745 mm
Max.digging depth
1725 mm
Max. excavation distance
3030 mm
Max.vertical digging depth
1655 mm
Max.digging ground distance
2940 mm
Get the offer

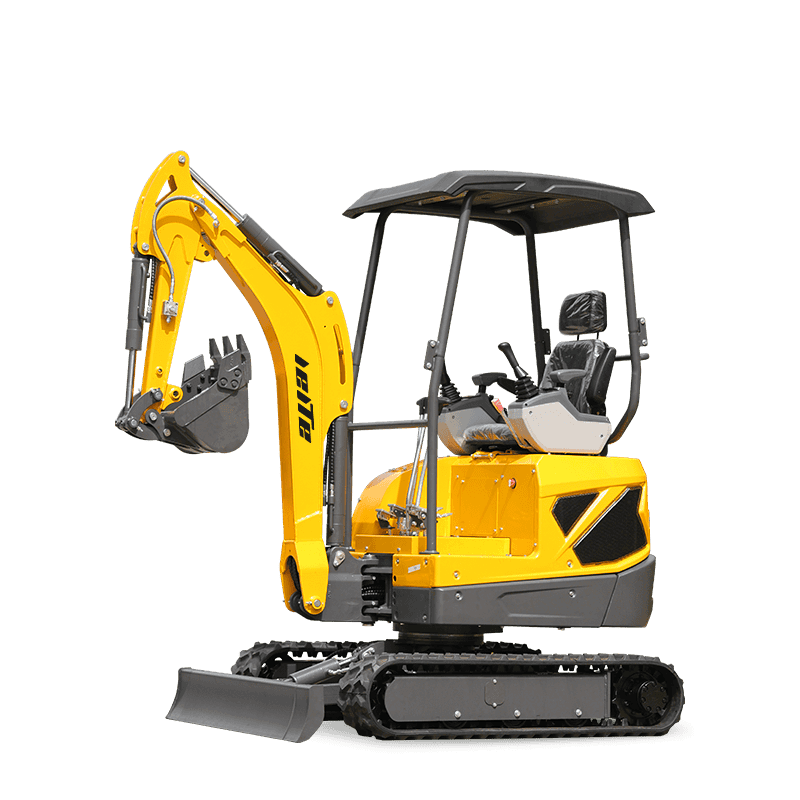

Hot selling models
