- Operating weight6000kg
- Maximum dig depth3835mm
- Net power39.8kW
- Bucket capacity0.22m³
Powerful, high-performance, compact design to help you work in a variety of applications
Customize your exclusive work partner according to your ideas
Recommend suitable engines for you according to the environmental protection requirements of your location
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily

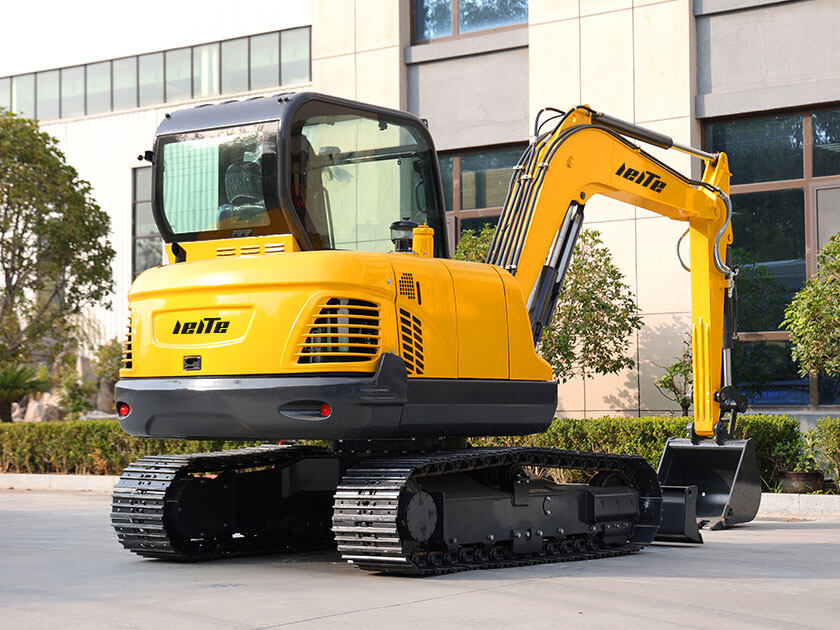

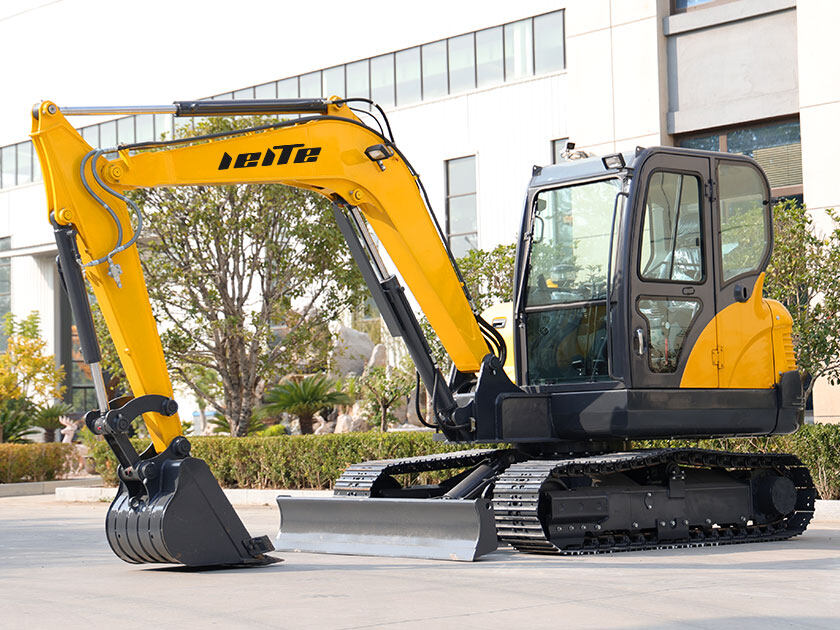

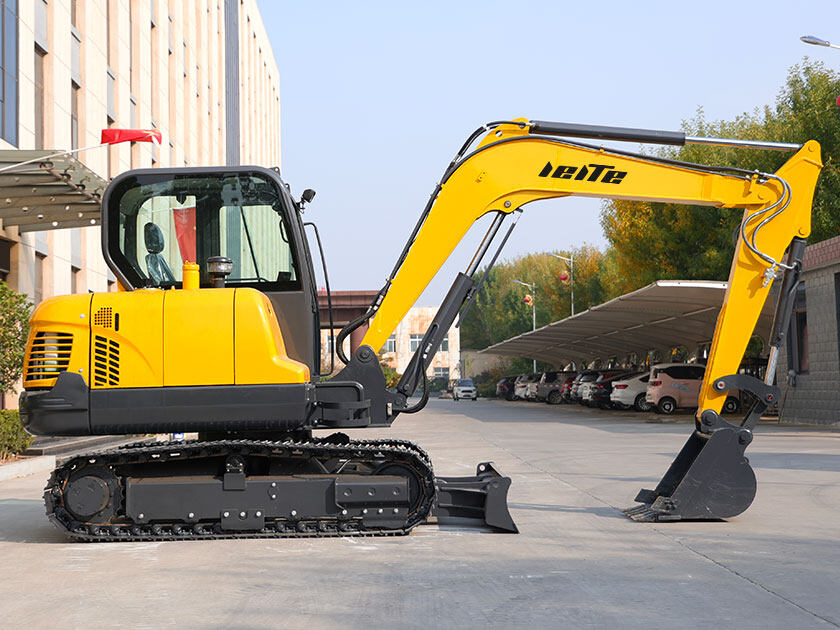

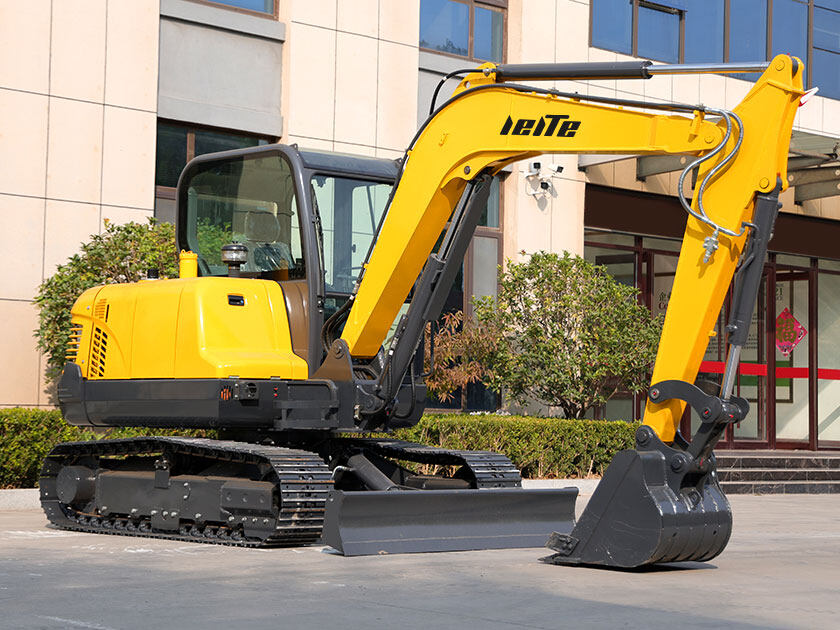

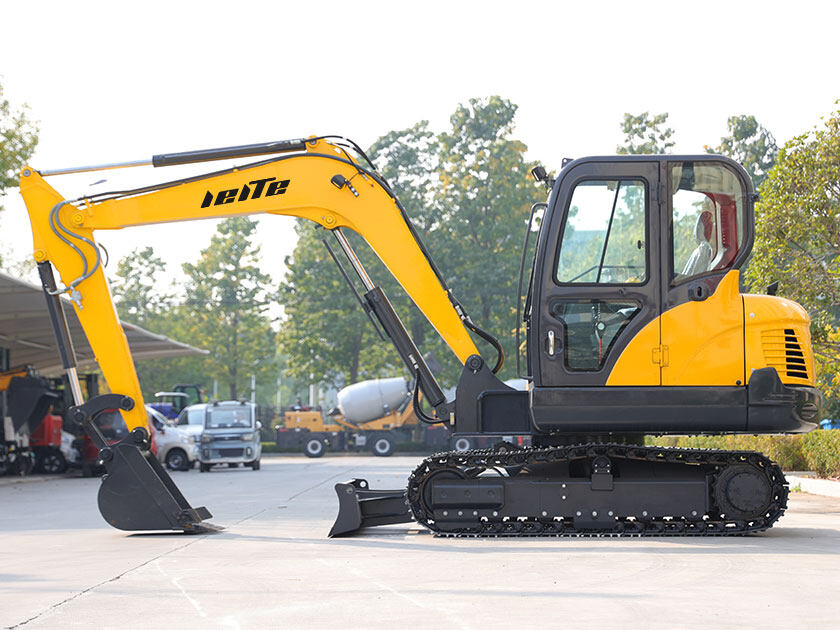

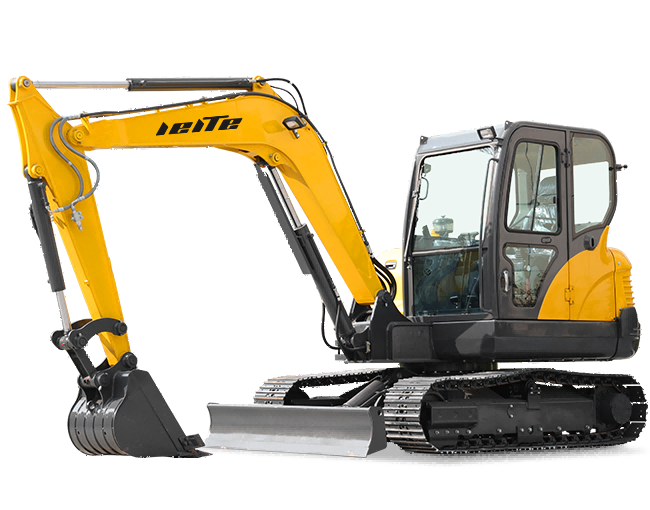

Vote Mini excavators are precision engineered using components and systems from leading and proven sources. The LT1060 is designed to be rugged and reliable to extend uptime, reduce operating costs and increase productivity.And a variety of auxiliary tools can be selected to achieve multiple uses of one machine.

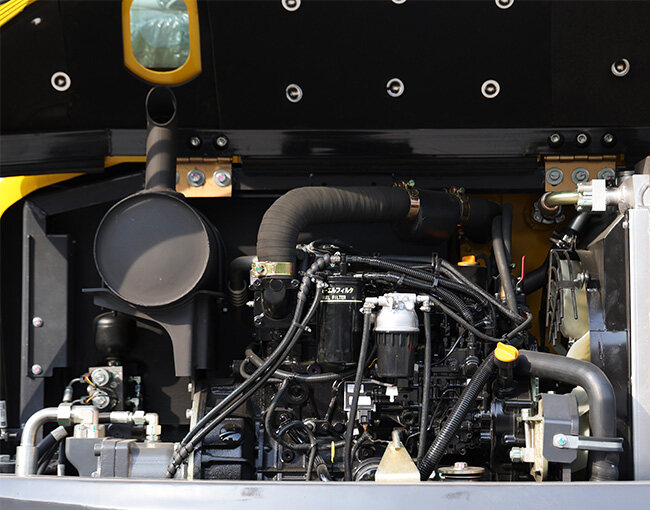

Model | Yanmar 4TNV98L |
Power | 39.8kw/2100rpm |
Operating weight | 6000 kg |
Bucket capacity | 0.22m³ |

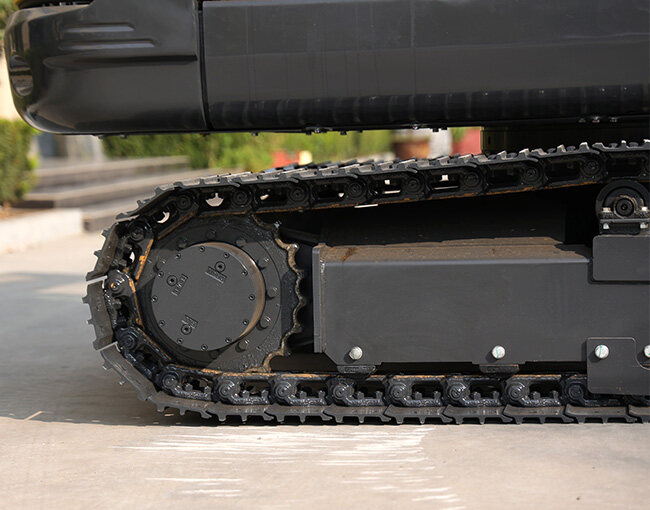

Total track length | 2540 mm |
Total track width | 2000 mm |
Length*Width*Height | 5865*1980*2587 mm |
Cylinders | 4 |
Bucket digging power | 37.7 kN |
Max.digging height | 5632 mm |
Max.dumping height | 3950 mm |
Max.digging depth | 3835 mm |
Max.vertical digging depth | 2680 mm |
Max.digging radius | 6145 mm |
