Diesel forklifts have high power, strong climbing ability, low requirements on road surface, and long working duration. They are suitable for heavy loads, long working hours, and open outdoor working environments. They have better acceleration performance under heavy loads and are more suitable for short-distance, low-speed, heavy-load, and high-low speed handling operations.
Get a quote
View Video
Rated Lifting Load7000kg
Lifting Height3-8m/customized
EngineXinchai/Chaochai
Net Power85kW

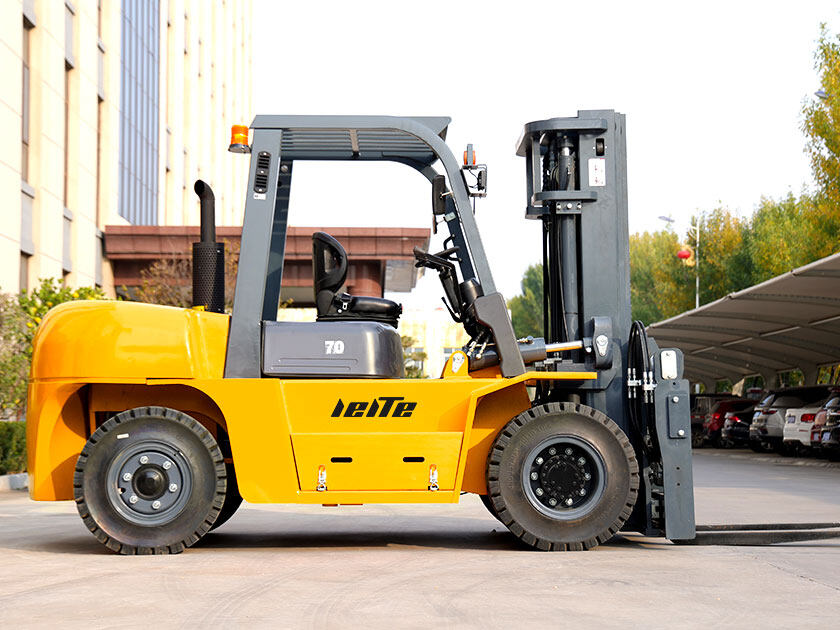

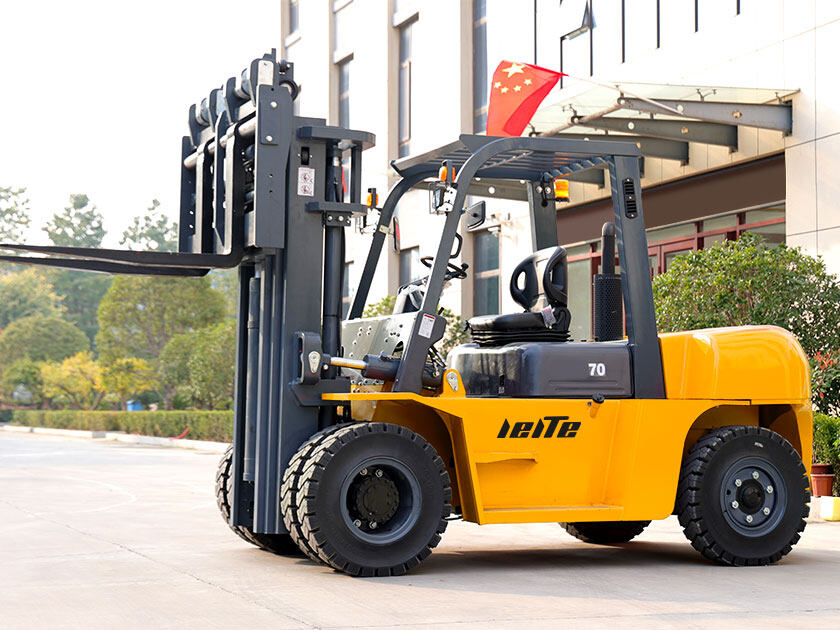

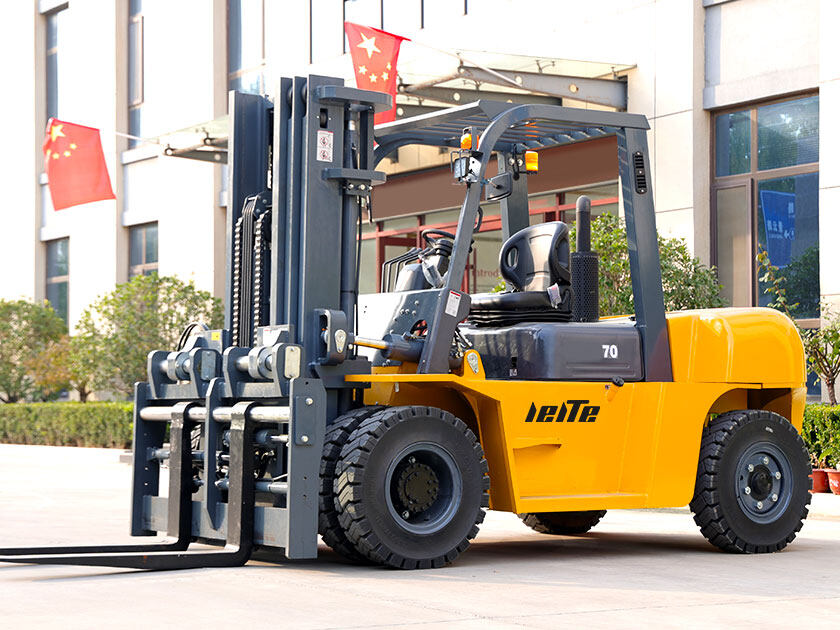

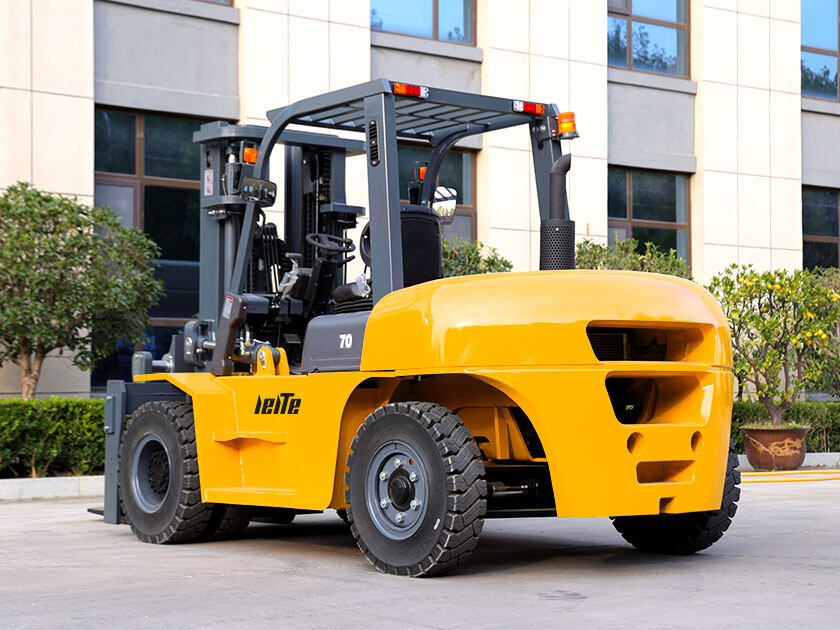

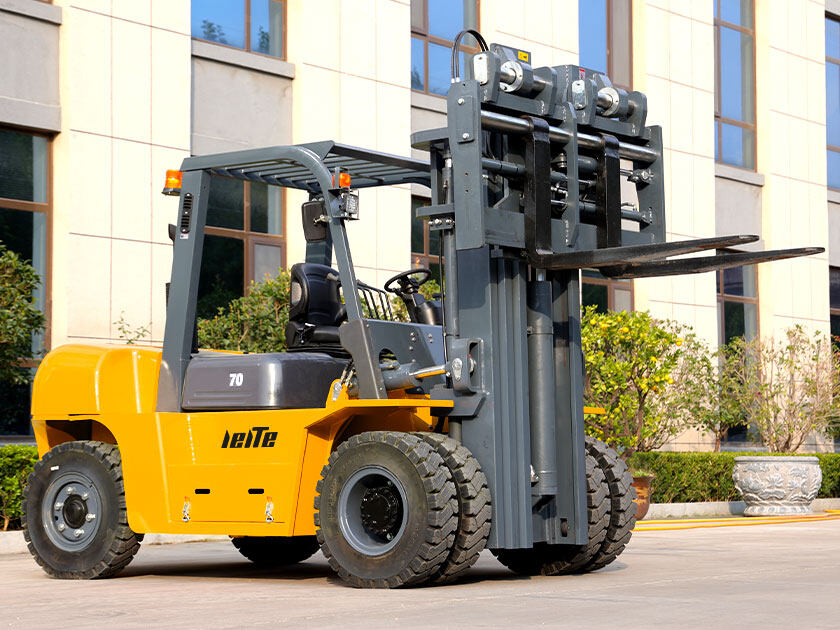

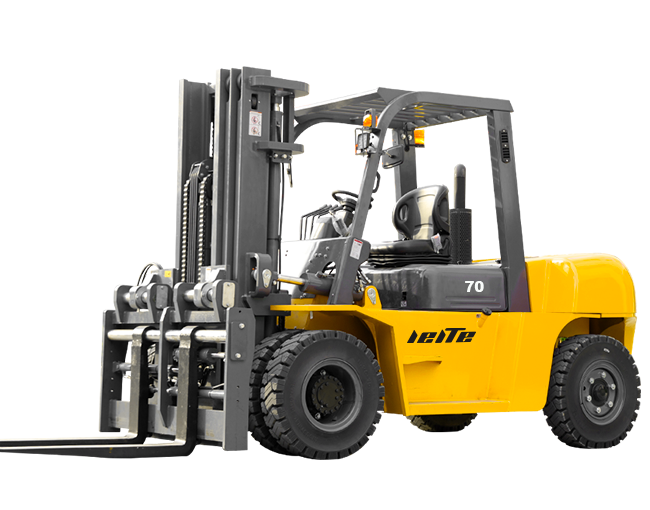

Overview LTP70 diesel forklift
Powerful, high performance, innovative design to help you work in a variety of applications
Benefits
Color and logo can be customized
Customize your exclusive work partner according to your ideas
Multiple brands of engines available
Recommend suitable engines for you according to the environmental protection requirements of your location
24-hour online customer service
We have professional engineers 24 hours a day to answer your questions one-on-one, and you can enjoy a 365-day warranty when placing an order
Overseas warehouse
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily
Introduction

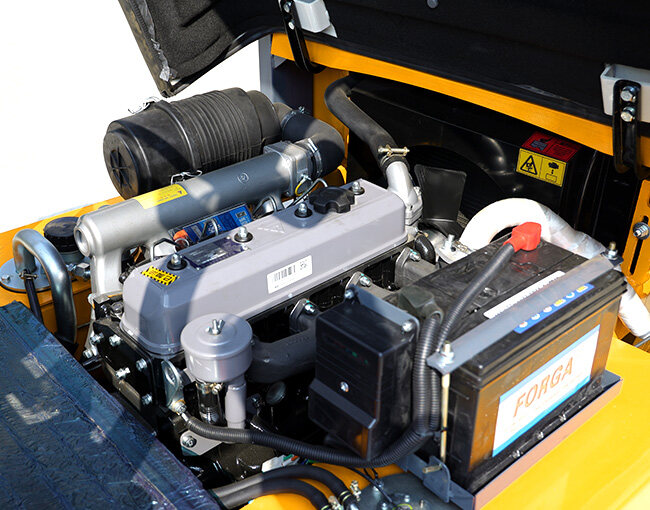

Engine

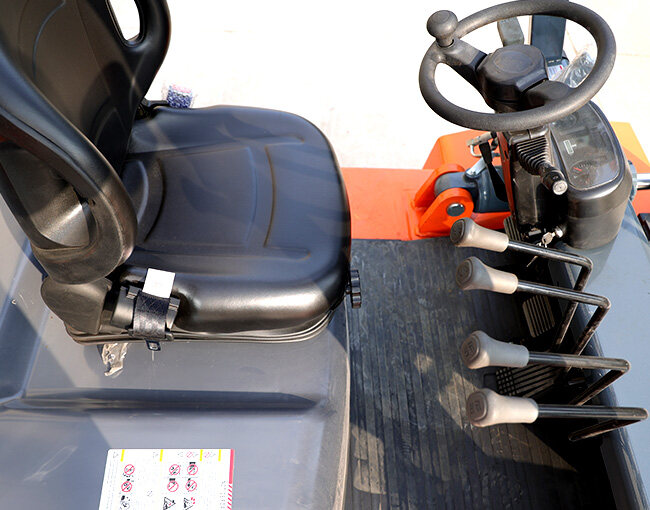

Easy to operate
Durability

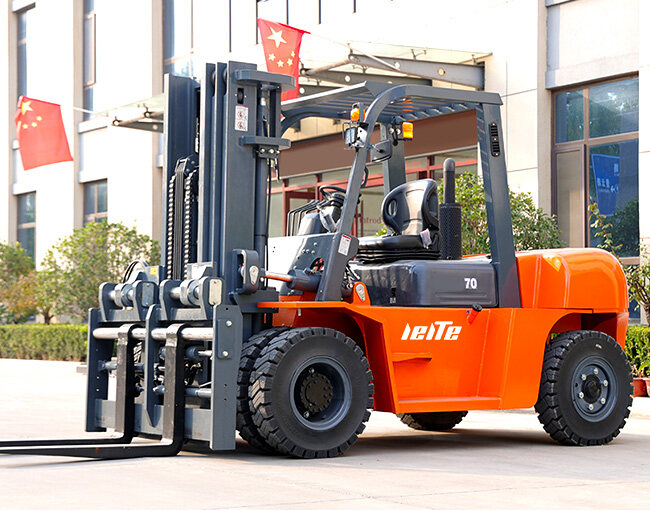

Customizable
High cost performance
As an important material handling equipment, Leite diesel forklift has cheap fuel, high power, strong climbing ability, low requirements on road surface, long operation duration, good maintenance performance, and is suitable for heavy loads, long working hours and open outdoor working environments.
Special offers
Specifications
Rated Load
7000kg
Load Center Distance
600mm
Free Lifting Height
210mm
Full Length (fork/without fork)
4810/3680mm
Ful Width
1970mm
Full Height (overhead guard)
2500mm
Wheelbase
2250mm
Min.Ground Clearance (at the door frame)
230mm
Mast Tilt Angle(Front/Rear)
6°/12°

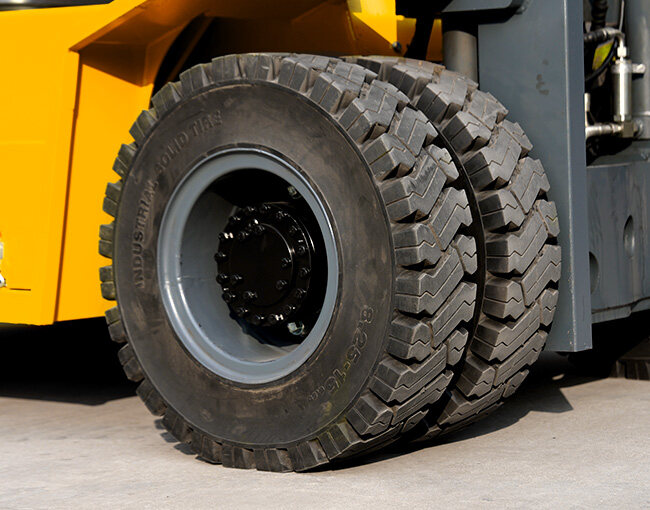

Tire No. (Before)
8.25-15-14PR
Tire No. (After)
8.25-15-14PR
Min.Turning Radius (outer side)
4180mm
Min.Right Angle Channel Width
5360mm
Fork size L*W*T
1220*150*65mm
Max.Travel Speed (laden/unladen)
22/29km/h
Max.Lifting Speed (full load/no load)
500/480mm/s
Max.Gradeability Machinery (full load/no load)
15/20%
Gross Weight
9600kg
Engine Brand
XICHAI/CHAОCHAI
Power
85KW
