The large-diameter wide-base off-road tires provide strong traction and off-road performance, adapting to various harsh environments. The thickened articulated frame and solid structure ensure the stability of the vehicle in various environments. It has strong power, high reliability, and few failures, providing stable and reliable power output.
Get a quote
View Video
Rated Lifting Load10000kg
Lifting Height3-7m/customized
EngineWeichai
Net Power92kW

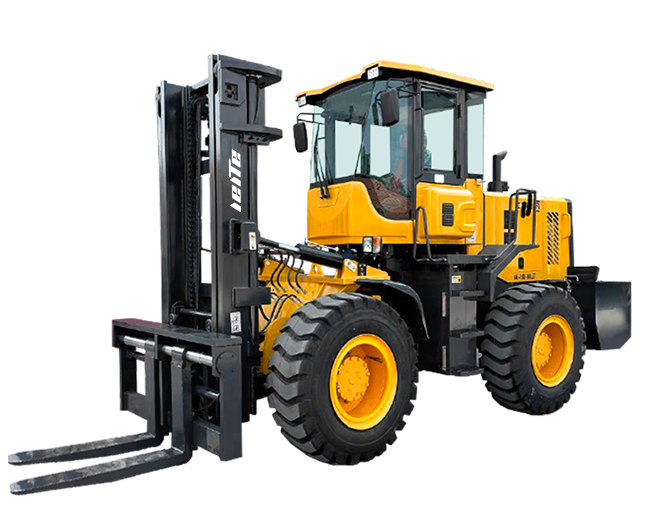

Overview LTY100 rough terrain forklift
Powerful, high performance, innovative design to help you work in a variety of applications
Benefits
Color and logo can be customized
Customize your exclusive work partner according to your ideas
Multiple brands of engines available
Recommend suitable engines for you according to the environmental protection requirements of your location
24-hour online customer service
We have professional engineers 24 hours a day to answer your questions one-on-one, and you can enjoy a 365-day warranty when placing an order
Overseas warehouse
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily
Introduction

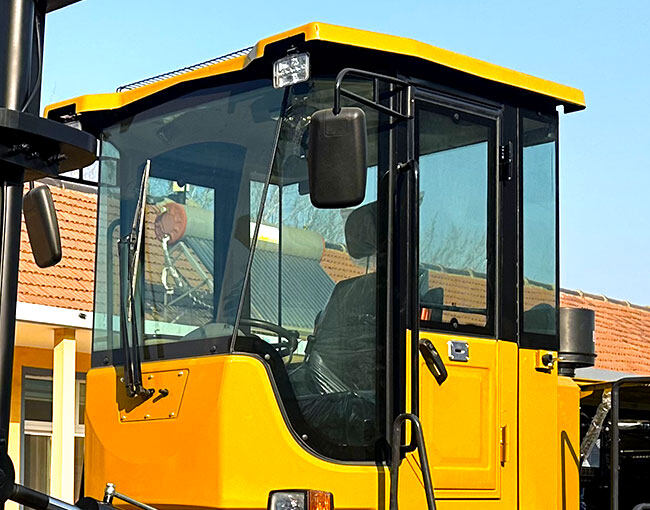

Comfortable&spacious
Easy to operate
Durability
Customizable
Excellent off-road performance

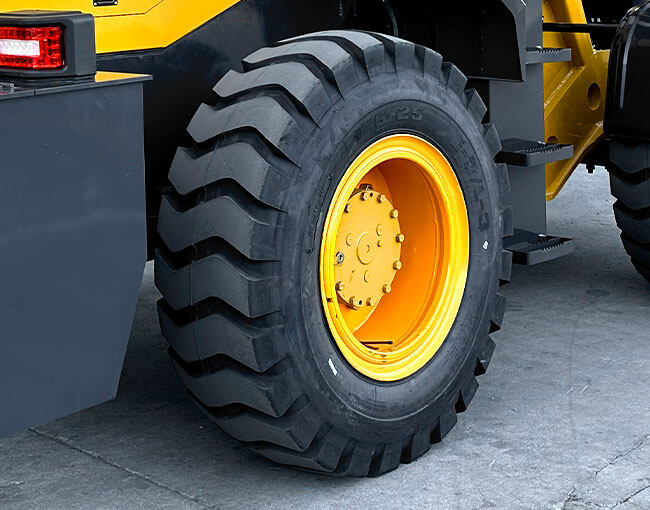

The large-diameter wide-base off-road tires have a large ground clearance to ensure good passability on various complex terrains. The all-wheel drive design, four-wheel drive, low-pressure wide-base off-road engineering vehicle special herringbone tires provide strong traction and off-road performance, and are suitable for various harsh environments.
Special offers
Specifications
Rated Lifting Weight
10000kg
Rated Lifting Height
4000-7000mm
Platform Ground Clearance
380mm
Min.Turning Radius
6500mm
Max.Climbing Angle
≤38°
Running Speed
45 km/h
Traction
60.0KN
Engine Model
Weichai (92kW)
Drive Mode
Four-Wheel Drive
Gearbox Model
315 liquid torque converter, 428 transmission
Axles
30 bridge
Tire Model
17.5-25 Engineering steel wire tire
Frame Width
220mm
Fork Length
1520mm(Optional)
Machine Weight
12000kg
Machine Size
5800*2400*3300mm
