The large-diameter wide-base off-road tires provide strong traction and off-road performance, adapting to various harsh environments. The thickened articulated frame and solid structure ensure the stability of the vehicle in various environments. It has strong power, high reliability, and few failures, providing stable and reliable power output.
Get a quote
View Video
Rated Lifting Load4000kg
Lifting Height3-7m/customized
EngineXichai/Yunnei4102
Net Power61-63kW

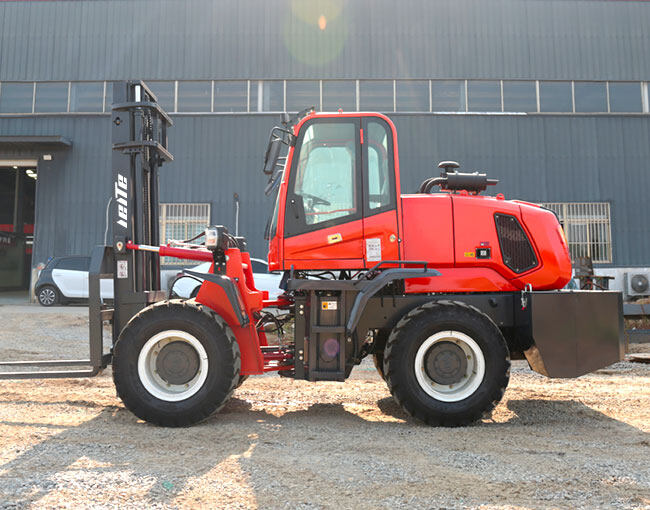

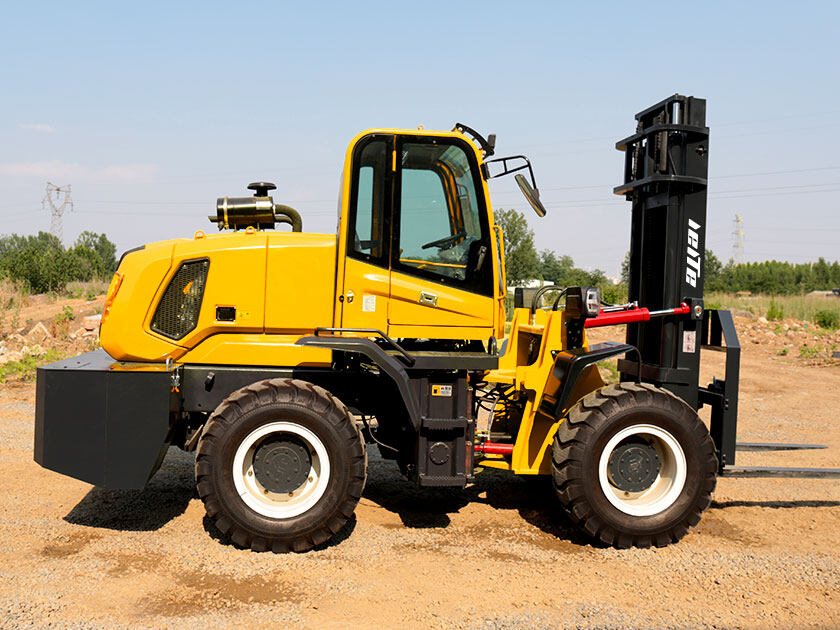

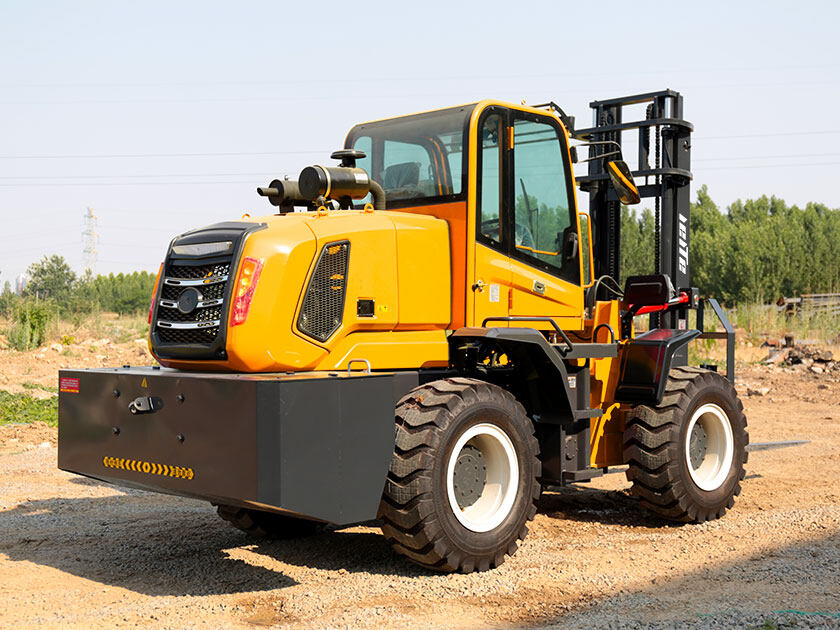

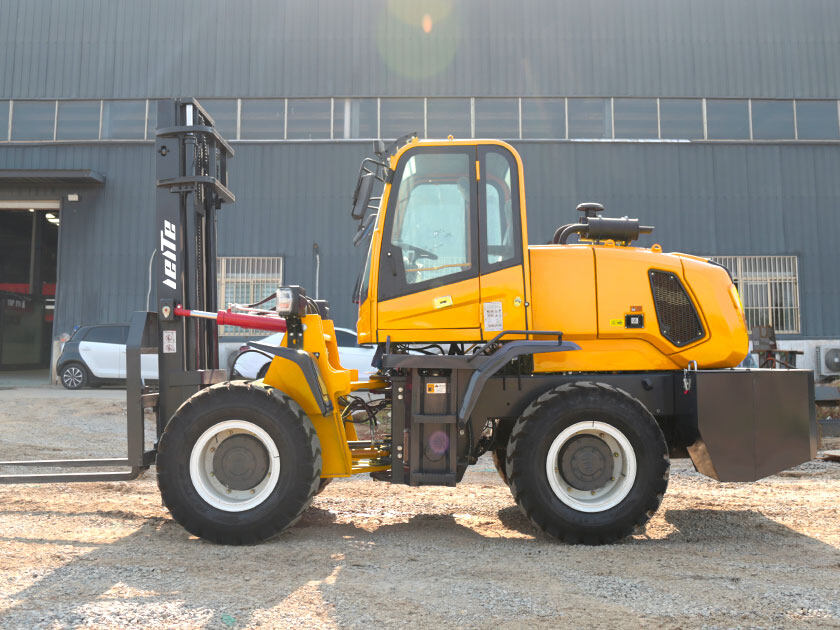

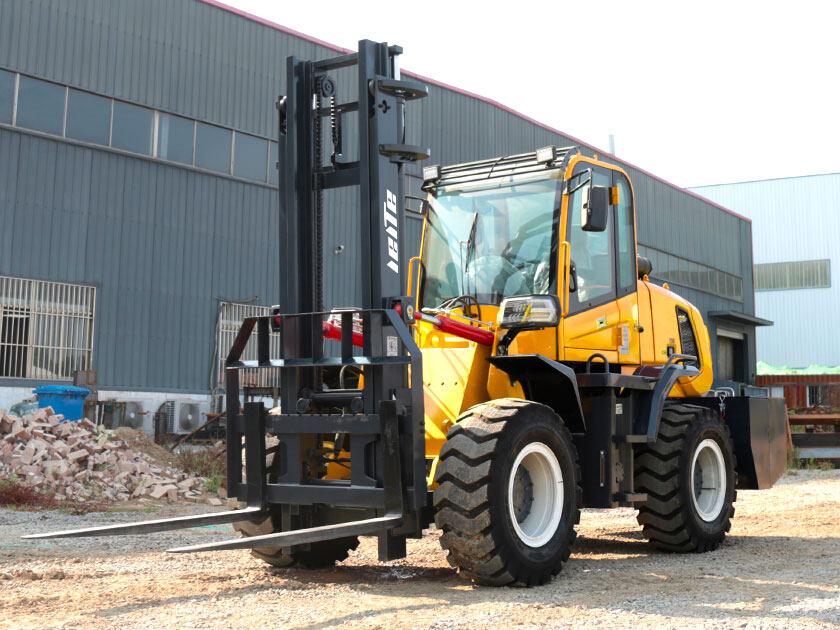

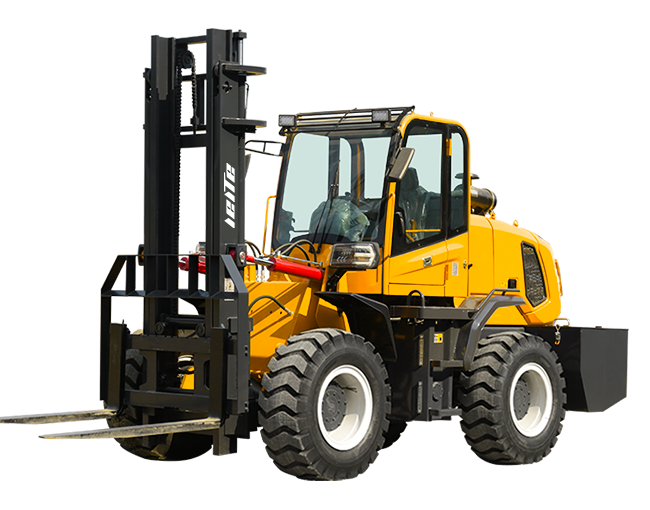

Overview LTY40 rough terrain forklift
Powerful, high performance, innovative design to help you work in a variety of applications
Benefits
Color and logo can be customized
Customize your exclusive work partner according to your ideas
Multiple brands of engines available
Recommend suitable engines for you according to the environmental protection requirements of your location
24-hour online customer service
We have professional engineers 24 hours a day to answer your questions one-on-one, and you can enjoy a 365-day warranty when placing an order
Overseas warehouse
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily
Introduction
Comfortable&spacious

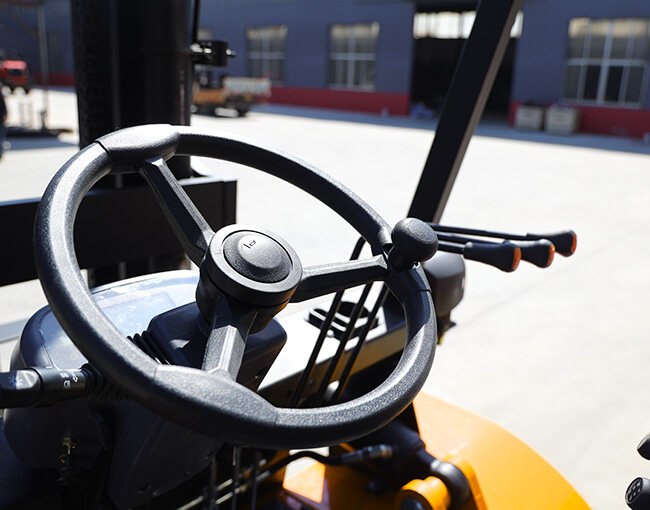

Easy to operate
Durability
Customizable
Excellent off-road performance

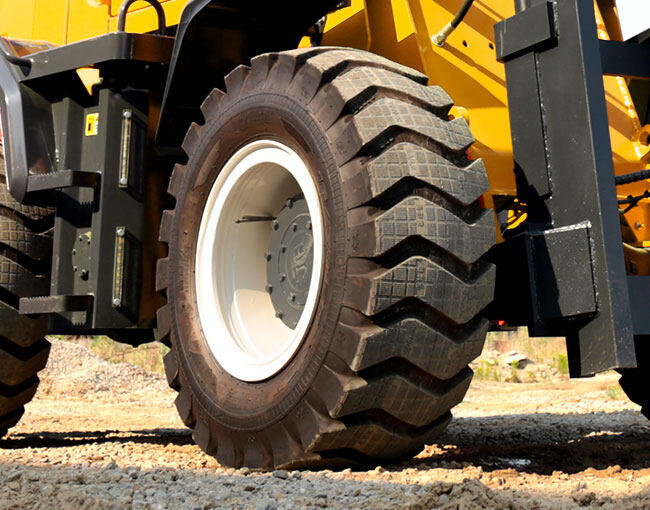

The large-diameter wide-base off-road tires have a large ground clearance to ensure good passability on various complex terrains. The all-wheel drive design, four-wheel drive, low-pressure wide-base off-road engineering vehicle special herringbone tires provide strong traction and off-road performance, and are suitable for various harsh environments.
Special offers
Specifications
Rated Lifting Weight
4000kg
Rated Lifting Height
4000-7000mm
Load Center Distance
600mm
Min.Turning Radius
3800mm
Max.Climbing Angle
≤38°
Min.Ground Clearance
380mm
Mast Forward/Backward Tilt Angle
10°/6°
Fastest Running Speed
42 km/h
Max.Hook Pulling Force
30.0KN
Engine Model
Xichai/Yunnei4102 (61-63kW)
Drive Mode
Four-Wheel Drive
Gearbox Model
265 High and Low Speed Large Pump Torque Converter
Axles
One-piece large wheel side cast steel axle
Tire Model
16/70-20 (Enhanced)
Wheelbase
2400mm
Width of Mast Steel
180mm
Fork Length
1520mm(Optional)
Machine Weight
5200kg
Machine Size
4400*1900*2800mm
