They are mainly used in civil engineering, mining, agriculture, ports and docks, and are widely used in various transportation, cargo loading and unloading operations. They have good mobility, will not damage the road surface, and are easy to operate, meeting the needs of multi-tasking in heavy construction sites.
Get a quote
View Video
Max.tipping load650kg
Bucket capacity0.15m³
Max.lifting weight400kg
Net power23HP/22HP

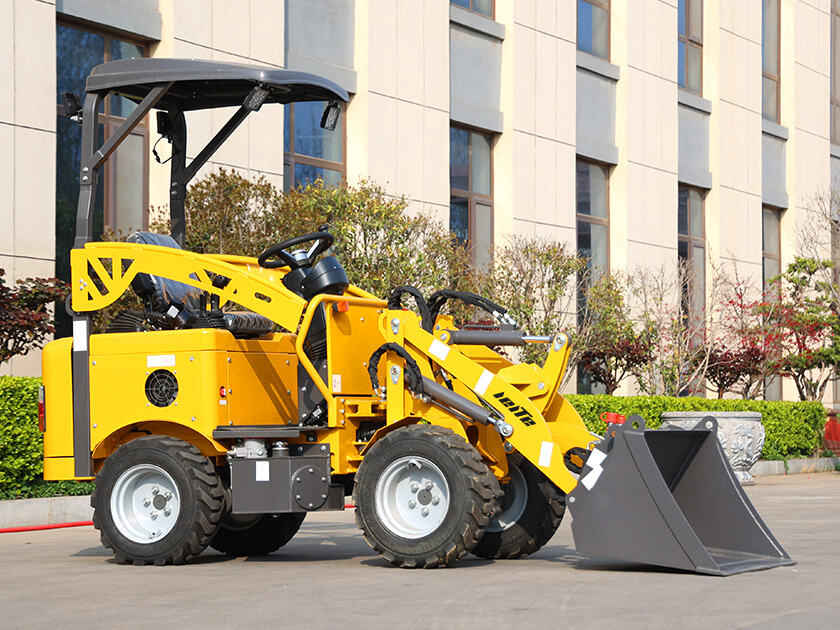

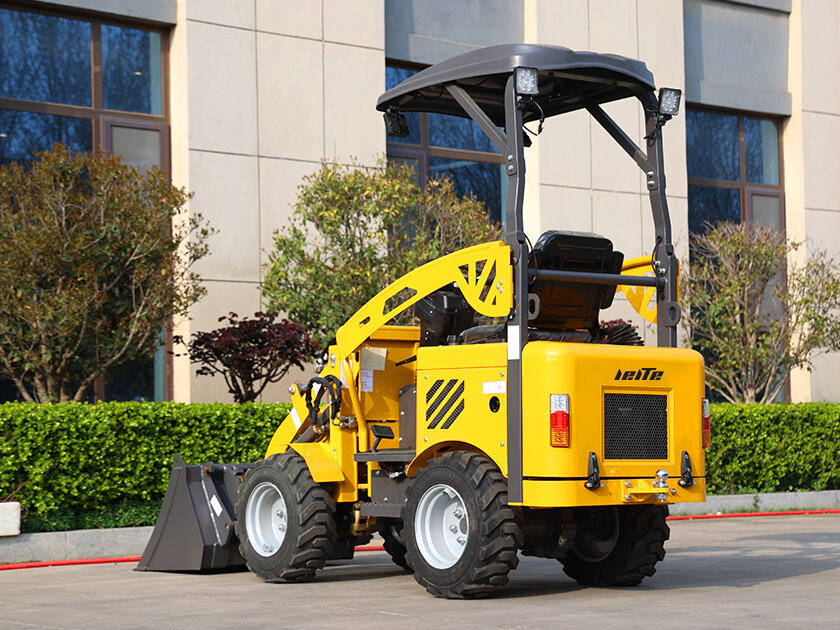

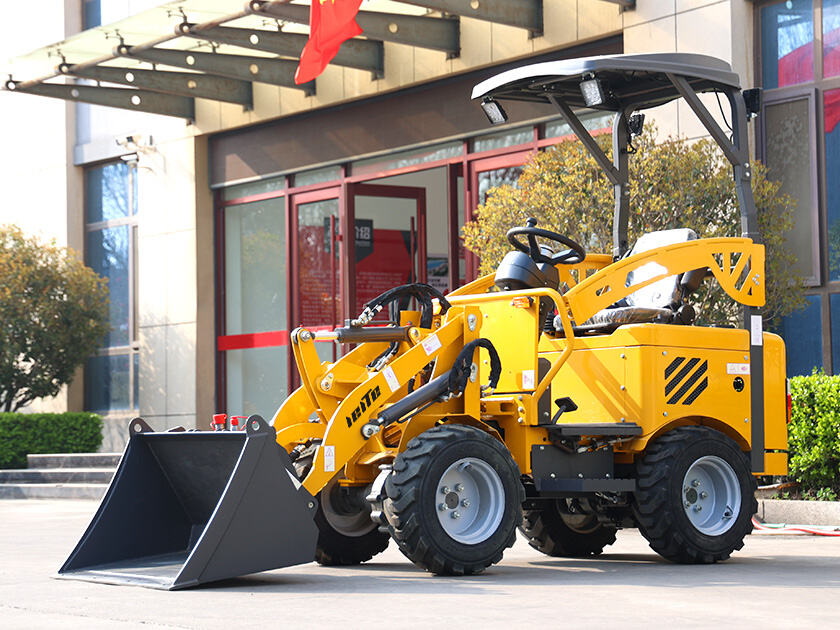

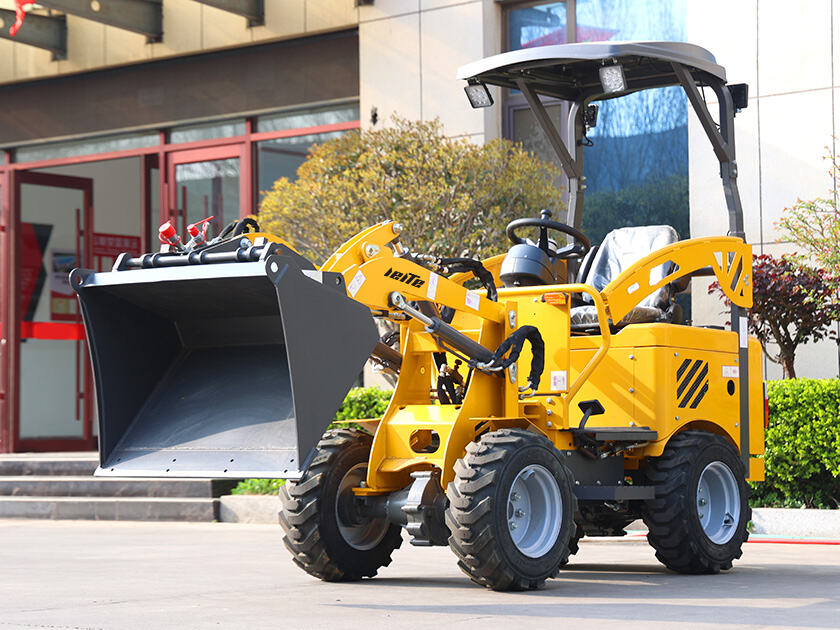

Overview LTZ-400 Wheel Loaders
Powerful, high performance, innovative design to help you work in a variety of applications
Benefits
Color and logo can be customized
Customize your exclusive work partner according to your ideas
Multiple brands of engines available
Recommend suitable engines for you according to the environmental protection requirements of your location
24-hour online customer service
We have professional engineers 24 hours a day to answer your questions one-on-one, and you can enjoy a 365-day warranty when placing an order
Overseas warehouse
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily
We have extensive shipping experience
Ensure your products are delivered safely to your doorstep.
Introduction
Power
Easy to operate
Certification

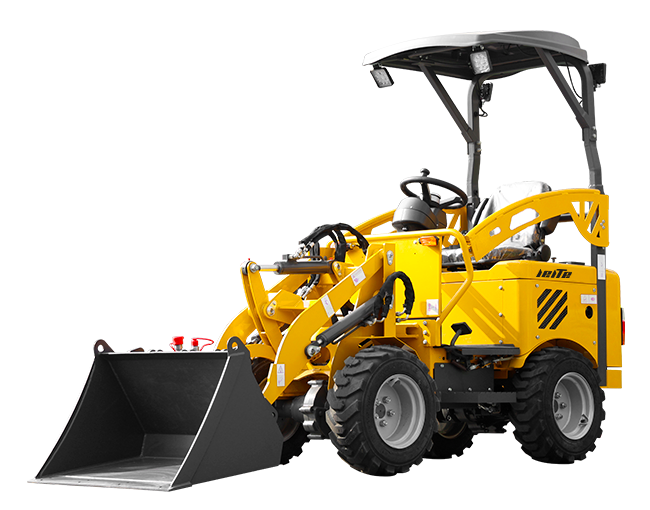

Flexibility, energy saving
Leite mini loaders typically feature a compact design that allows them to operate in confined spaces while providing powerful lifting and towing capabilities, thus increasing work efficiency and demonstrating significant advantages in the construction, agriculture, and municipal engineering sectors.
Special offers

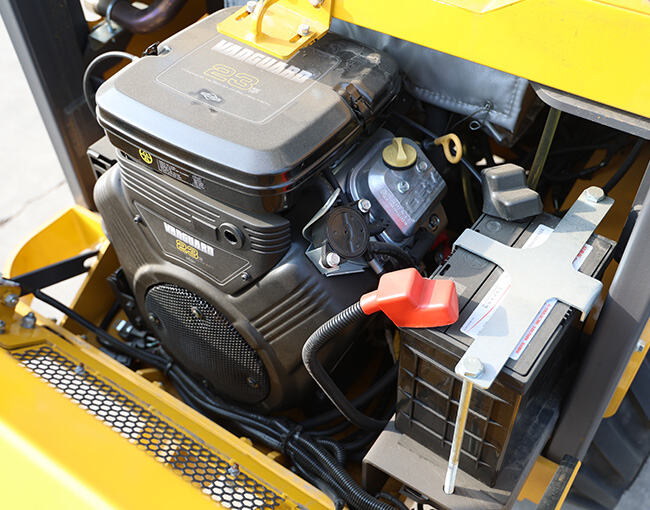

High performance, low fuel consumption
Engines from well-known brands are fuel-efficient, powerful, durable, and come with convenient after-sales service. If you need engines from other brands, please contact us, and we will recommend the most suitable engine for you.
Special offers

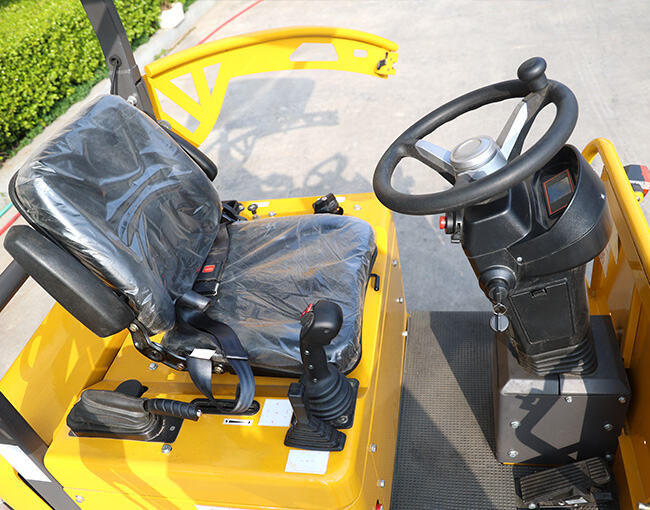

Ergonomic steering wheel and switches
The easy-to-operate steering wheel and optimized hydraulic control valves allow you to control the movement of every machine. The result is precise and predictable operation, along with rapid cycles, suitable for efficient loading, transportation, and other tasks.
Special offers
Multiple international certifications
Our products meet high standards of safety and reliability, and have obtained multiple international certifications such as CE and ISO. They meet safety and environmental regulations, reduce the risk of product failures or accidents during use, and further ensure product quality and user safety.
Special offers
Specifications
Max.tipping load
650kg
Bucket capacity
0.15m³
Max.lifting weight
400kg
Driving speed
0-10 km/h
Rated pressure
17Mpa
Rated flow rate
77 L/min
Steering angle
30°
Min.turning radius(inner/outer)
1903mm/2949mm
Weight
1069kg/1079kg/1072kg
Engine model
Briggs&Stratton 3864/Rato R740D/Honda GX690
Net power
23HP/23HP/22HP
Fuel consumption
≤6.7 L/h
Startup method
Electric start
Fuel tank
23L
Engine oil
1.7L/1.6L/1.9L
Hydraulic oil tank
18L
Operating voltage
12V
Battery capacity
36Ah
Tire model
23*8.5-12
Dimension
3210*1080*2250mm
