LT-D80

dumper
LT-D80dumper

EFFICIENT TRANSPORTATION
STRONG APPLICABILITY

Dumpers can easily access confined areas inaccessible to conventional excavators, solving construction challenges in specialized work environments. They are easy to transport—eliminating the need for large-scale hauling equipment-and can be quickly relocated between job sites, thereby reducing both transportation costs and logistical complexity.
Get a quote
View Video

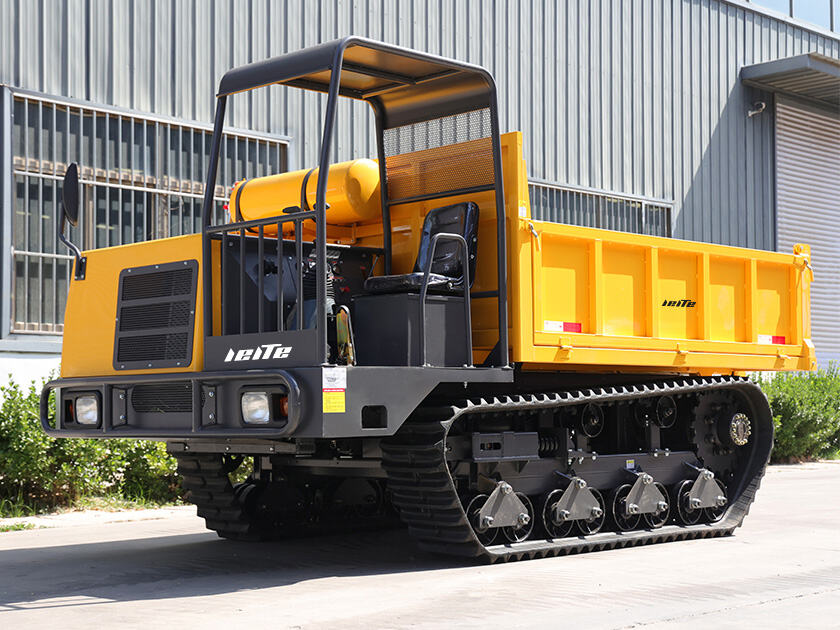

1.LT-D80-DUMPER

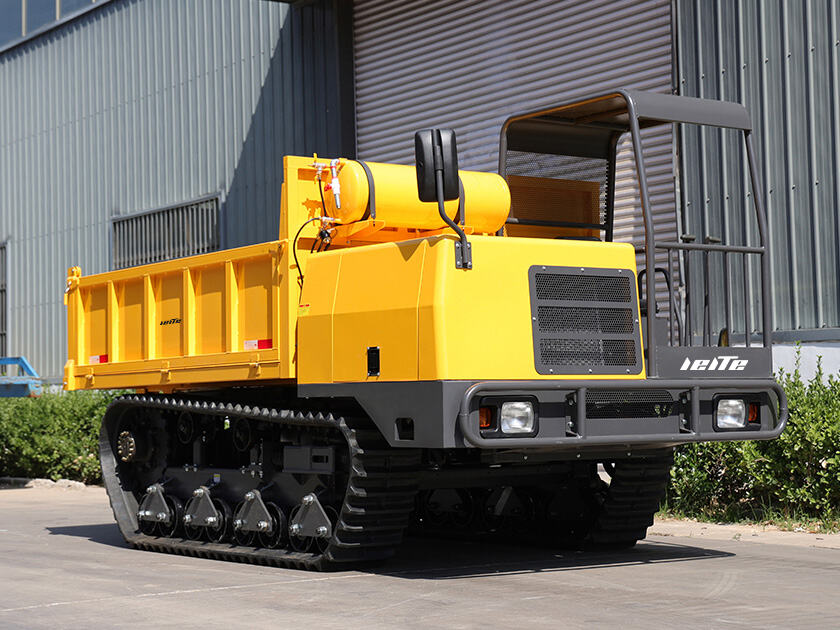

2.LT-D80-DUMPER

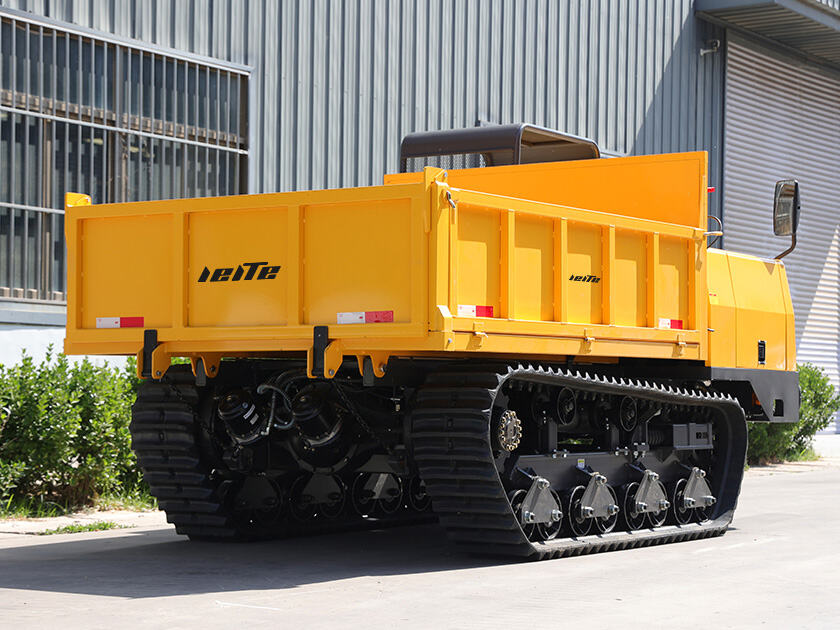

3.LT-D80-DUMPER

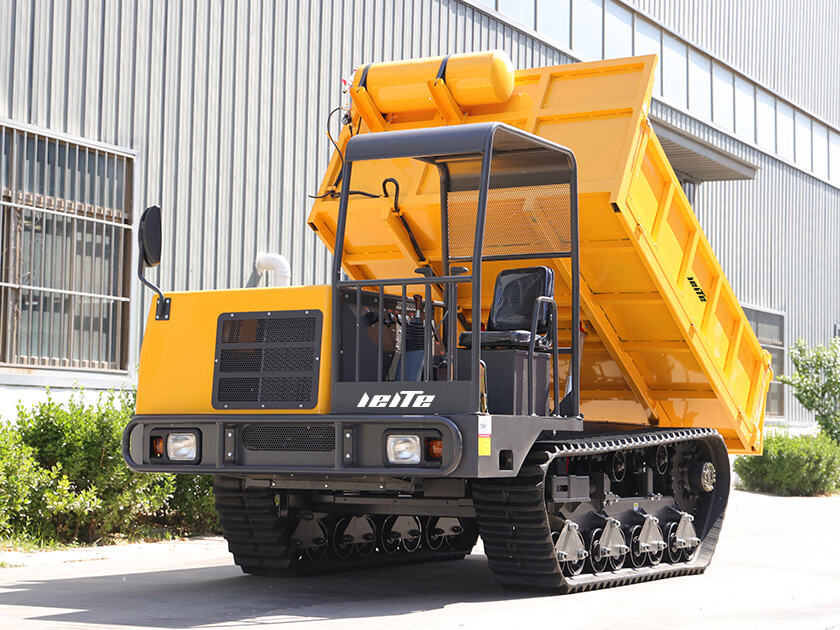

4.LT-D80-DUMPER

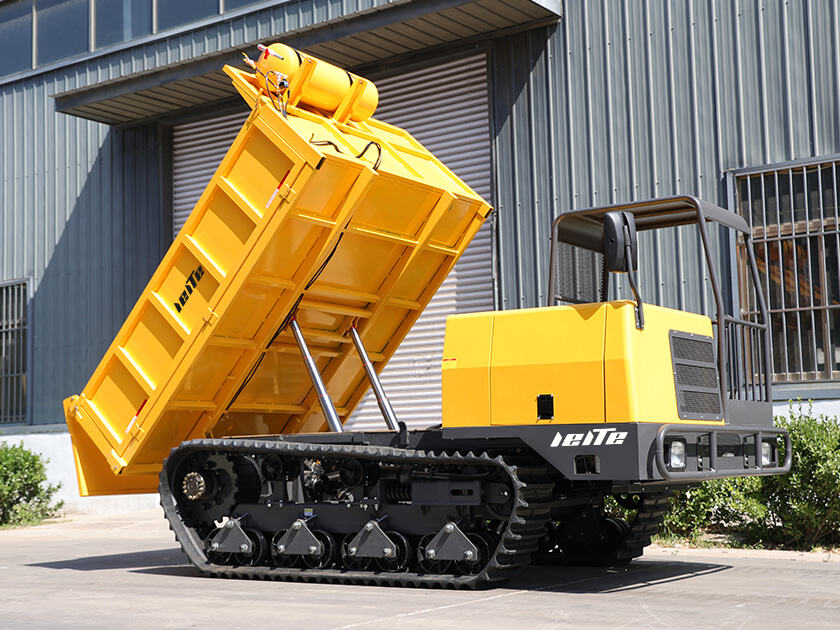

5.LT-D80-DUMPER
  • Machine weight4T
  • Cargo size2700*2050*600mm
  • Engine4105 turbocharged engine
  • Power118.8HP
Overview LT-D80 dumper

Benefits

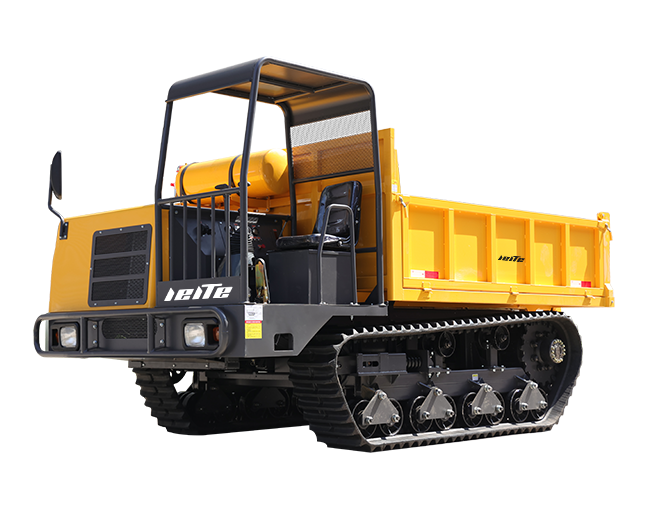

  • Dumping
  • Dumping

    Choose which side you want to dump from: rear . This means youcan safely dump into trenches without using much space. There's aremarkable dumping angle of 58°, so first-time safe dumping speedsup your site work. A mudguard prevents material from falling fromthe wagon and damaging hydraulic components or getting into theoperator area.

    Special offers

Specifications

Load8000KG
Engine4105 turbocharged engine
Power118.8HP
Gearbox540 gearbox
Track400-90-68/70
Travel speed35km/h
Vehicle dimensions4130*2060*2430mm
Carriage dimensions2700*2050*600mm
Drive axle145 Strengthened rear axle
Gear positionFront 5 Back 1
Braking methodAir brake
Minimum ground clearance330/350mm
Uphill grade35°

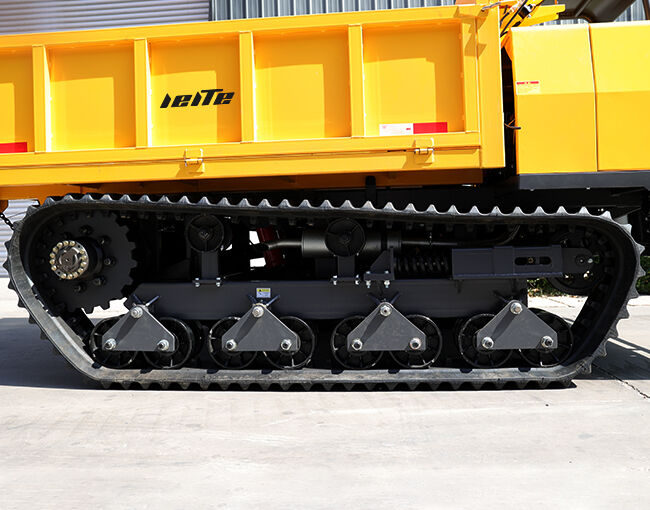

Number of track rollers8 sets of supporting wheels

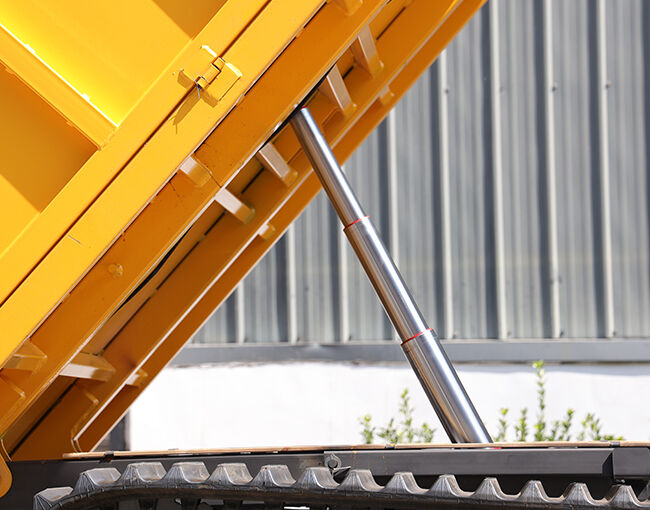

Hydraulic cylinderBig 900 double cylinder dump truck
Track roller bearings6308-2RS
Tensioner bearings6207-2RS
Machine weight4T
