- Rated Loading Weight350kg
- Bucket Capacity0.13m³
- EngineBriggs&Stratton/Runtong/Koop
- Dimension2386*1140*1895mm
Powerful, high performance, innovative design to help you work in a variety of applications
Customize your exclusive work partner according to your ideas
Recommend suitable engines for you according to the environmental protection requirements of your location
We have professional engineers 24 hours a day to answer your questions one-on-one, and you can enjoy a 365-day warranty when placing an order
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily

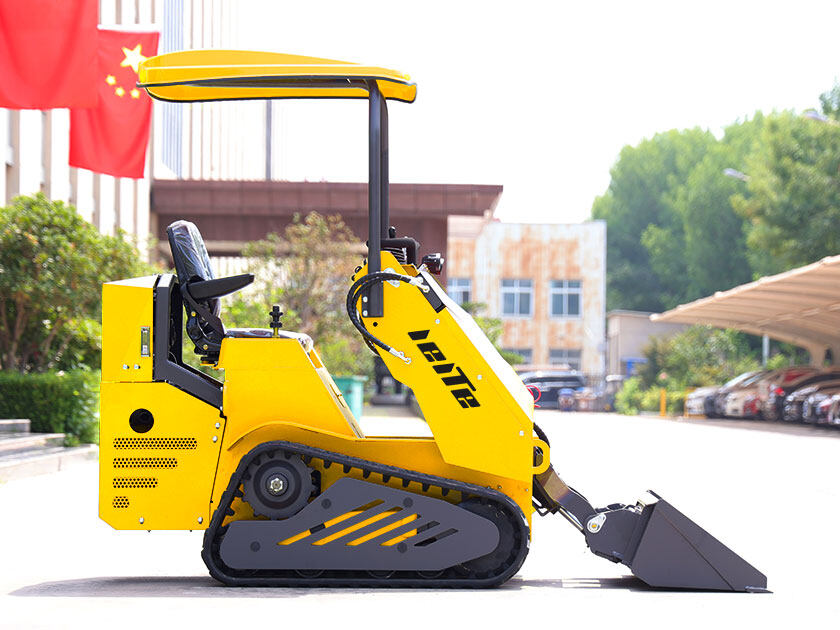

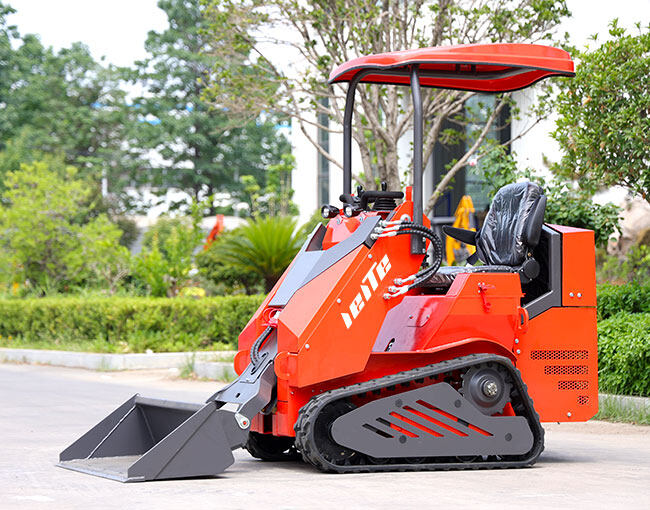

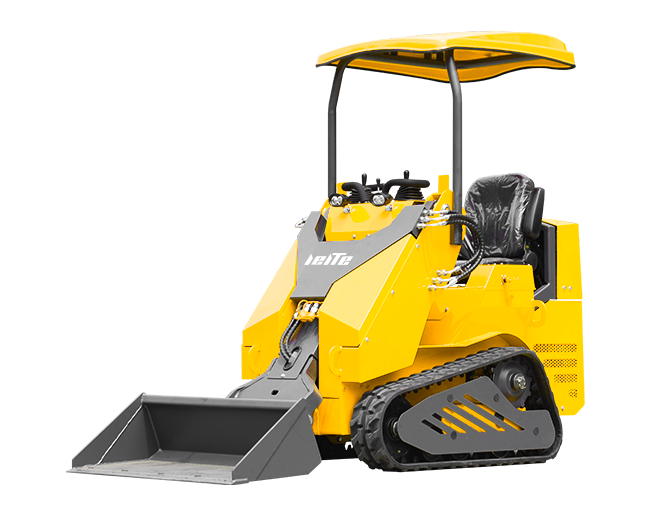

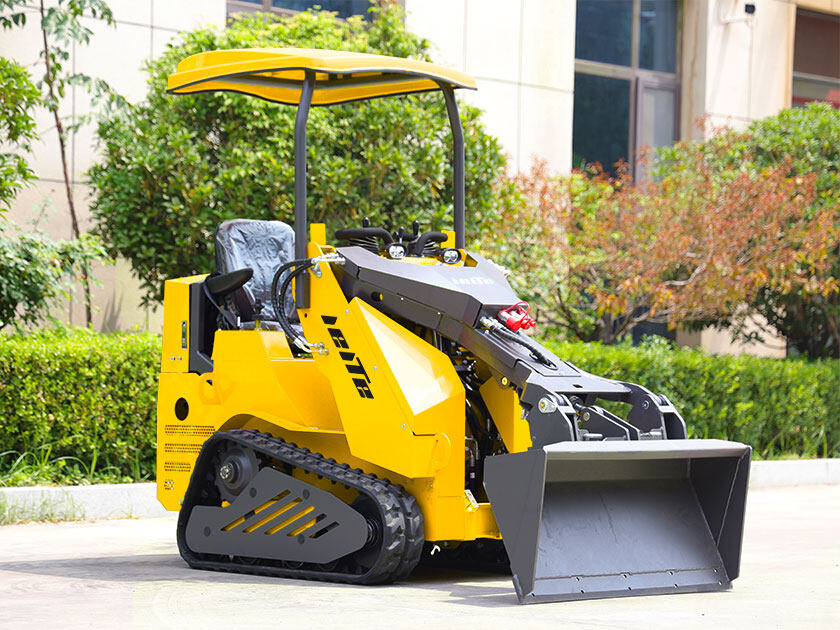

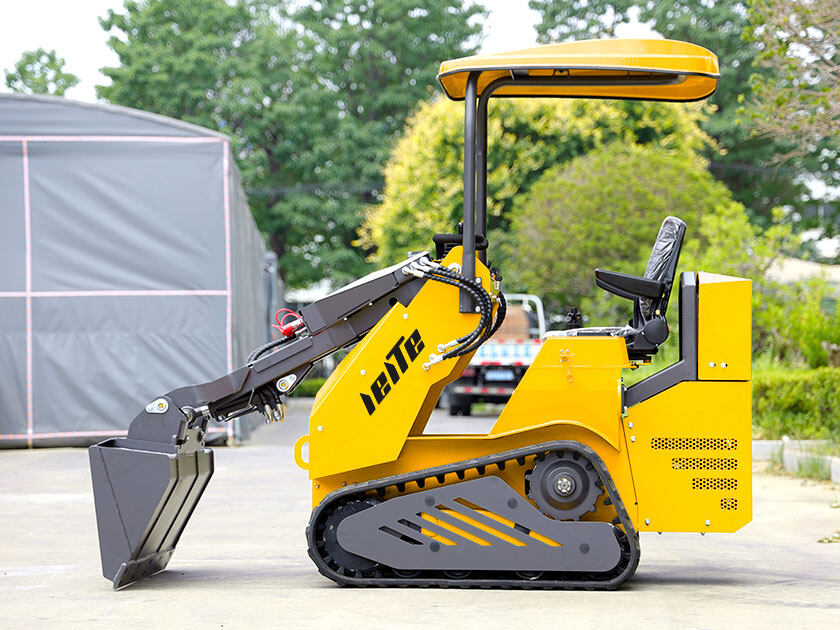

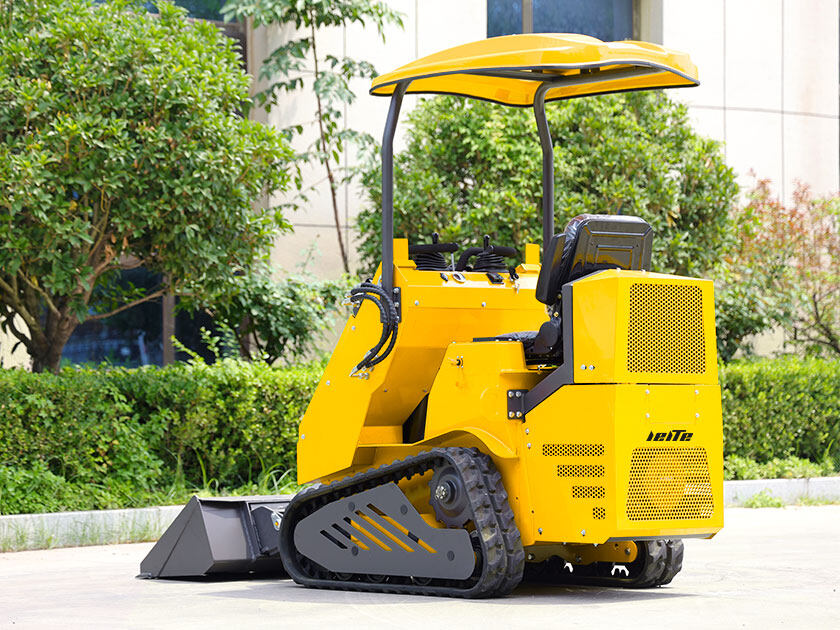

The Mini skid steer loader features a compact design that allows it to maneuver easily in tight spaces, making it suitable for applications such as garden maintenance, road repairs, small construction sites, and family farms. By quickly replacing different attachments, it can be transformed into a versatile tool to meet the needs of various work scenarios.
Rated load weight | 350kg |
Bucket capacity | 0.13m³ |
Max.lifting force | 600kg |
Working speed | 0-4.5 km/h |
Rated pressure | 18.5Mpa |
Lifting time | 4.7s |
Falling time | 2.9s |
Tipping time | 2.1s |
Climbing ability | 30% |
Operating weight | 960kg/950kg/980kg |
Engine | Briggs&Stratton 25T2/Runtong R420/Koop 192F |
Engine type | Gasoline/Gasoline/Diesel, single cylinder, air-cooled |
Output power | 13.5HP/15HP/10.3HP |
Fuel consumption | ≤3.8/≤4.2/≤2.3 L/h |
Fuel tank | 6.6L/6.7L/5.5L |
Engine oil | 1.1L/1.1L/1.65L |
Hydraulic oil tank | 23L |
