- Operating weight5000kg
- Maximum dig depth3080mm
- Net power21.4kW
- Bucket capacity0.12m³
Powerful, high-performance, compact design to help you work in a variety of applications
Customize your exclusive work partner according to your ideas
Recommend suitable engines for you according to the environmental protection requirements of your location
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily

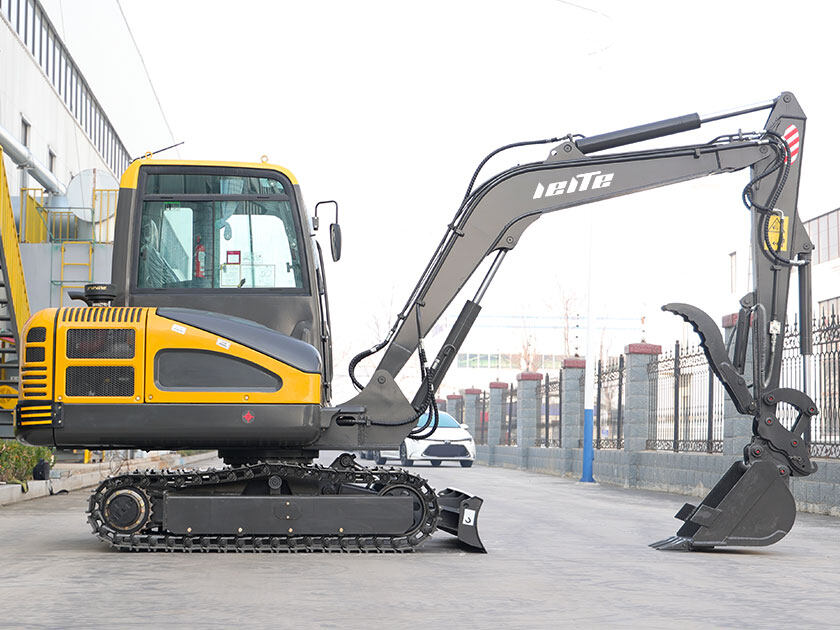

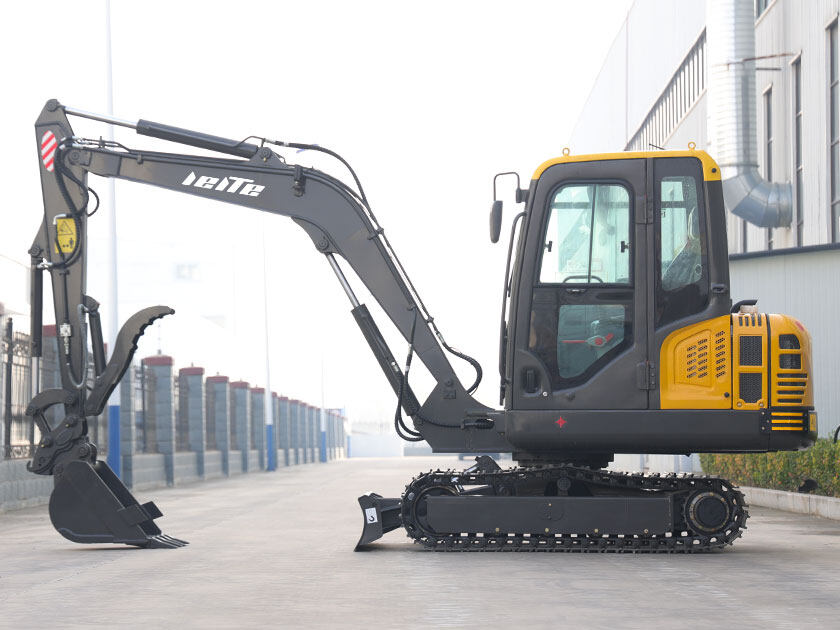

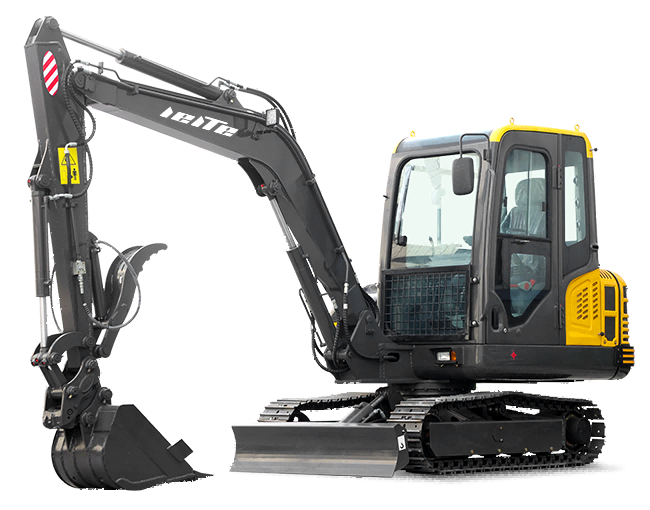

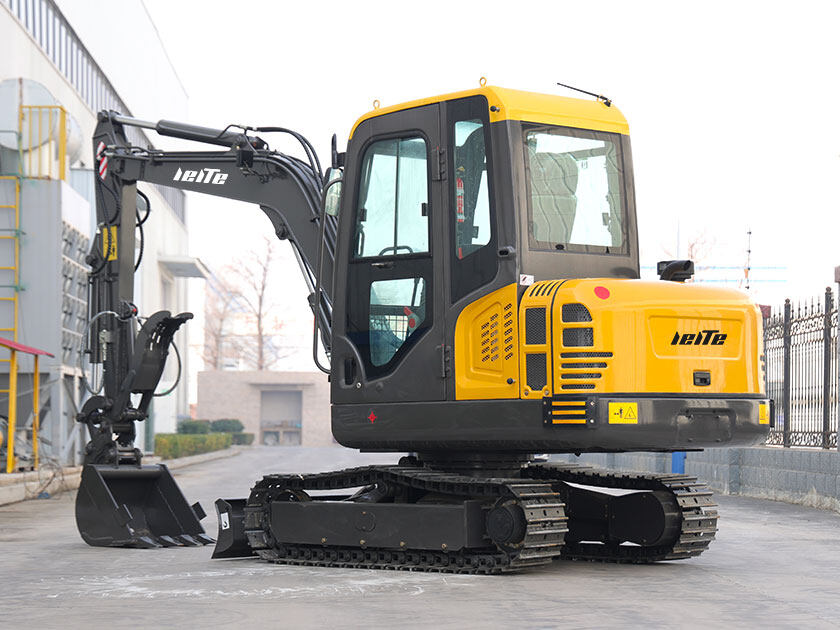

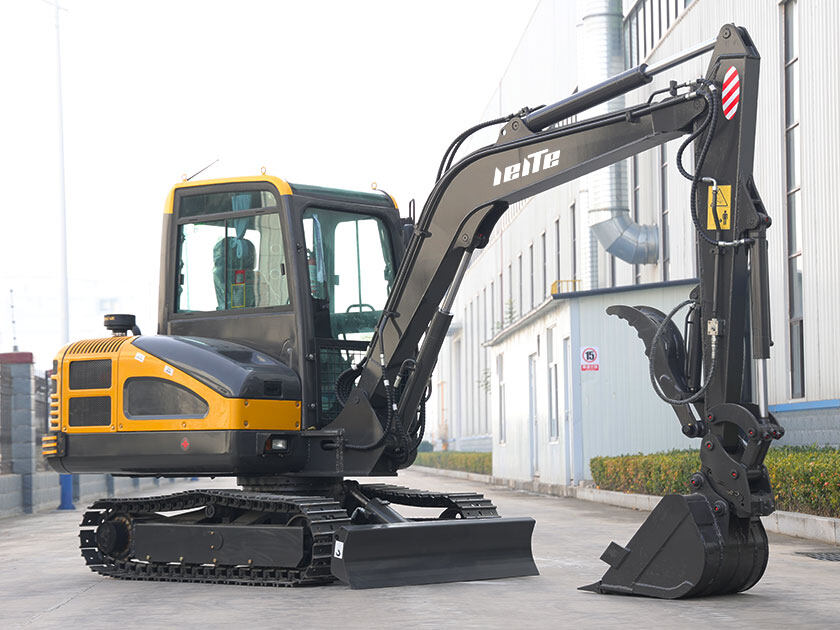

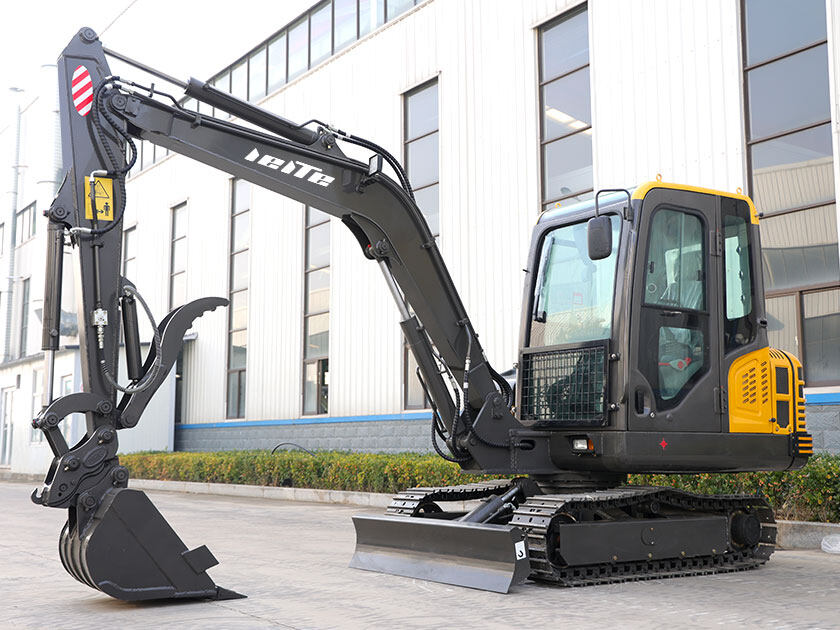

Vote Mini excavators are precision engineered using components and systems from leading and proven sources. The LT1050 is designed to be rugged and reliable to extend uptime, reduce operating costs and increase productivity.And a variety of auxiliary tools can be selected to achieve multiple uses of one machine.

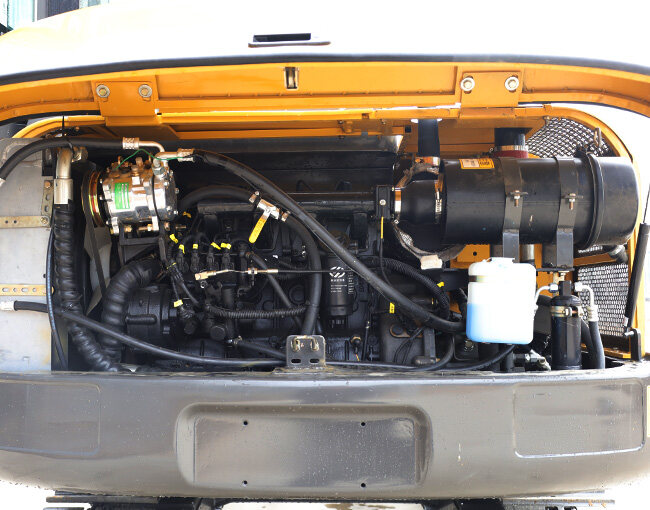

Model | Yanmar 3TNV88-B |
Power | 21.4kw/2400rpm |
Operating weight | 5000 kg |
Bucket capacity | 0.12m³ |
Wheelbase | 1721 mm |
Stick length | 1350 mm |
Boom length | 2560 mm |

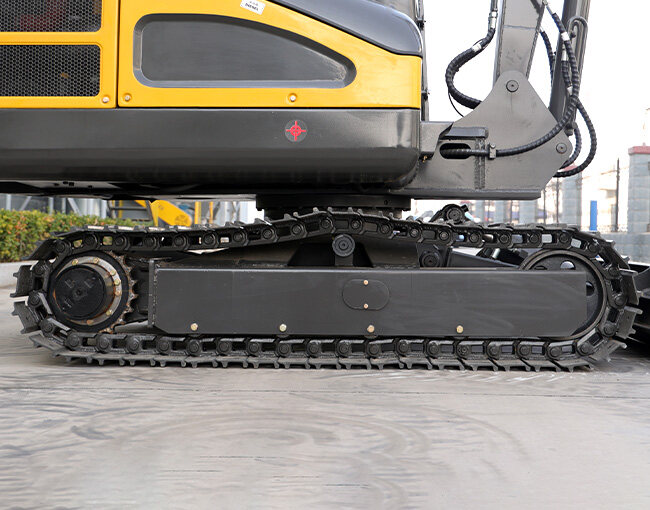

Track width | 300 mm |
Length*Width*Height | 4985*1740*2535 mm |
Walk speed | 3.86 km/h |
Fuel tank capacity | 40L |
Gradeability | 30° |
Turning radius | 2056 mm |
Max.digging height | 5050 mm |
Max.dumping height | 3650 mm |
Max.digging depth | 3080 mm |
Min.ground clearance | 300 mm |
Min.turning radius of tail | 870 mm |
Max.digging radius | 5325 mm |
