Electric forklifts use batteries as their power source, do not emit exhaust gas, have little environmental pollution, and reduce the harm of the working environment to the human body. The steering system, hydraulic control system, and braking system of electric forklifts are all controlled by electrical signals, which reduces the labor intensity of operators and improves work efficiency.
Get a quote
View Video
Power Modelead-acid battery
Rated Capacity1000kg
Overall Maximum Lift Height3000mm

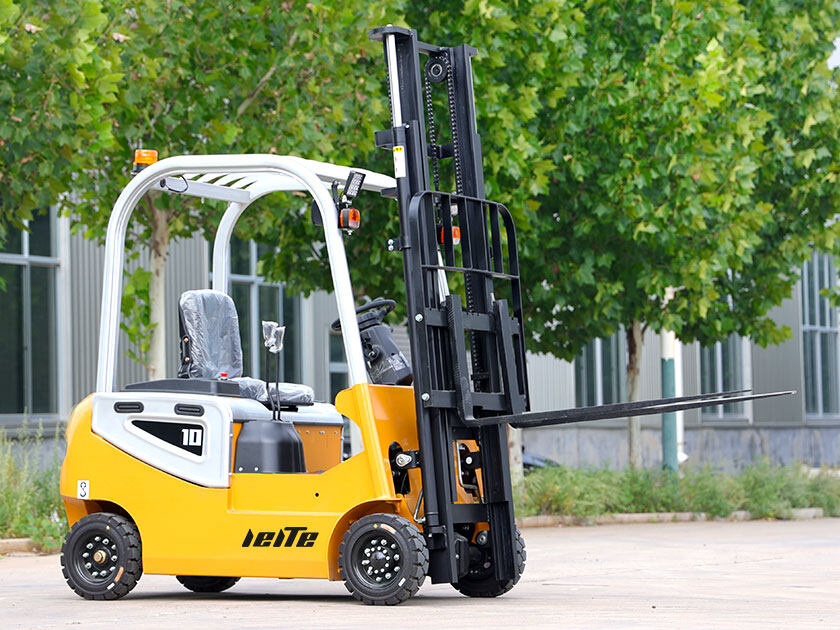

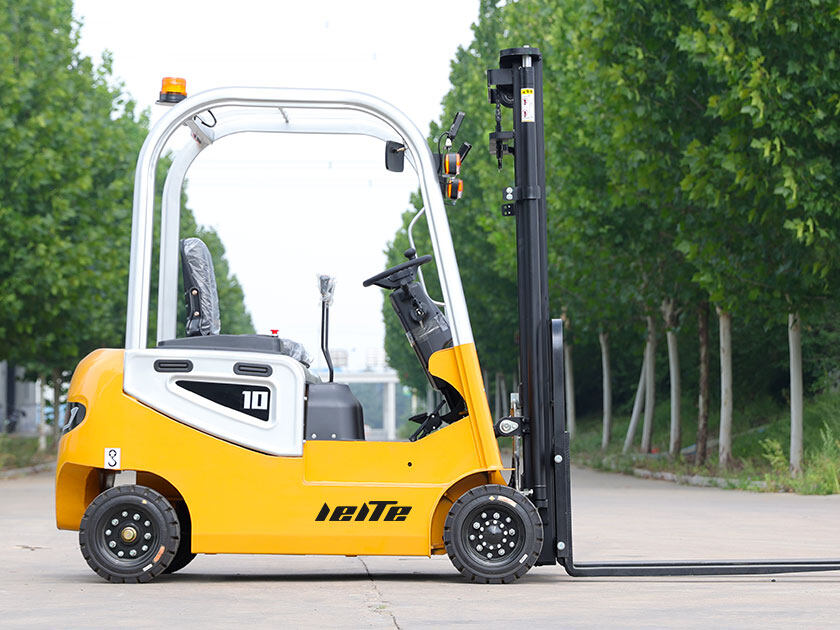

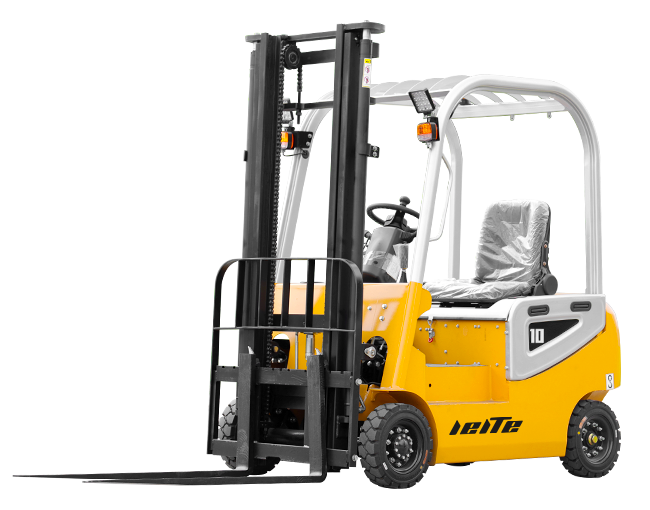

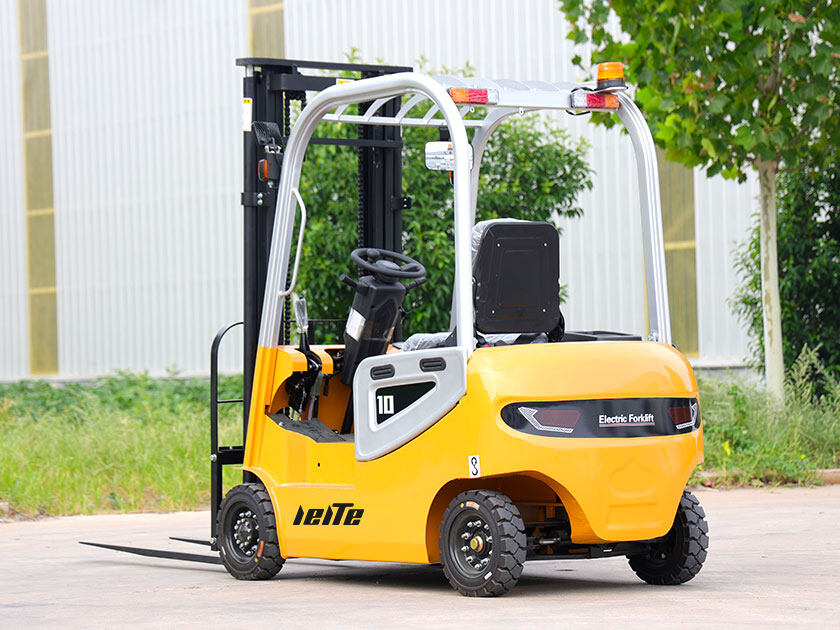

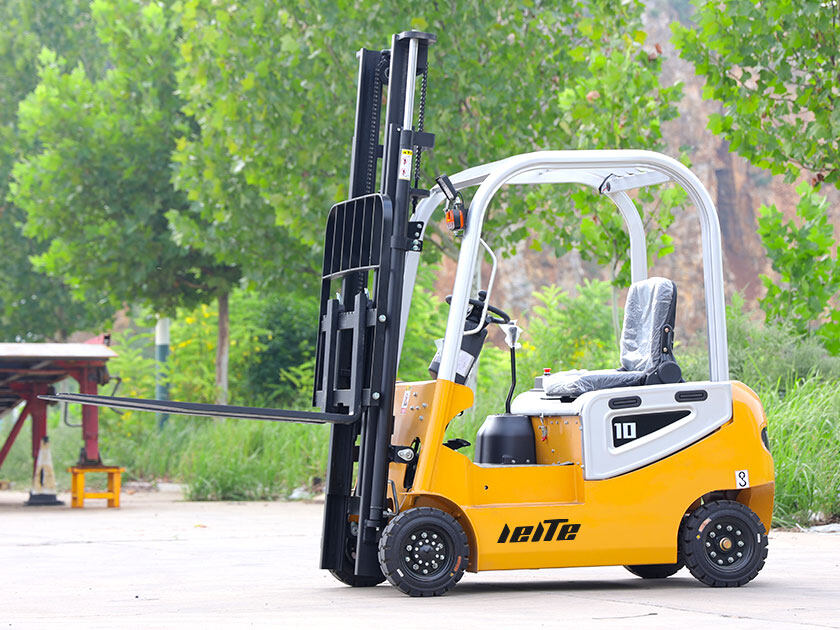

Overview LTE10 electric forklift
Benefits
Benefits

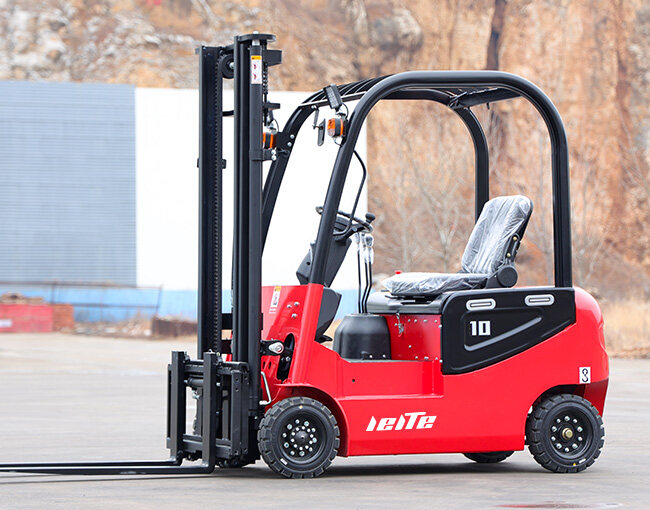

Color and logo can be customized.
Customize your exclusive work partner according to your ideas
Multiple brands of engines available
Recommend suitable engines for you according to the environmental protection requirements of your location
24-hour online customer service
We have professional engineers 24 hours a day to answer your questions one-on-one, and you can enjoy a 365-day warranty when placing an order
Overseas warehouse
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily
Stability
Customization
Trusted
Beautiful and practical
we adopt high-precision steel-iron counterweight, which is treated by electrophoretic coating and automotive-grade industrial treatment, with strong anti-rust ability.
Special offers
Specifications
Model
LTE10-D
Driving Mode
Seated
Rated Capacity
1000KG
Load Center Distance
500mm
Power Mode
Lead-Acid Battery
Wheel Base
1330mm
Performance
Travel Speed, Laden/Unladen
km/h
Lifting Speed, Laden/Unladen
220/230mm/s
Lowering Speed, Laden/Unladen
550mm/s
Maximum Gradeability, Full/Empty
15/20%
Weight
Service Mass(with battery)
1530KG
Axle Load:Unloaded, Front/Rear
KG
Axle Load:Loaded, Front/Rear
KG
Battery Voltage / Nominal Capacity
60V/120Ah
Battery Weight
150KG
Electrical Configuration
Drive Motor Power-60 Minutes
5 Permanent Magnet SynchronizationKW
Lift Motor Power-15 Minutes
4.5 Permanent Magnet SynchronizationKW
Drive Motor Controlling Mode
MOSFET/PMSM
Lifting Motor Controlling Mode
MOSFET/PMSM
Service Brake/Parking Brake
Hydraulic/Mechanical

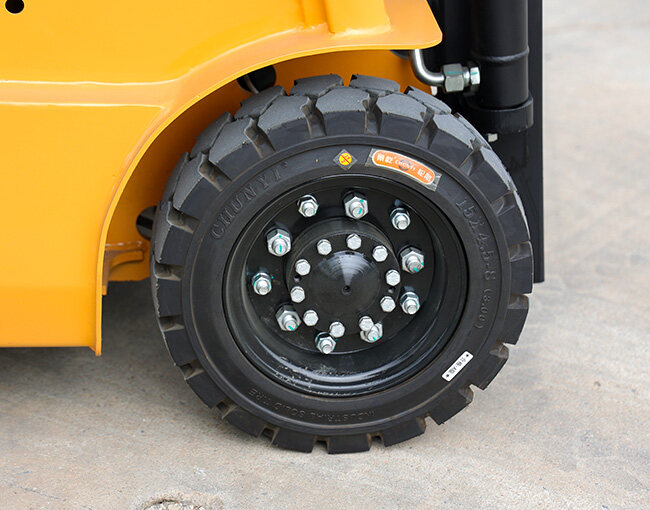

Tyre
Tyre Type
Solid Tire
Wheels Number (front/rear)
2月2日
Front Track
910mm
Rear Track
865mm
Tyre (front)
15*4 1/2-8
Tyre (rear)
15*4 1/2-8
Size
Front Overhang
308mm
Height, Mast Retraction
2017mm
Free Lift Height
/mm
Overall Maximum Lift Height
3000mm
Height,Mast Extended
3957mm
Overhead Guard Height
1847mm
Lateral Fork Adjustment (Outside Of Forks)Max/Min
970/200mm
Fork Size(L*W*T)
32*100*1070mm
Truck Body Length(Fork Excluded)
1980mm
Truck Body Width
1020mm
Turning Radius
2050mm
Ground Clearance Under Mast
77mm
Ground Clearance At Center Of Wheelbase(Laden)
100mm
Width Of Aisle Right-Angle Stacking
3400mm
(pallet 1000x1000mm clearance 200mm)
Width Of Aisle Right-Angle Stacking
3650mm
(pallet 1000x1000mm clearance 200mm)
