Electric forklifts use batteries as their power source, do not emit exhaust gas, have little environmental pollution, and reduce the harm of the working environment to the human body. The steering system, hydraulic control system, and braking system of electric forklifts are all controlled by electrical signals, which reduces the labor intensity of operators and improves work efficiency.
Get a quote
View Video
Power Modelead-acid battery
Rated Capacity1500kg
Overall Maximum Lift Height3000mm

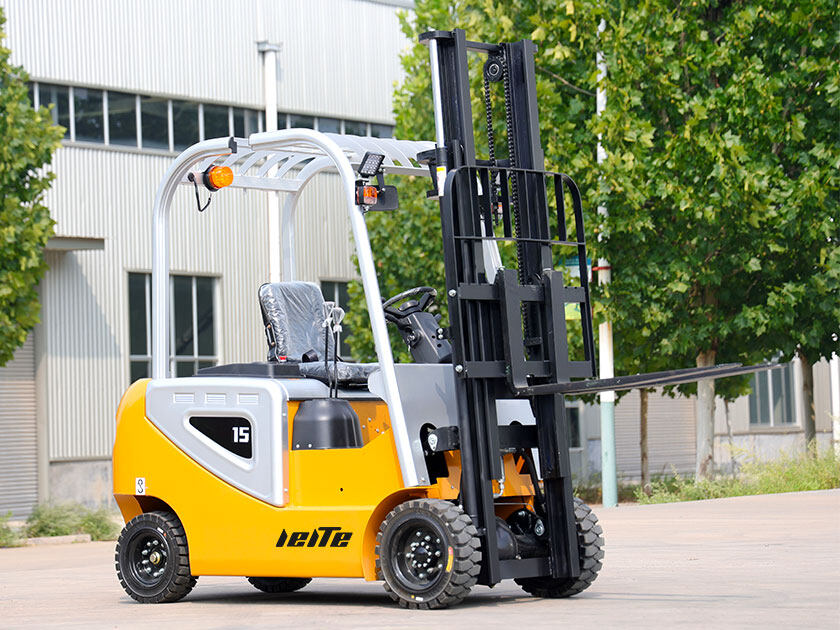

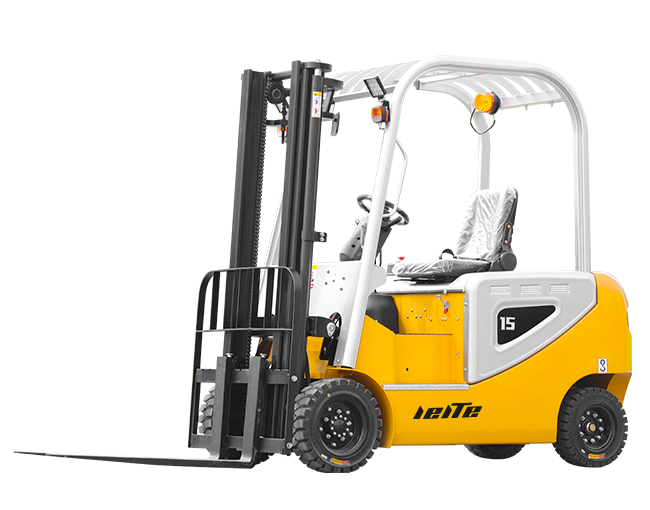

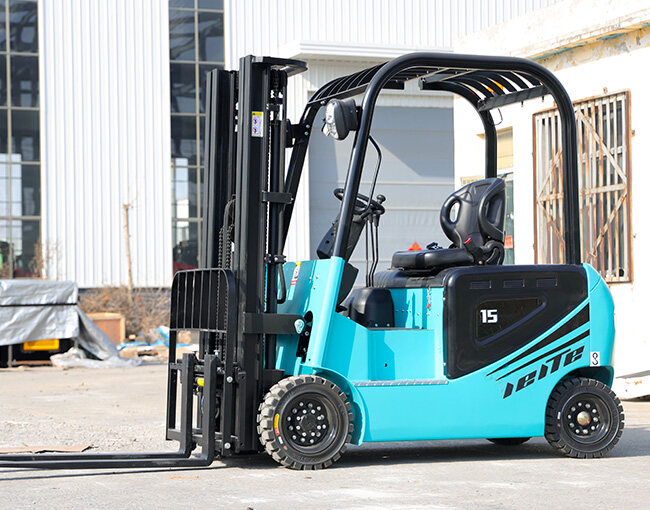

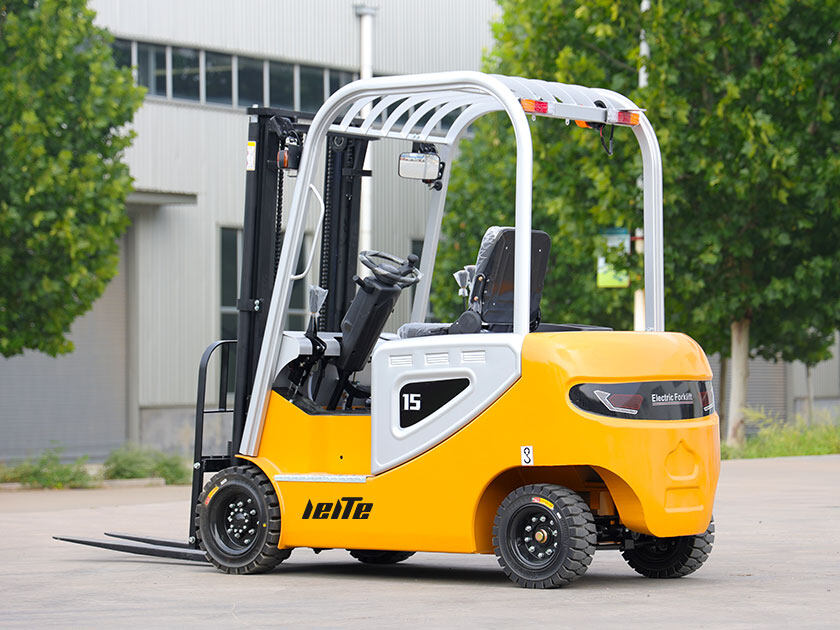

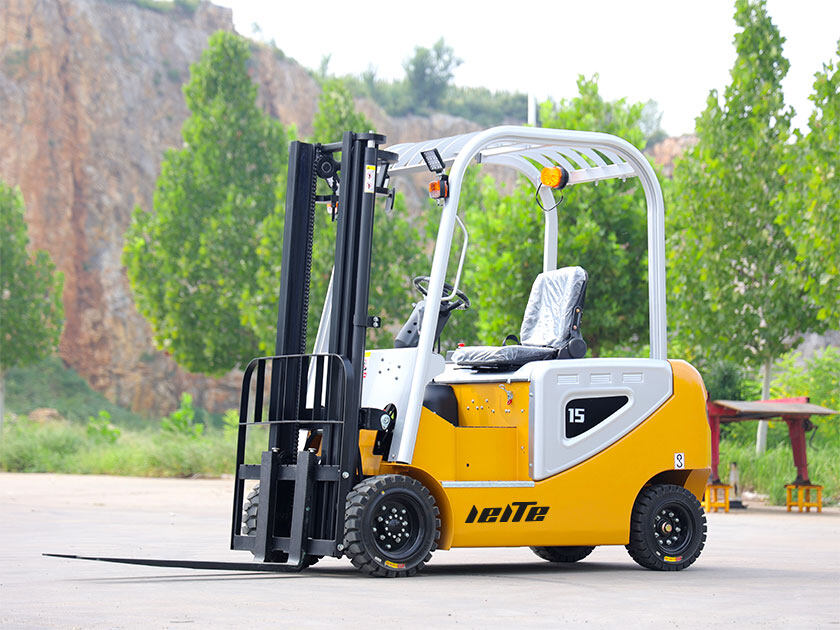

Overview LTE15 electric forklift
Benefits
Benefits
Color and logo can be customized.
Customize your exclusive work partner according to your ideas
Multiple brands of engines available
Recommend suitable engines for you according to the environmental protection requirements of your location
24-hour online customer service
We have professional engineers 24 hours a day to answer your questions one-on-one, and you can enjoy a 365-day warranty when placing an order
Overseas warehouse
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily
Stability
Customization
Trusted
Beautiful and practical
we adopt high-precision steel-iron counterweight, which is treated by electrophoretic coating and automotive-grade industrial treatment, with strong anti-rust ability.
Special offers
Specifications
Model
LTE15-D
Driving Mode
Seated
Rated Capacity
1500KG
Load Center Distance
500mm
Power Mode
Lead-Acid Battery
Wheel Base
1550mm
Performance
Travel Speed, Laden/Unladen
9/9.5km/h
Lifting Speed, Laden/Unladen
200/220mm/s
Lowering Speed, Laden/Unladen
550mm/s
Maximum Gradeability, Full/Empty
15/20%
Weight
Service Mass(with battery)
2150KG
Axle Load:Unloaded, Front/Rear
KG
Axle Load:Loaded, Front/Rear
KG
Battery Voltage / Nominal Capacity
60V/140V/Ah
Battery Weight
165KG
Electrical Configuration
Drive Motor Power-60 Minutes
5 Permanent Magnet SynchronizationKW
Lift Motor Power-15 Minutes
4.5 Permanent Magnet SynchronizationKW
Drive Motor Controlling Mode
MOSFET/PMSM
Lifting Motor Controlling Mode
MOSFET/PMSM
Service Brake/Parking Brake
Hydraulic/Mechanical

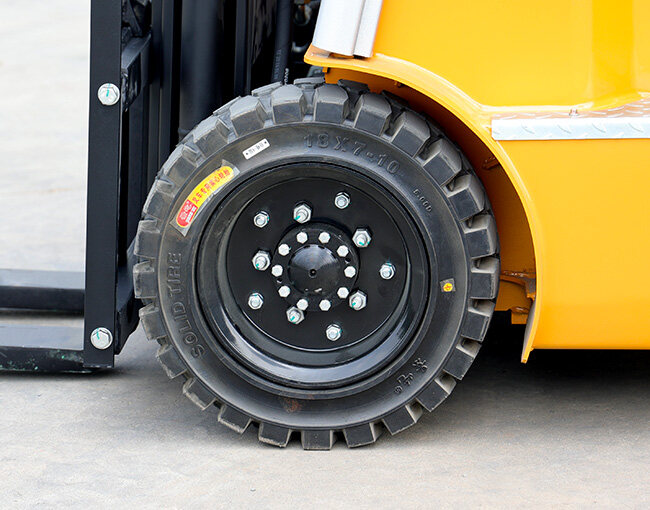

Tyre
Tyre Type
Solid Tire
Wheels Number (front/rear)
Front Track
945mm
Rear Track
880mm
Tyre (front)
18*7-10
Tyre (rear)
15*4 1/2-8
Size
Front Overhang
325mm
Tilt Of The Mast,Front/Rear
°
Height, Mast Retraction
2030mm
Free Lift Height
/
Overall Maximum Lift Height
3000mm
Height,Mast Extended
4055mm
Overhead Guard Height
2110mm
Lateral Fork Adjustment (Outside Of Forks)Max/Min
970/200mm
Fork Size(L*W*T)
32*100*1070mm
Truck Body Length(Fork Excluded)
2230mm
Truck Body Width
1096mm
Turning Radius
2200mm
Ground Clearance Under Mast
88mm
Ground Clearance At Center Of Wheelbase(Laden)
110mm
Width Of Aisle Right-Angle Stacking
3750mm
(pallet 1000x1000mm clearance 200mm)
Width Of Aisle Right-Angle Stacking
3950mm
(pallet 1000x1000mm clearance 200mm)
