Electric forklifts use batteries as their power source, do not emit exhaust gas, have little environmental pollution, and reduce the harm of the working environment to the human body. The steering system, hydraulic control system, and braking system of electric forklifts are all controlled by electrical signals, which reduces the labor intensity of operators and improves work efficiency.
Get a quote
View Video
Power Modelead-acid battery
Rated Capacity3000kg
Overall Maximum Lift Height3000mm

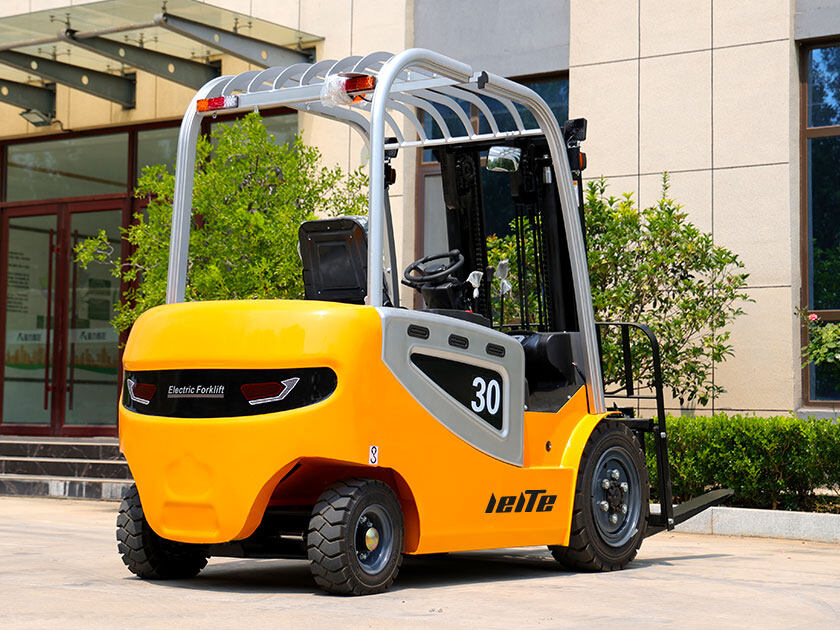

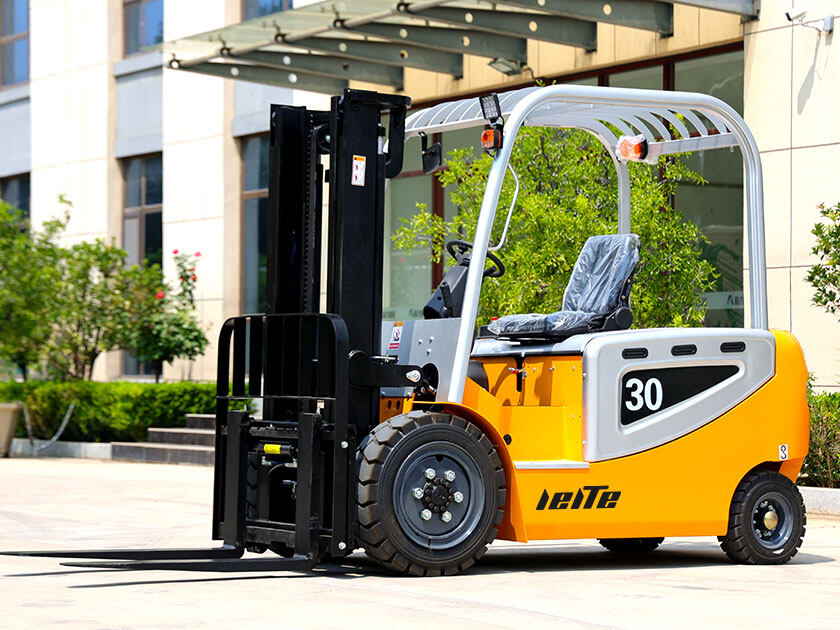

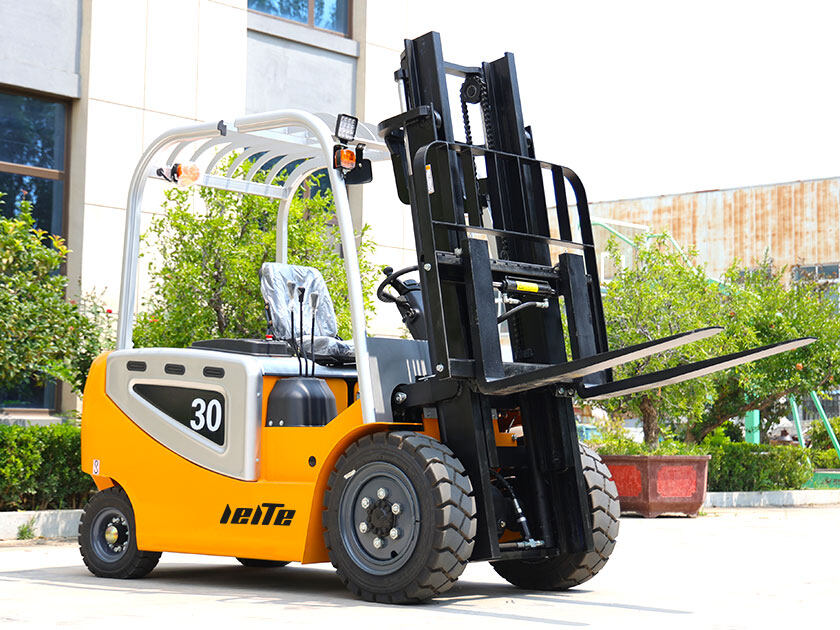

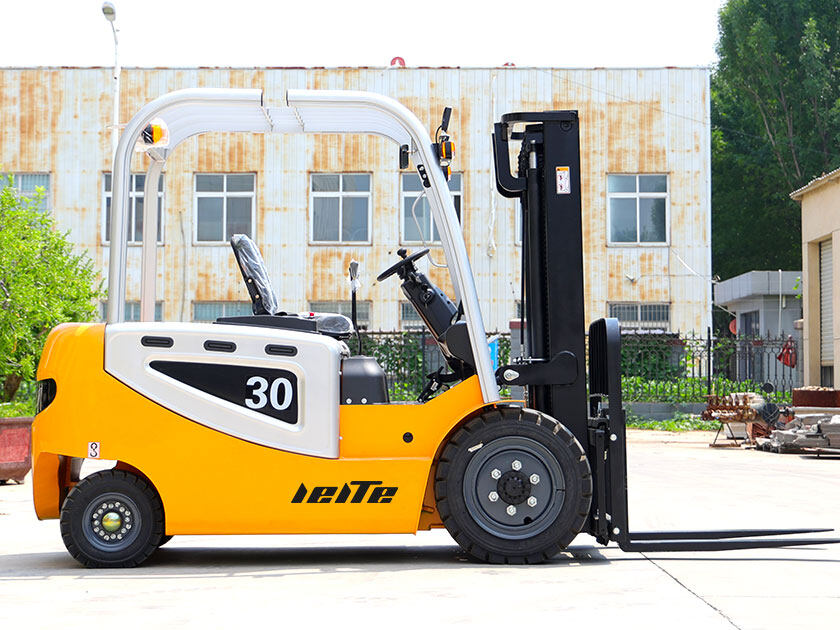

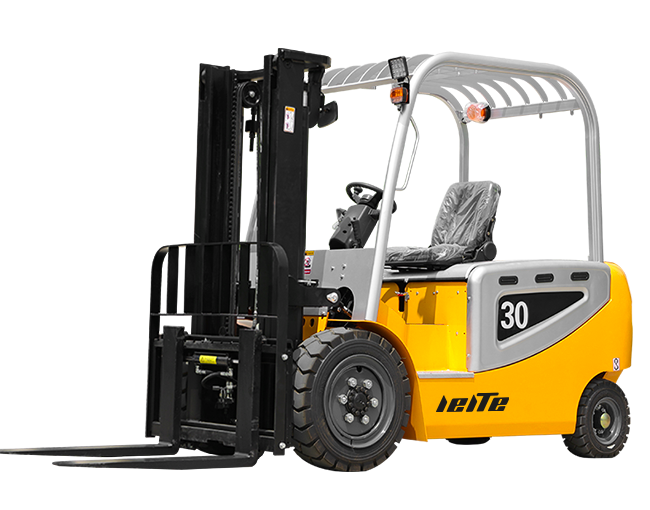

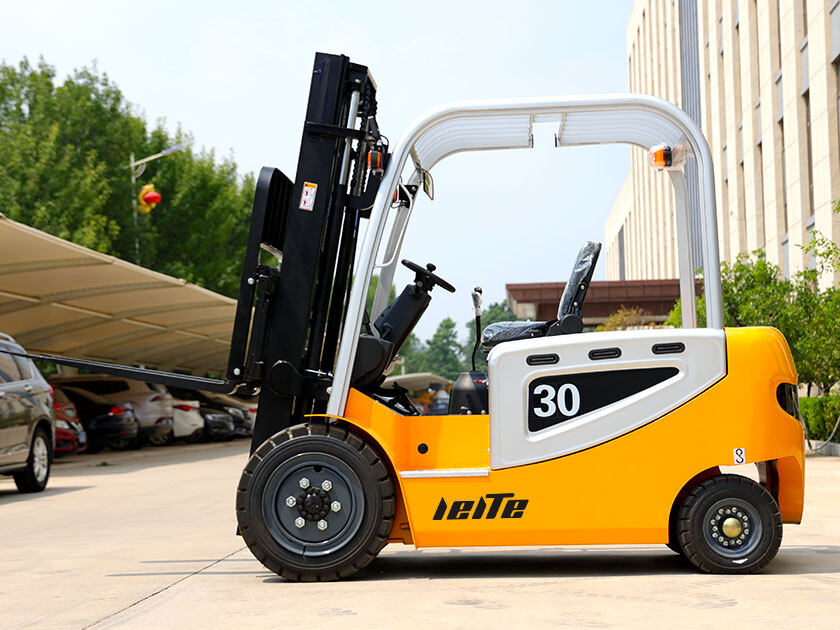

Overview LTE30 electric forklift
Benefits
Benefits
Color and logo can be customized.
Customize your exclusive work partner according to your ideas
Multiple brands of engines available
Recommend suitable engines for you according to the environmental protection requirements of your location
24-hour online customer service
We have professional engineers 24 hours a day to answer your questions one-on-one, and you can enjoy a 365-day warranty when placing an order
Overseas warehouse
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily
Stability

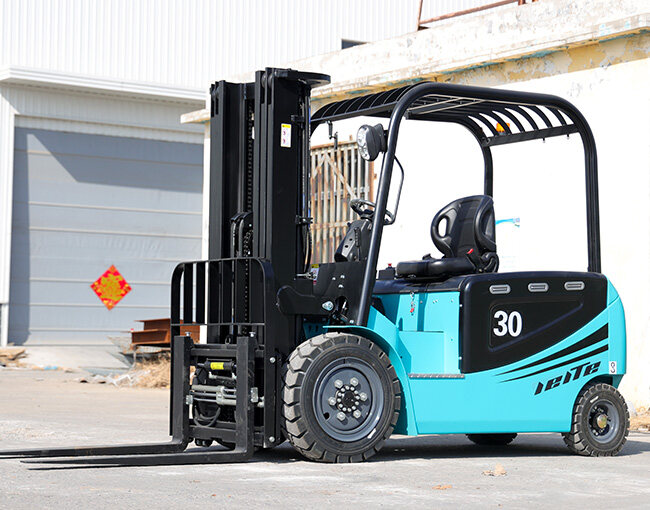

Customization
Trusted
Beautiful and practical
we adopt high-precision steel-iron counterweight, which is treated by electrophoretic coating and automotive-grade industrial treatment, with strong anti-rust ability.
Special offers
Specifications
Model
LTE30-D
Driving Mode
Seated
Rated Capacity
3000KG
Load Center Distance
500
Power Mode
Lead-Acid Battery
Wheel Base
1850
Performance
Travel Speed, Laden/Unladen
10月10日
Lifting Speed, Laden/Unladen
200/300
Lowering Speed, Laden/Unladen
450
Maximum Gradeability, Full/Empty
12月15日
Weight
Service Mass(with battery)
4150KG
Axle Load:Unloaded, Front/Rear
KG
Axle Load:Loaded, Front/Rear
KG
Battery Voltage / Nominal Capacity
72V/260Ah
Battery Weight
430KG
Electrical Configuration
Drive Motor Power-60 Minutes
9 Permanent Magnet SynchronizationKW
Lift Motor Power-15 Minutes
9 Permanent Magnet SynchronizationKW
Drive Motor Controlling Mode
MOSFET/AC
Lifting Motor Controlling Mode
MOSFET/AC
Service Brake/Parking Brake
Hydraulic/Mechanical
Tyre
Tyre Type
Pneumatic Tire
Wheels Number (front/rear)
2月2日
Front Track
1000mm
Rear Track
994mm

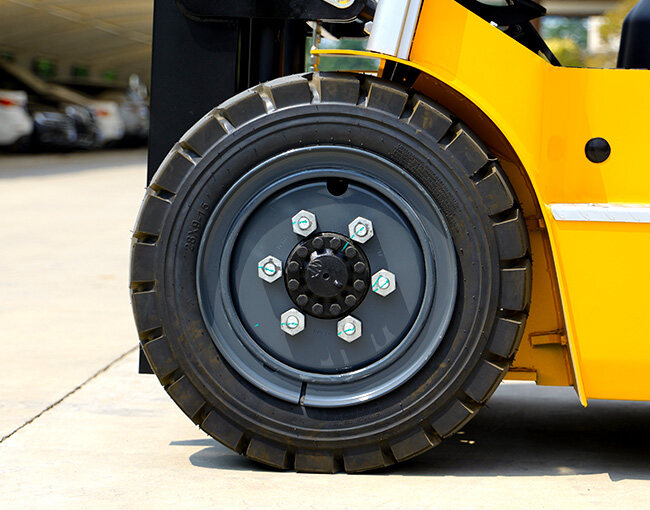

Tyre (front)
28*9-15
Tyre (rear)
18*7-8
Size
Front Overhang
467mm
Tilt Of The Mast,Front/Rear
°
Height, Mast Retraction
2057mm
Free Lift Height
120mm
Overall Maximum Lift Height
3000mm
Height,Mast Extended
4200mm
Overhead Guard Height
2200mm
Lateral Fork Adjustment (Outside Of Forks)Max/Min
1100/244mm
Fork Size(L*W*T)
45*122*1070
Truck Body Length(Fork Excluded)
2700mm
Truck Body Width
1225mm
Turning Radius
2680mm
Ground Clearance Under Mast
82mm
Ground Clearance At Center Of Wheelbase(Laden)
145mm
Width Of Aisle Right-Angle Stacking
4100mm
(pallet 1000x1000mm clearance 200mm)
Width Of Aisle Right-Angle Stacking
4300mm
(pallet 1000x1000mm clearance 200mm)
