- Rated Lifting Load3500kg
- Lifting Height3-6.5m/customized
- Power ModeLead-acid battery
- Fork size(L*W*H)45*122*1070mm
Customize your exclusive work partner according to your ideas
Recommend suitable engines for you according to the environmental protection requirements of your location
We have professional engineers 24 hours a day to answer your questions one-on-one, and you can enjoy a 365-day warranty when placing an order
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily

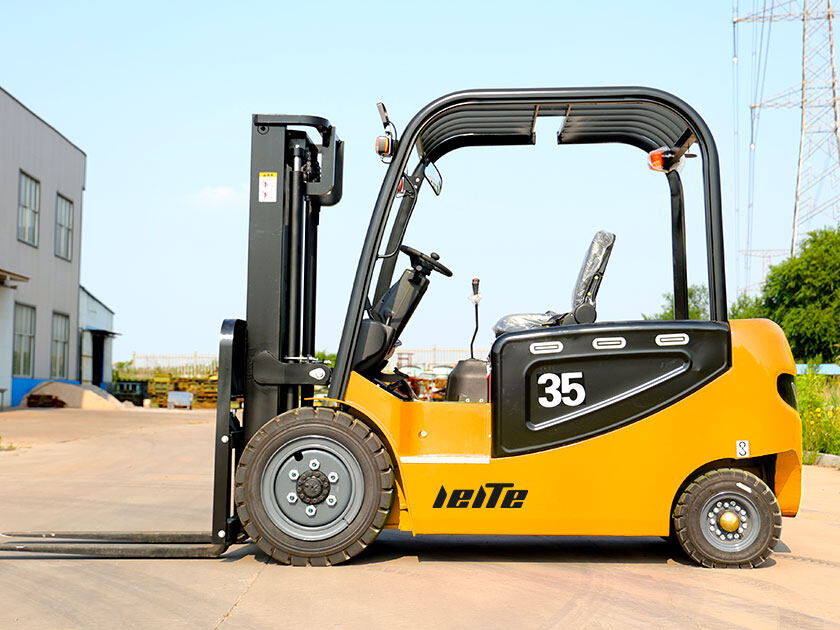

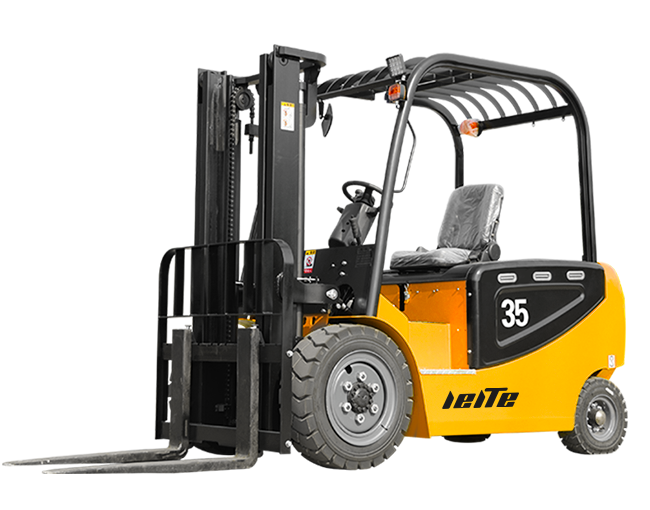

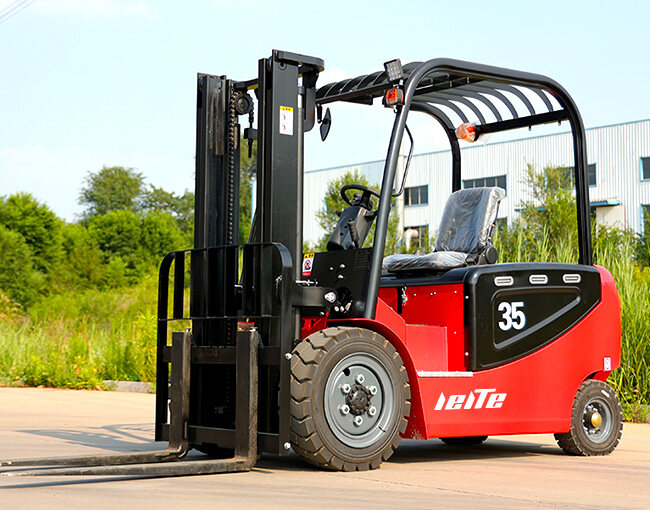

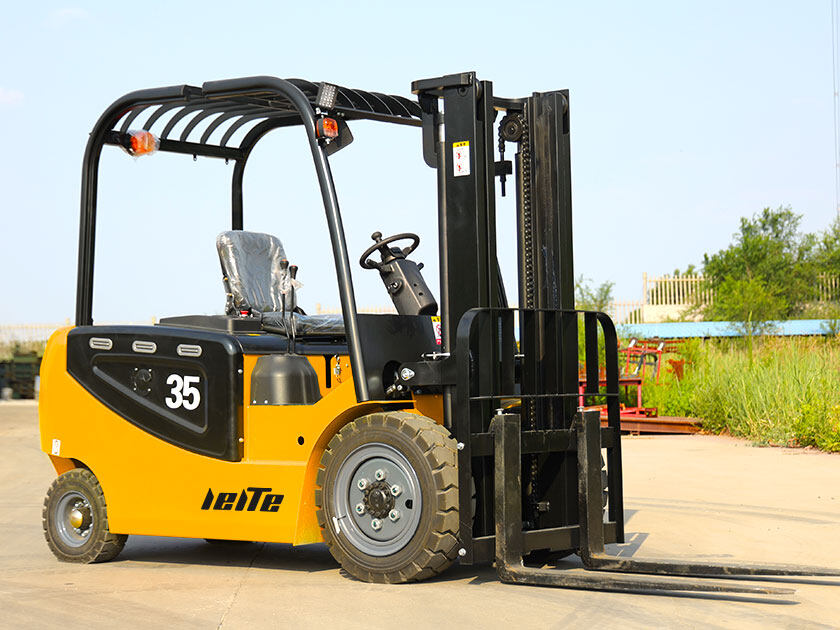

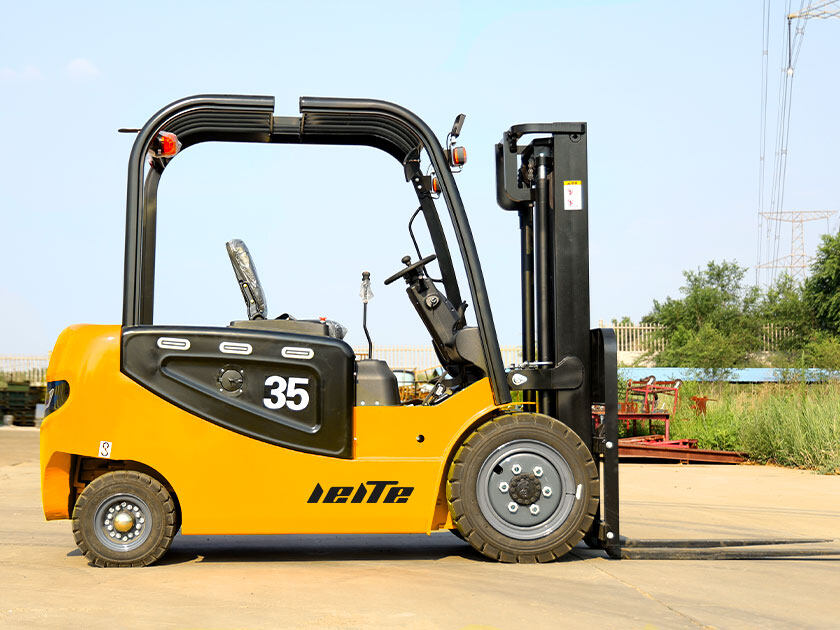

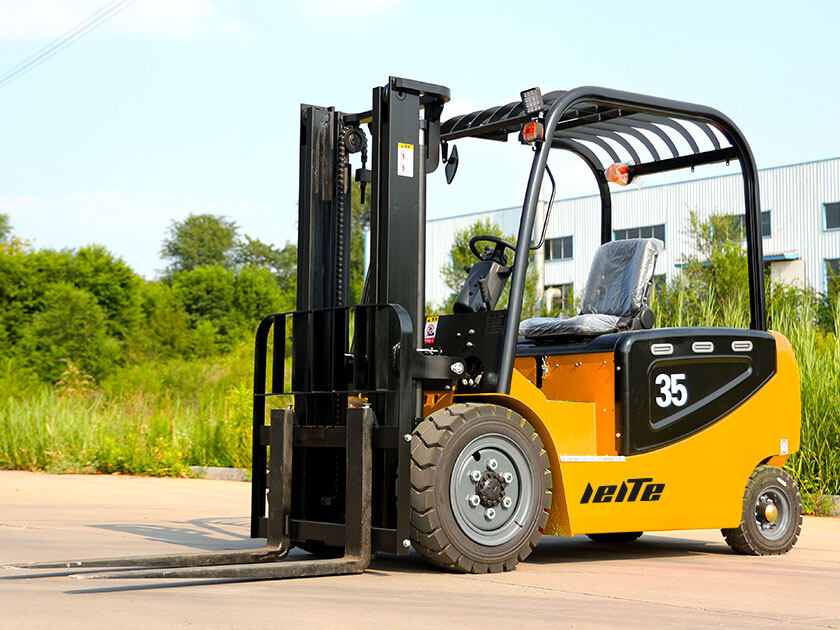

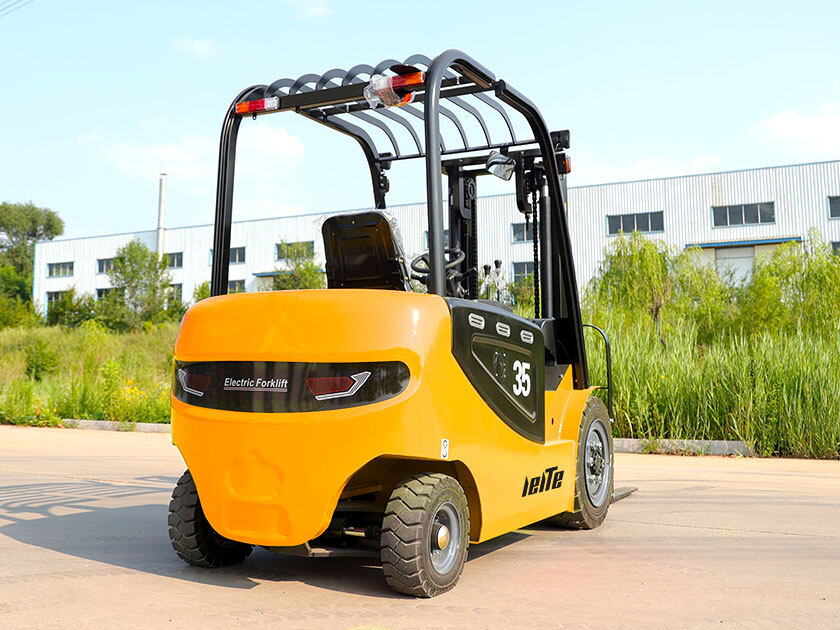

Electric forklifts use batteries as their power source, do not use fuel, do not emit exhaust gas, have little pollution to the environment, consume less energy during operation, and save energy. Electric forklifts have the advantages of low noise and zero emissions, which reduces the harm of the working environment to the human body.
Rated Load | 3500kg |
Load Center Distance | 500mm |
Power mode | Lead-acid battery |
Wheelbase | 1850 mm |
Travel speed(Laden/unladen) | 10/10 km/h |
Lifting speed(Laden/unladen) | 200/300 mm/s |
Lowering speed(Laden/unladen) | 450 mm/s |
Max.climbing angle | 12/20 % |
Battery voltage / nominal capacity | 72V/260Ah |
Battery weight | 430 kg |
Service brake / parking brake | Hydraulic / Mechanial |
Track(front/rear) | 1002/994 mm |

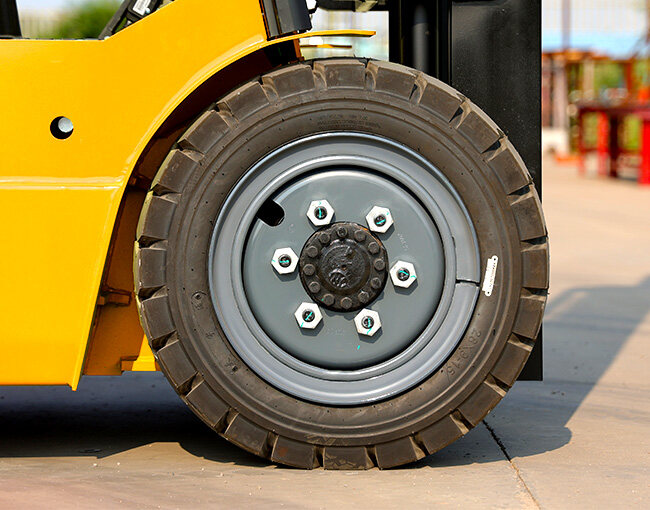

Tyre(front) | 28*9-15 |
Tyre(rear) | 18*7-8 |
Front overhang | 467 mm |
Overhead guard height | 2200 mm |
Lateral fork adjustment(outside of forks)Max/Min | 1100/244 mm |
Fork size(L*W*T) | 45*122*1070 mm |
Truck body length(fork excluded) | 2680 mm |
Truck body width | 1225 mm |
Turning radius | 2300 mm |
Ground clearance under mast | 82 mm |
Ground clearance at center of wheelbase(laden) | 145 mm |
