Electric forklifts use batteries as their power source, do not emit exhaust gas, have little environmental pollution, and reduce the harm of the working environment to the human body. The steering system, hydraulic control system, and braking system of electric forklifts are all controlled by electrical signals, which reduces the labor intensity of operators and improves work efficiency.
Get a quote
View Video
Power Modelead-acid battery
Rated Capacity5000kg
Overall Maximum Lift Height3000mm

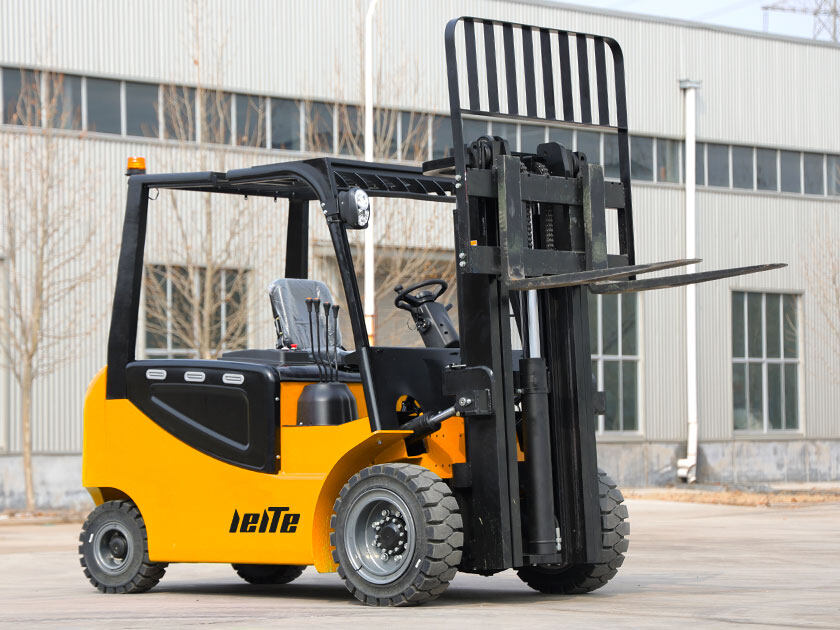

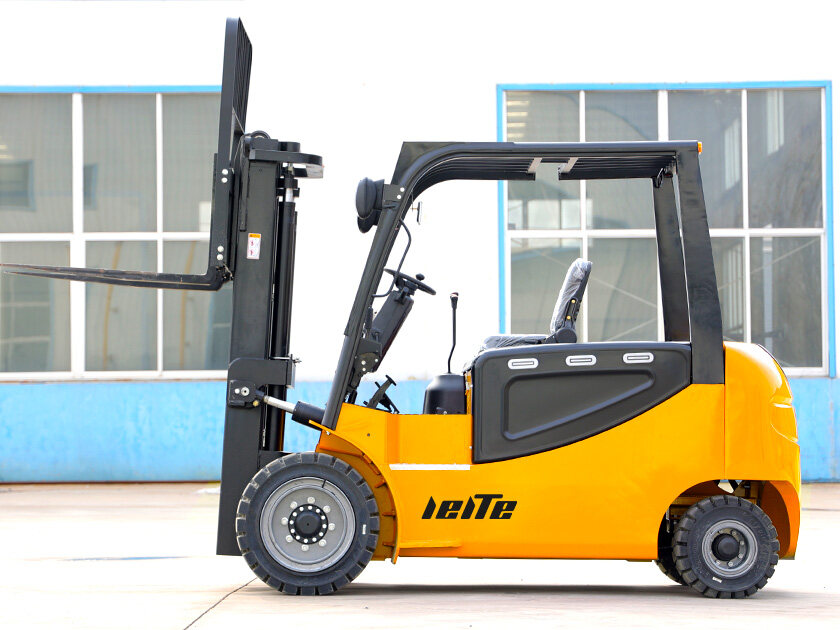

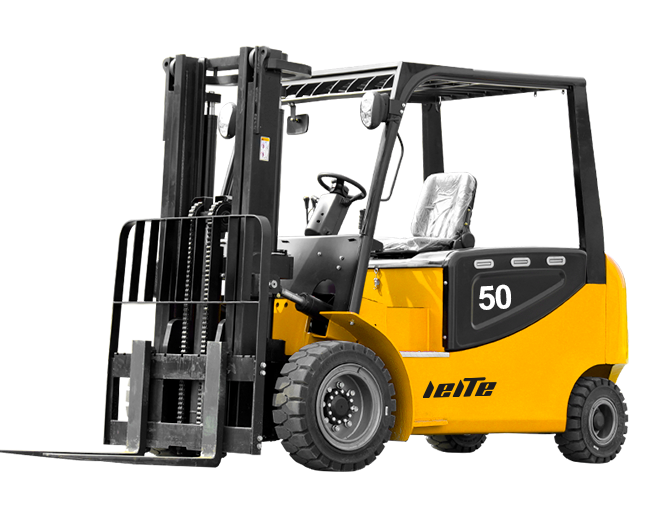

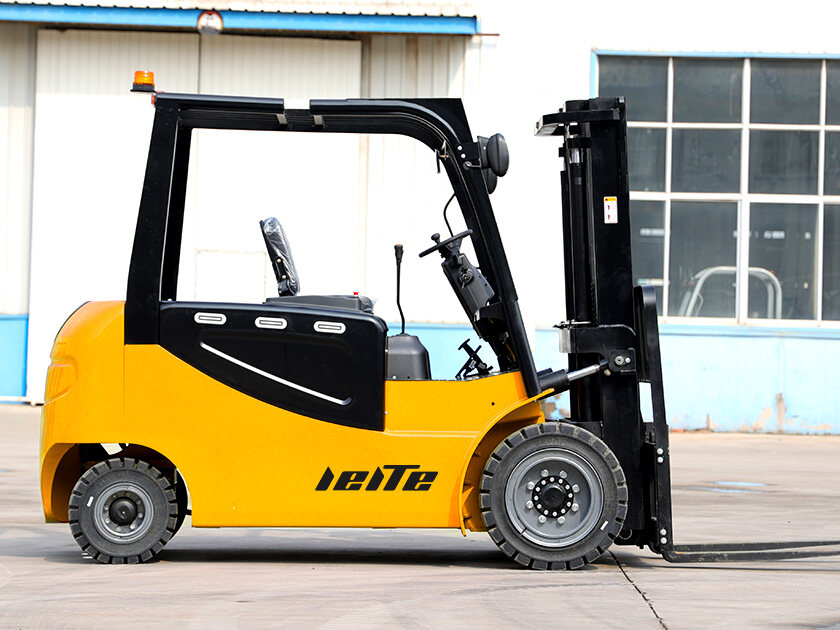

Overview LTE50 electric forklift
Benefits
Benefits

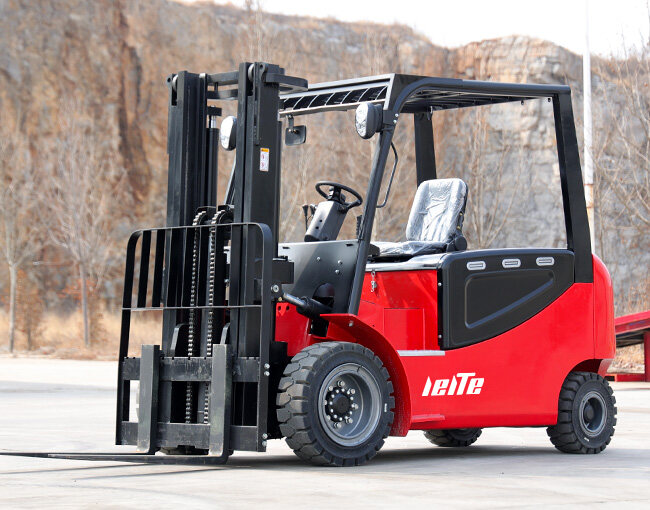

Color and logo can be customized.
Customize your exclusive work partner according to your ideas
Multiple brands of engines available
Recommend suitable engines for you according to the environmental protection requirements of your location
24-hour online customer service
We have professional engineers 24 hours a day to answer your questions one-on-one, and you can enjoy a 365-day warranty when placing an order
Overseas warehouse
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily
Stability
Customization
Trusted
Beautiful and practical

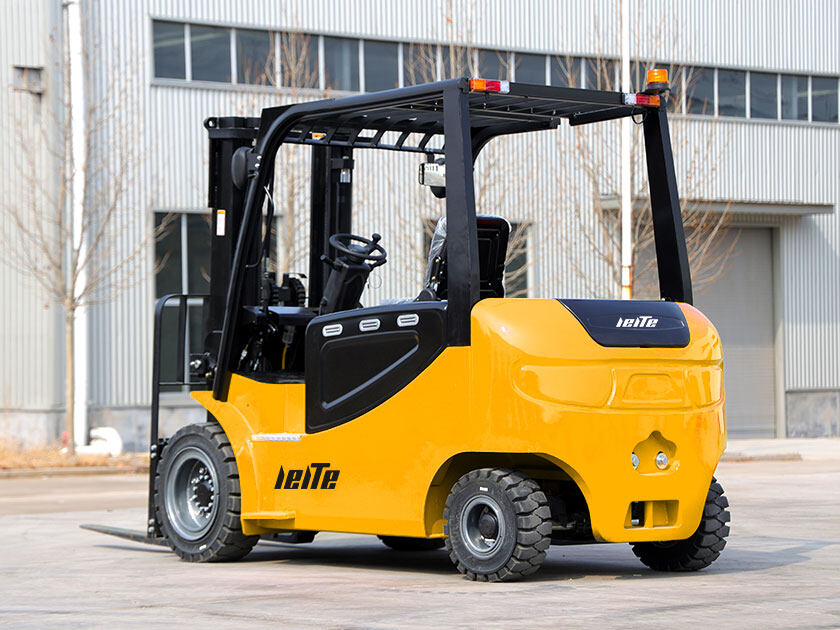

we adopt high-precision steel-iron counterweight, which is treated by electrophoretic coating and automotive-grade industrial treatment, with strong anti-rust ability.
Special offers
Specifications
Model
LTE50-B
Driving Mode
Seated
Rated Capacity
5000KG
Load Center Distance
500mm
Power Mode
Lead-Acid Battery
Wheel Base
2040mm
Performance
Travel Speed, Laden/Unladen
km/h
Lifting Speed, Laden/Unladen
250/280mm/s
Lowering Speed, Laden/Unladen
450mm/s
Maximum Gradeability, Full/Empty
%
Weight
Service Mass(with battery)
7100KG
Axle Load:Unloaded, Front/Rear
3200/3900KG
Axle Load:Loaded, Front/Rear
10850/1250KG
Battery Voltage / Nominal Capacity
80V/500Ah
Battery Weight
1100KG
Electrical Configuration
Drive Motor Power-60 Minutes
18AC KW
Lift Motor Power-15 Minutes
25AC KW
Drive Motor Controlling Mode
MOSFET/AC
Lifting Motor Controlling Mode
MOSFET/AC
Service Brake/Parking Brake
Hydraulic/Mechanical
Tyre
Tyre Type
Solid Tire
Wheels Number (front/rear)
2月2日
Front Track
1310mm
Rear Track
1110mm
Tyre (front)
250-15
Tyre (rear)
21x8-9
Size
Front Overhang
573mm
Tilt Of The Mast,Front/Rear
°
Height, Mast Retraction
2340mm
Free Lift Height
120mm
Overall Maximum Lift Height
3000mm
Height,Mast Extended
4220/3790mm
Overhead Guard Height
2350mm
Lateral Fork Adjustment (Outside Of Forks)Max/Min
140%/300mm
Fork Size(L*W*T)
55*150*1070mm
Truck Body Length(Fork Excluded)
2990mm
Truck Body Width
1585mm
Turning Radius
2700mm
Ground Clearance Under Mast
160mm
Ground Clearance At Center Of Wheelbase(Laden)
160mm
Width Of Aisle Right-Angle Stacking
4543mm
(pallet 1000x1000mm clearance 200mm)
Width Of Aisle Right-Angle Stacking
4673mm
(pallet 1000x1000mm clearance 200mm)
