Electric forklifts use batteries as their power source, do not emit exhaust gas, have little environmental pollution, and reduce the harm of the working environment to the human body. The steering system, hydraulic control system, and braking system of electric forklifts are all controlled by electrical signals, which reduces the labor intensity of operators and improves work efficiency.
Get a quote
View Video
Rated Lifting Load4000kg
Lifting Height3-6.5m/customized
Power Mode50*145*1070mm
Fork size(L*W*H)

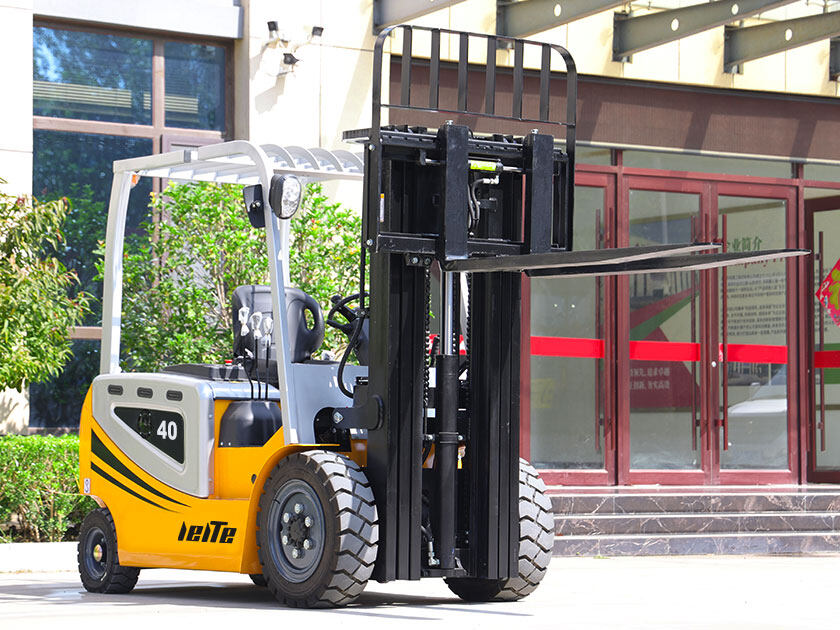

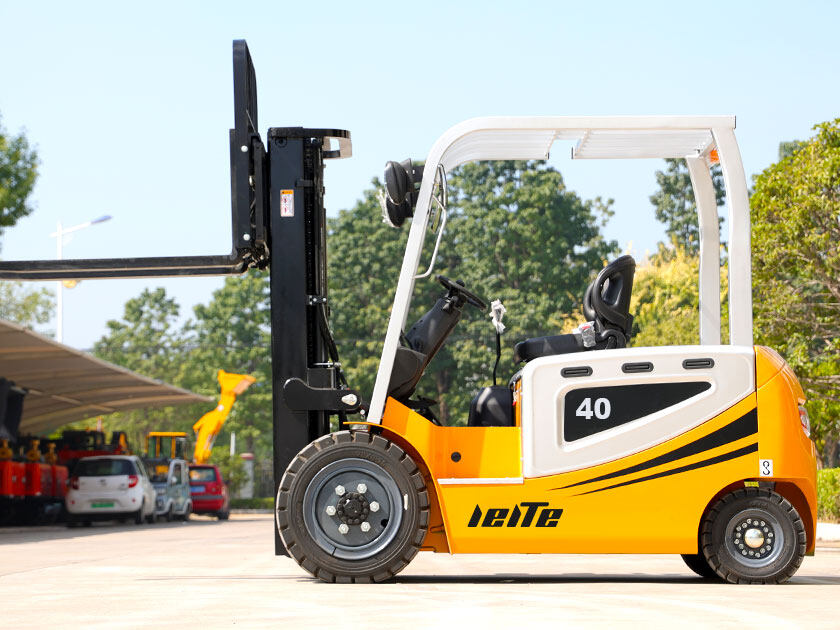

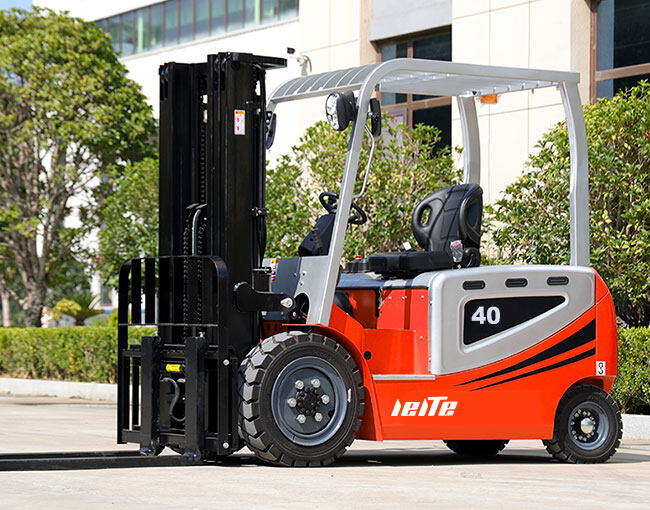

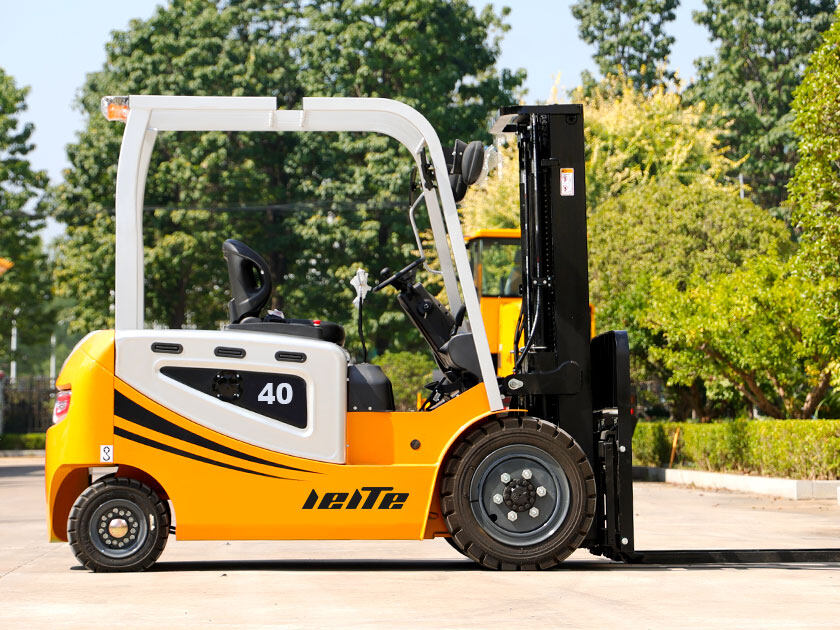

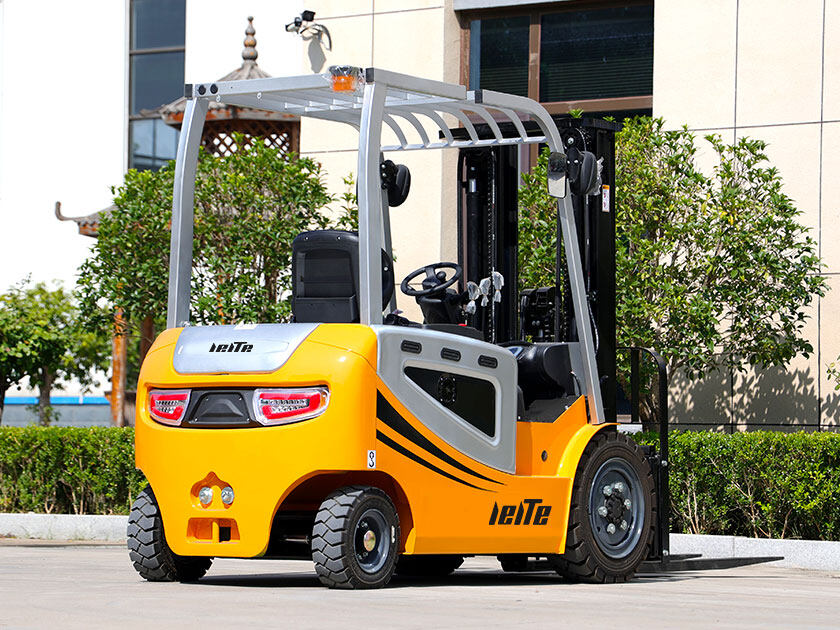

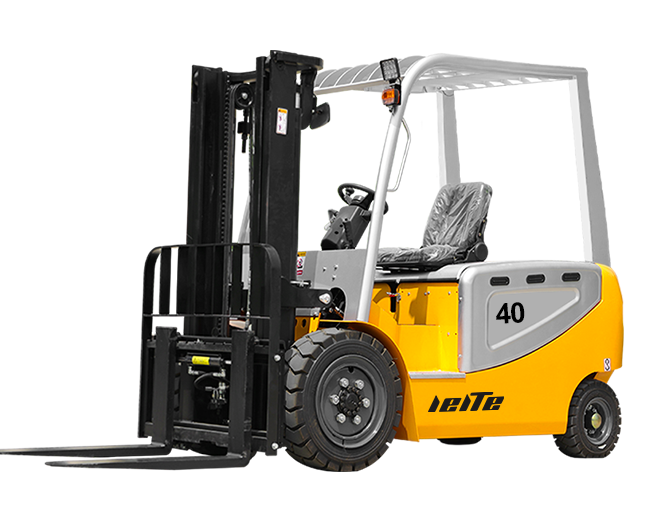

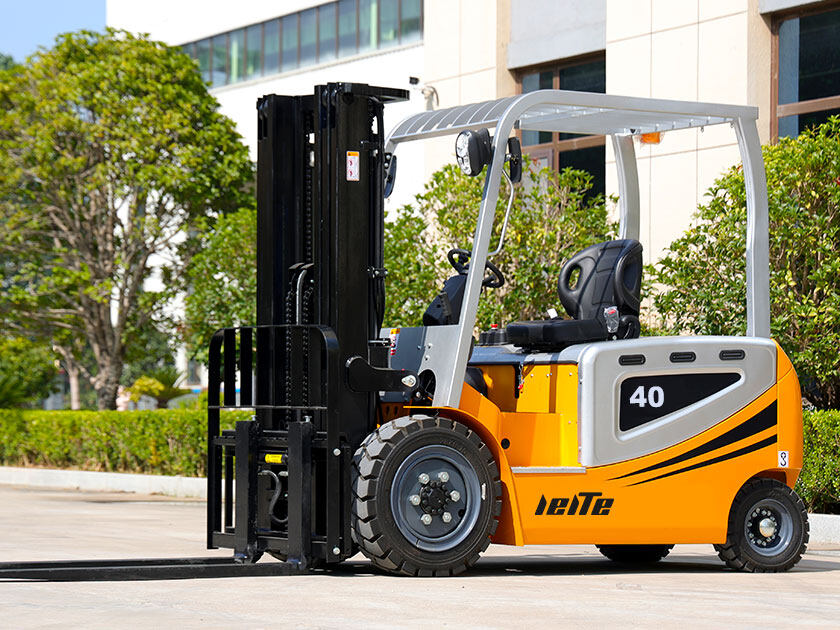

Overview LTE40 electric forklift
Benefits
Color and logo can be customized
Customize your exclusive work partner according to your ideas
Multiple brands of engines available
Recommend suitable engines for you according to the environmental protection requirements of your location
24-hour online customer service
We have professional engineers 24 hours a day to answer your questions one-on-one, and you can enjoy a 365-day warranty when placing an order
Overseas warehouse
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily
Introduction

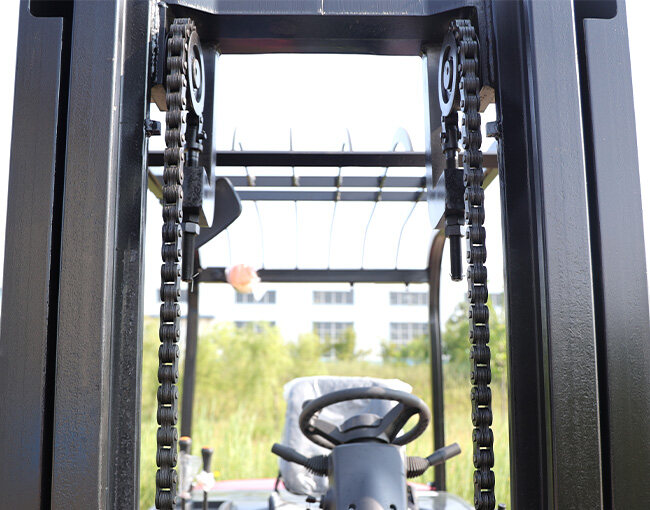

Lifting system

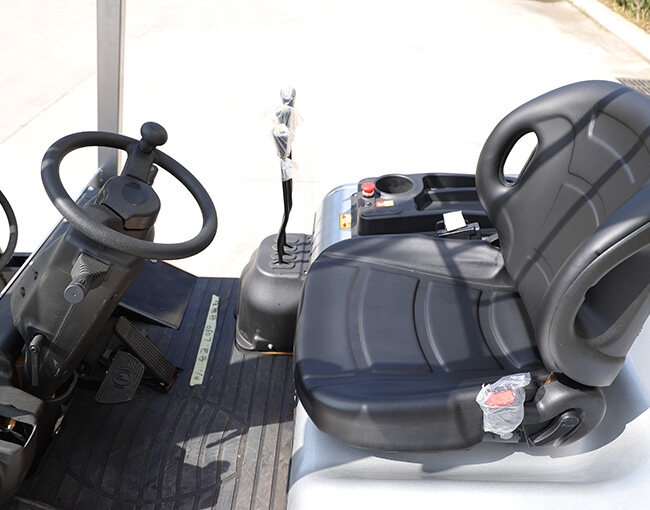

Easy to operate
Durability
Customizable
Environmental protection & Energy saving
Electric forklifts use batteries as their power source, do not use fuel, do not emit exhaust gas, have little pollution to the environment, consume less energy during operation, and save energy. Electric forklifts have the advantages of low noise and zero emissions, which reduces the harm of the working environment to the human body.
Special offers
Specifications
Rated Load
4000kg
Load Center Distance
500mm
Power mode
Lead-acid battery
Wheelbase
2040 mm
Travel speed(Laden/unladen)
12/13 km/h
Lifting speed(Laden/unladen)
280/300 mm/s
Lowering speed(Laden/unladen)
450 mm/s
Max.climbing angle
15/20 %
Battery voltage / nominal capacity
80V/300Ah
Battery weight
860 kg
Service brake / parking brake
Hydraulic / Mechanial
Track(front/rear)
1310/1100 mm

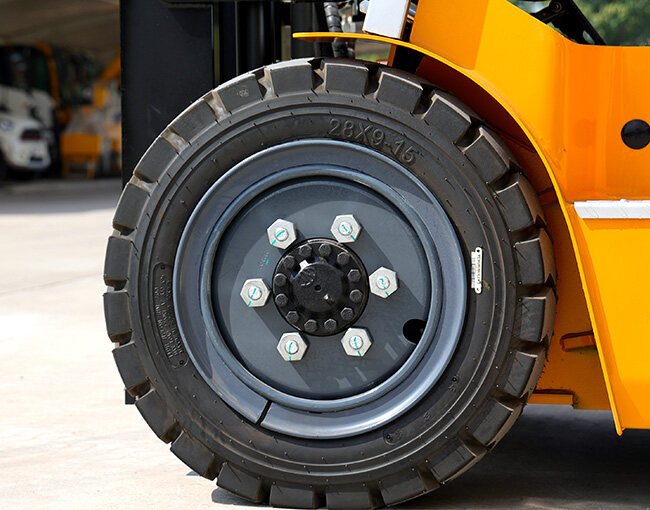

Tyre(front)
250-15
Tyre(rear)
21*8-9
Front overhang
573 mm
Overhead guard height
2350 mm
Lateral fork adjustment(outside of forks)Max/Min
1240/300 mm
Fork size(L*W*T)
50*145*1070 mm
Truck body length(fork excluded)
2990 mm
Truck body width
1585 mm
Turning radius
2700 mm
Ground clearance under mast
160 mm
Ground clearance at center of wheelbase(laden)
160 mm
