Diesel forklifts have high power, strong climbing ability, low requirements on road surface, and long working duration. They are suitable for heavy loads, long working hours, and open outdoor working environments. They have better acceleration performance under heavy loads and are more suitable for short-distance, low-speed, heavy-load, and high-low speed handling operations.
Get a quote
View Video
Rated Lifting Load4500kg
Lifting Height3-8m/customized
EngineXinchai/Quanchai
Net Power42/2500kW/rpm

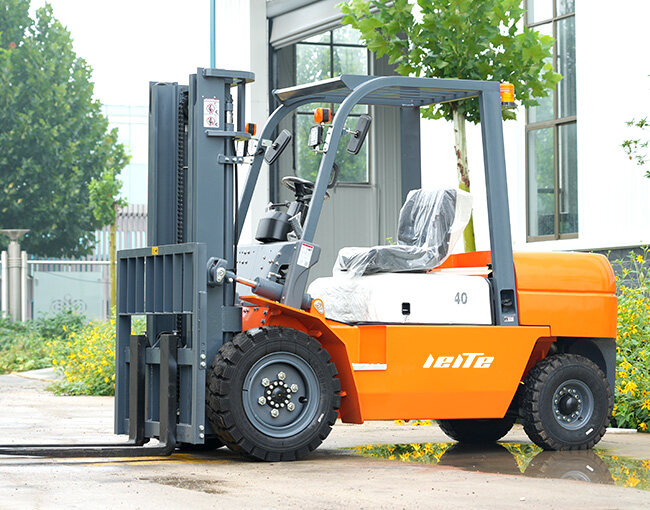

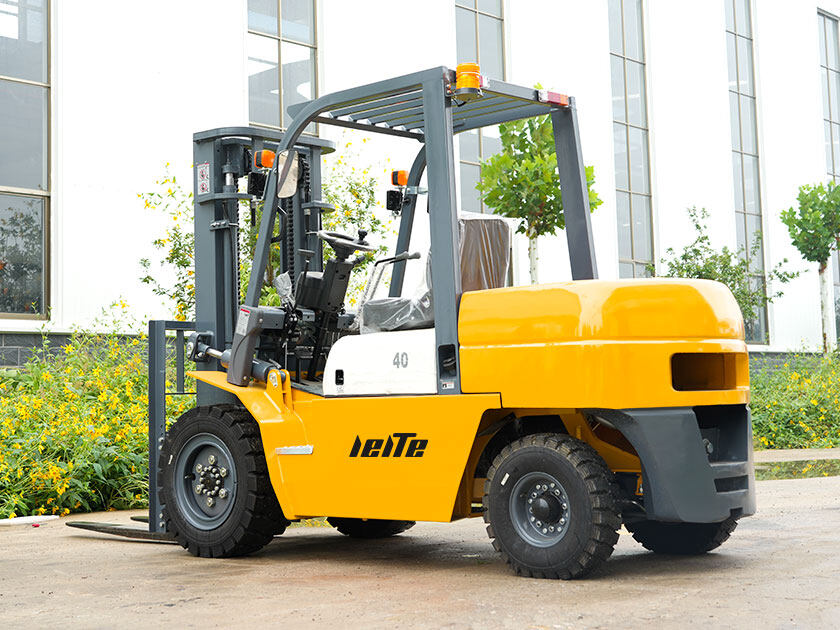

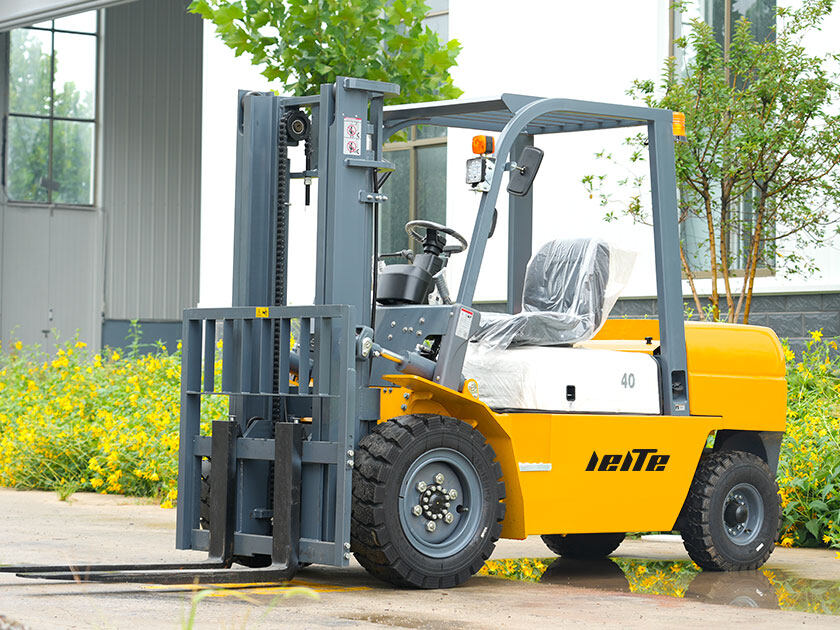

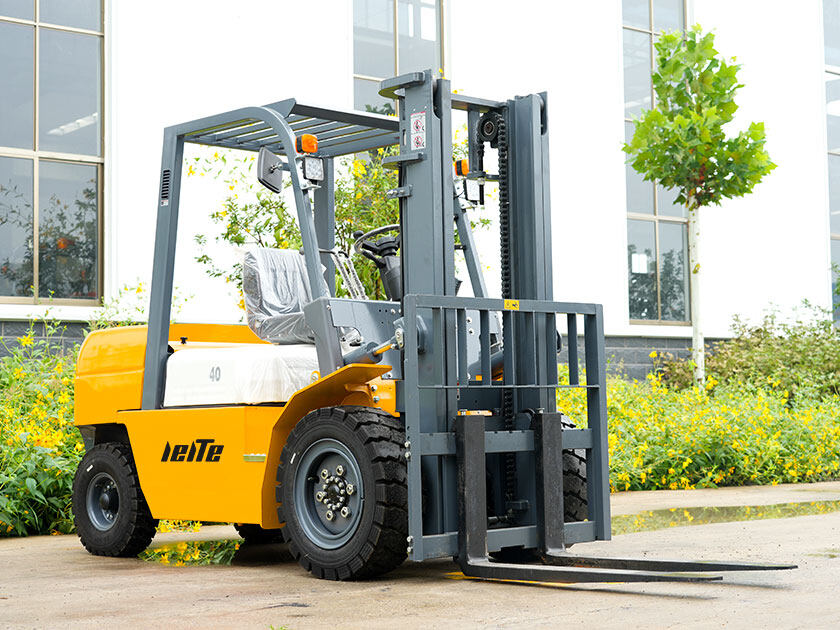

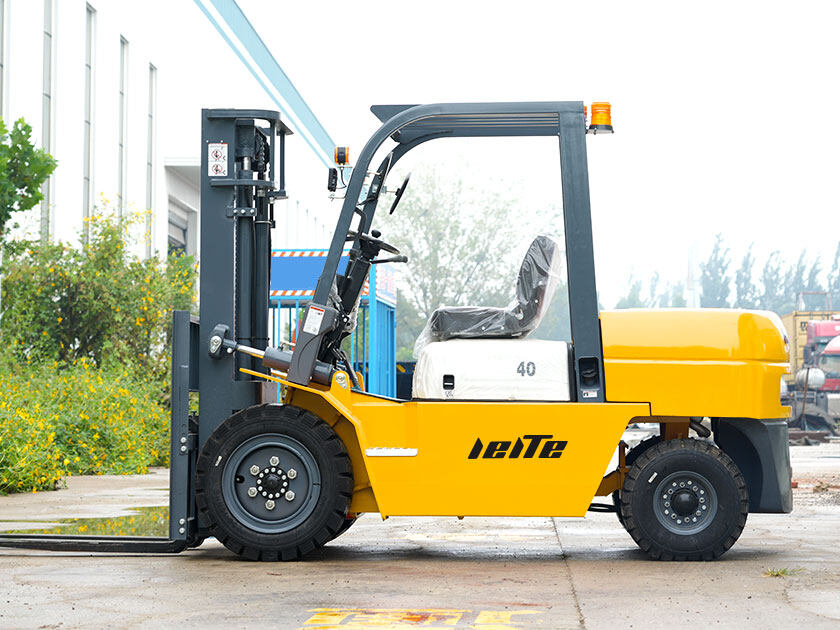

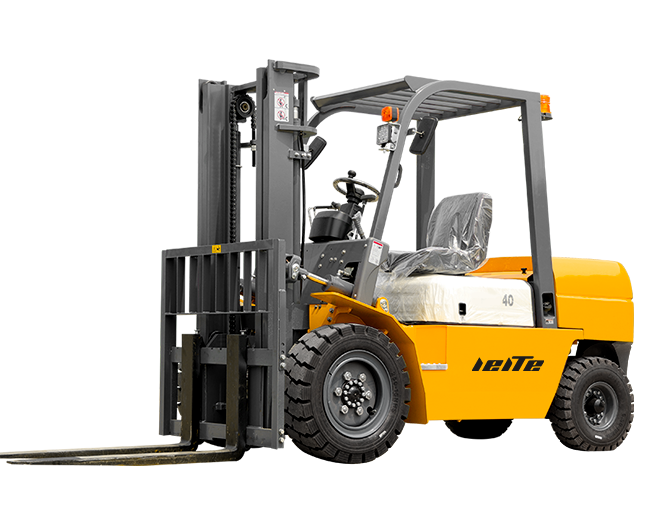

Overview LTP40 diesel forklift
Powerful, high performance, innovative design to help you work in a variety of applications
Benefits
Color and logo can be customized
Customize your exclusive work partner according to your ideas
Multiple brands of engines available
Recommend suitable engines for you according to the environmental protection requirements of your location
24-hour online customer service
We have professional engineers 24 hours a day to answer your questions one-on-one, and you can enjoy a 365-day warranty when placing an order
Overseas warehouse
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily
Introduction

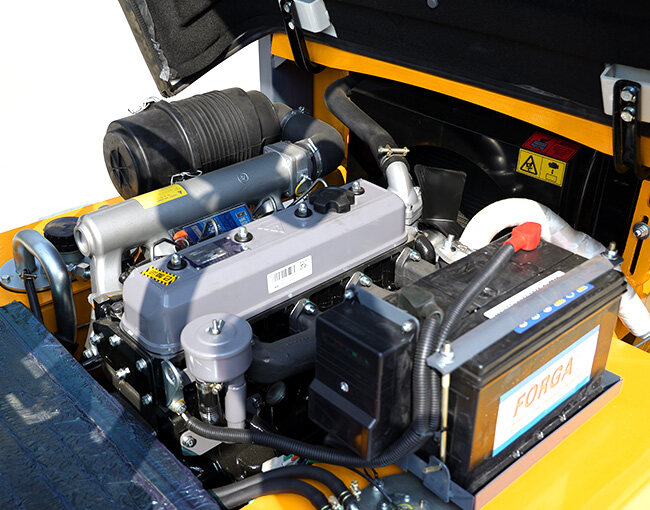

Engine

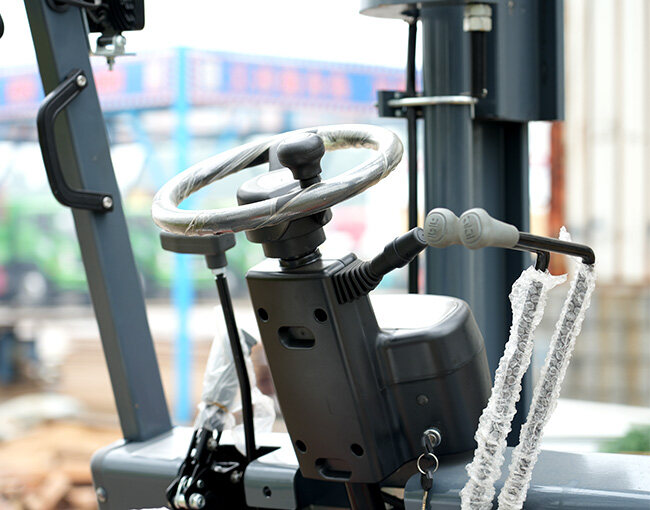

Easy to operate
Durability
Customizable
High cost performance
As an important material handling equipment, Leite diesel forklift has cheap fuel, high power, strong climbing ability, low requirements on road surface, long operation duration, good maintenance performance, and is suitable for heavy loads, long working hours and open outdoor working environments.
Special offers
Specifications
Rated Load
4000kg
Load Center Distance
500mm
Free Lifting Height
160mm
Full Length (fork/without fork)
4000/2930mm
Ful Width
1290mm
Full Height (overhead guard)
2180mm
Wheelbase
1900mm
Min.Ground Clearance (at the door frame)
140mm
Mast Tilt Angle(Front/Rear)
6°/12°

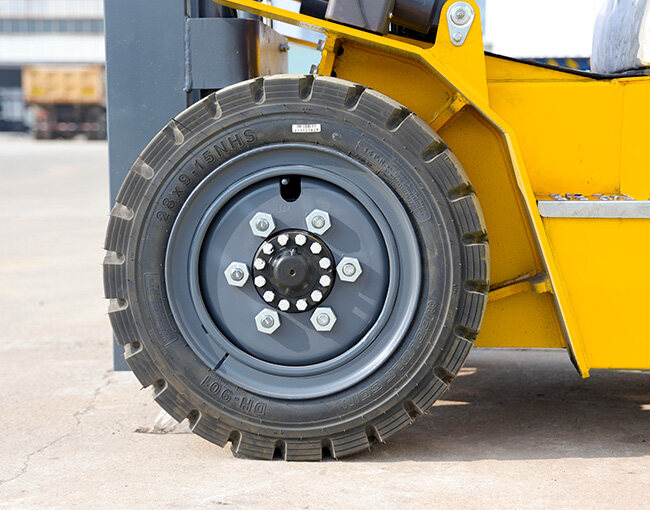

Tire No. (Before)
250-15-16PR
Tire No. (After)
7-12-12PR
Min.Turning Radius (outer side)
2710mm
Min.Right Angle Channel Width
4750mm
Fork size L*W*T
1070*150*50mm
Max.Travel Speed (laden/unladen)
19/19km/h
Max.Lifting Speed (full load/no load)
340/380mm/s
Max.Gradeability Machinery (full load/no load)
15/20%
Gross Weight
4950KG
Engine Brand
XINCHAI / QUANCHAI
Engine Model
495
Power
42/2500KW/rpm
Torque
187/1800
