They are mainly used in civil engineering, mining, agriculture, ports and docks, and are widely used in various transportation, cargo loading and unloading operations. They have good mobility, will not damage the road surface, and are easy to operate, meeting the needs of multi-tasking in heavy construction sites.
Get a quote
View Video
bucket capacity0.1m³
Power40kw(55hp)
Operating Weight3400kg

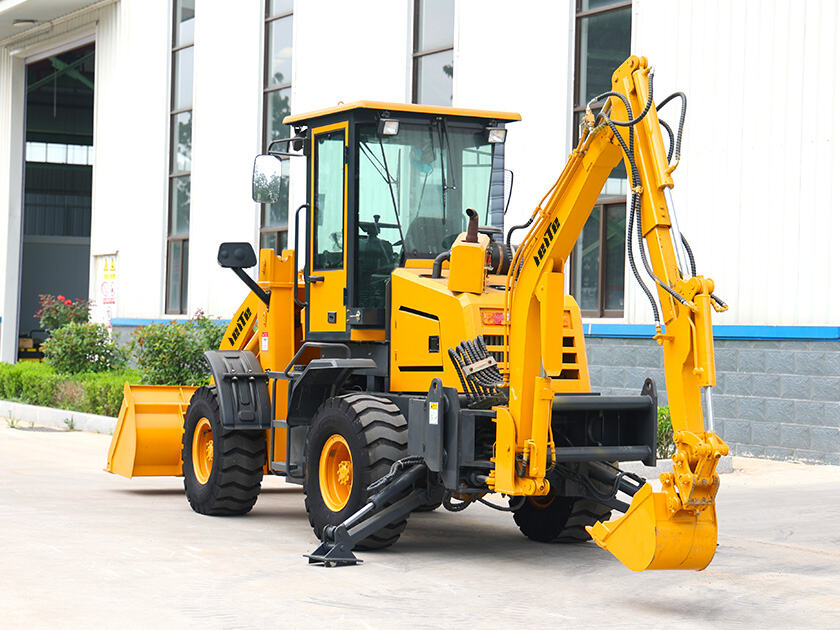

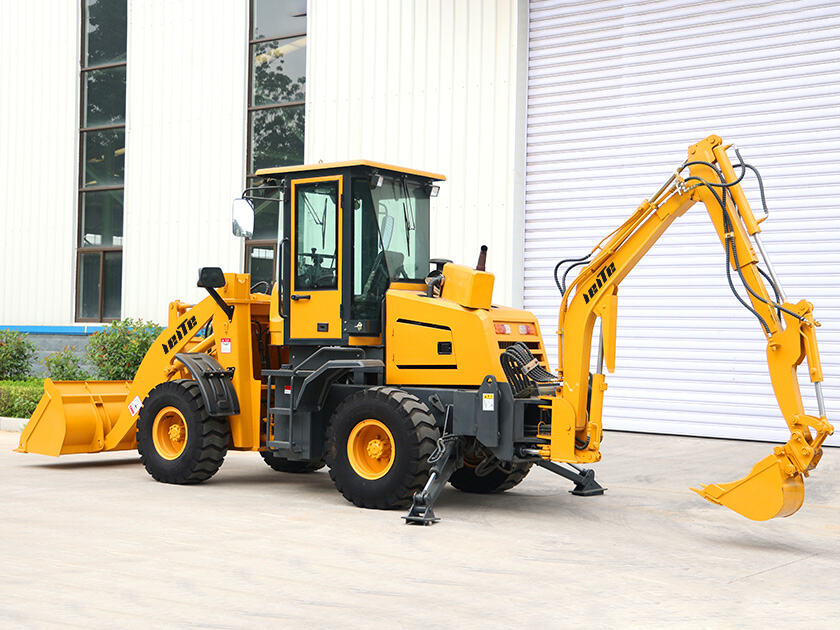

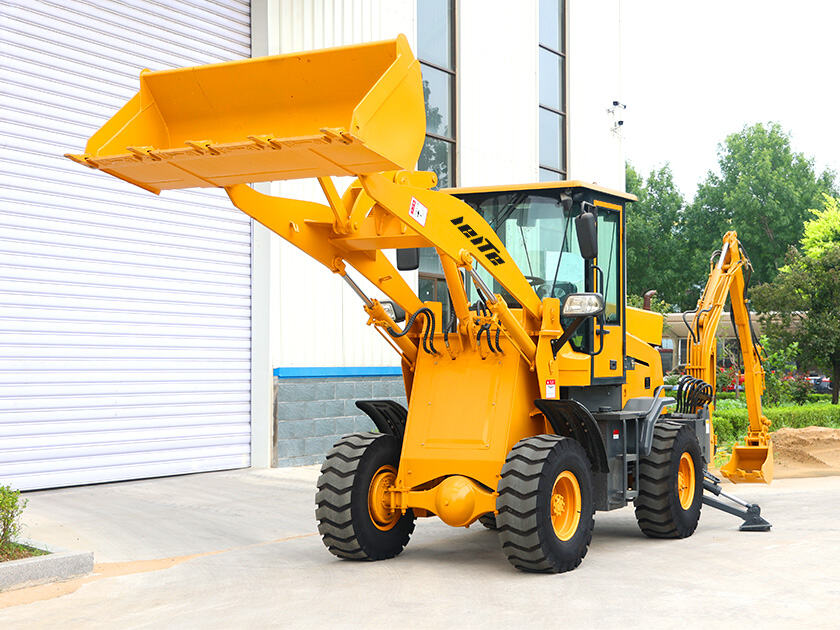

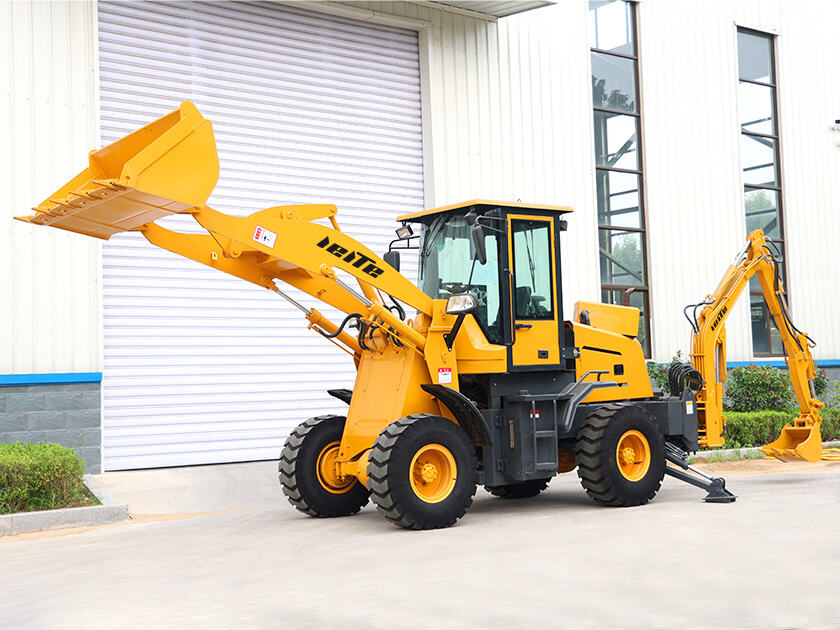

Overview LTZ10-20 Backhoe Loaders
Powerful, high performance, innovative design to help you work in a variety of applications
Benefits
Benefits
Color and logo can be customized.
Customize your exclusive work partner according to your ideas
Multiple brands of engines available
Recommend suitable engines for you according to the environmental protection requirements of your location
24-hour online customer service
We have professional engineers 24 hours a day to answer your questions one-on-one, and you can enjoy a 365-day warranty when placing an order
Overseas warehouse
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily
Introduction
Flexible switching
Durability
Comfort
Versatility

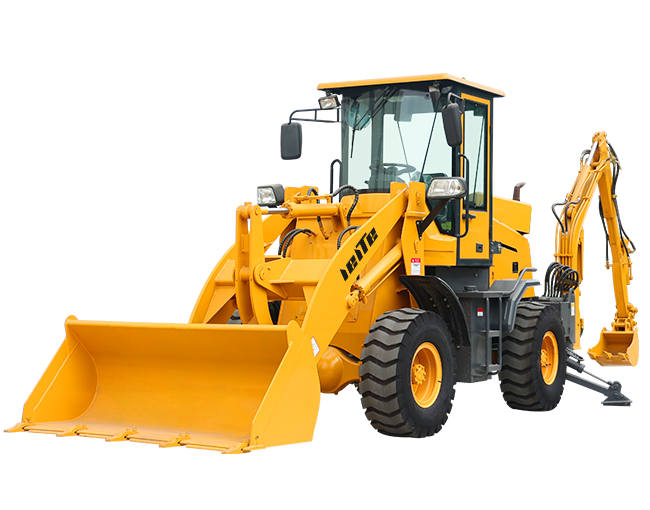

Dual-end operation function
The two-end loader is equipped with working devices at both ends, which can load and unload at both ends at the same time, reducing the number of round trips and greatly improving work efficiency. For example, at the construction site, it can load materials while unloading them to the designated location, saving a lot of time.
Special offers
Specifications
0perating weight
3400KG
Dimensions (mm)
5500*1720*2650
Rated Load
1500 kg
Rated Power
40 kw (55 hp)
Engine Type
Diesel, 4-Cylinder, 4-Stroke, In-line, Water Cooling
Backhoe Capacity
0.1 m³
Loader Capacity
0.75 m³
Backhoe Max. Digging Depth
2000 mm
Backhoe Max. Digging Height
3300 mm
Backhoe Max. Digging Radius
2900 mm
Backhoe Max. Dumping Height
1850 mm
Loader Max. Dumping Height
2800 mm
Loader Max. Dumping Distance
800 mm
Backhoe Max. Breakout Force
25 kn (2550 kg)
Loader Max. Breakout Force
36 kn (3672 kg)
Travel Speed
0 - 26 km/h
Gradeability
30°
Min. Turning Radius
3500 mm
Working Pressure
16 MPa
Wheel Tread
1475 mm
Wheel Base
2070 mm
Tire Model
20.5 - 16
Tire Pressure
250 KPa
Transmission Type
Hydraulic
Braking System
Air Assist
