- Bucket capacity0.2m³
- Power76kW
- Weight5400kg
- Dimension6200*1960*2800mm





Powerful, high performance, innovative design to help you work in a variety of applications
Customize your exclusive work partner according to your ideas
Recommend suitable engines for you according to the environmental protection requirements of your location
We have professional engineers 24 hours a day to answer your questions one-on-one, and you can enjoy a 365-day warranty when placing an order
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily
Ensure your products are delivered safely to your doorstep.

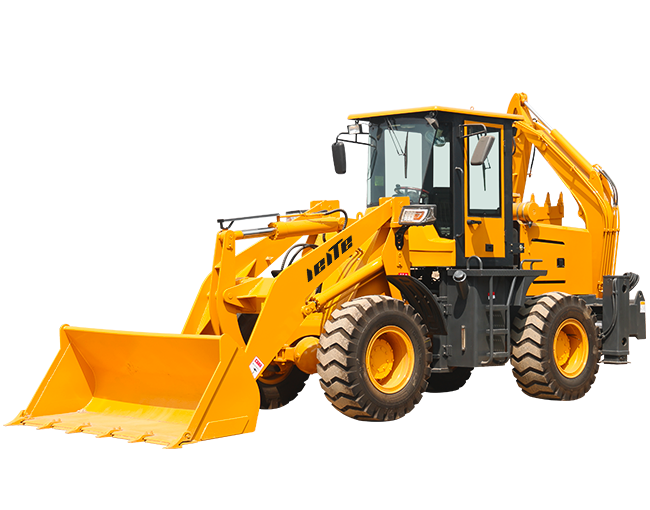

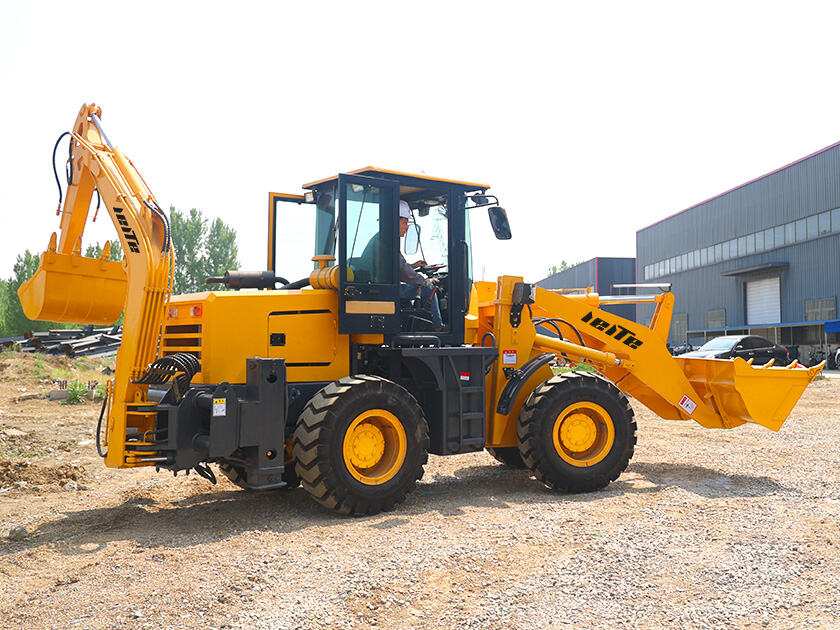

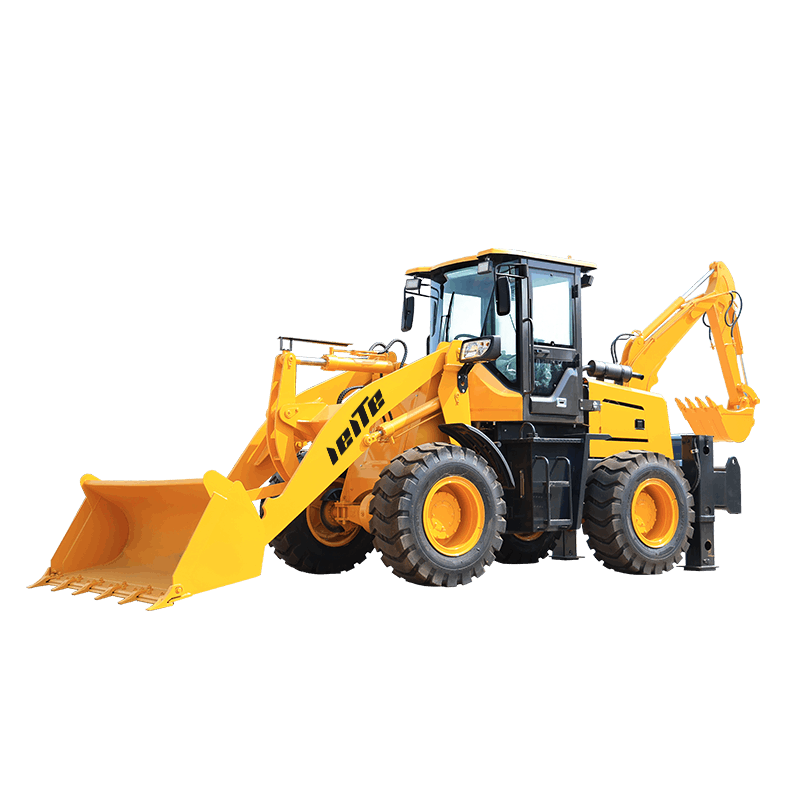

The two-end loader is equipped with working devices at both ends, which can load and unload at both ends at the same time, reducing the number of round trips and greatly improving work efficiency. For example, at the construction site, it can load materials while unloading them to the designated location, saving a lot of time.
| Minimum ground clearance | 290mm |
| System pressure | 18MPa |
| Machine weight | 5400kg |
| Maximum speed | 28km/h |
| Maximum gradeability | 25° |
| Engine model | Yunnei YN38GBZ |
| Engine type | Turbocharged,four-cylinder four-stroke |
| Rated power | 76kW |
| Rated speed | 2400r/min |
| Maximum excavation depth | 2600mm |
| Excavation unloading height | 2300mm |
| Maximum excavation radius | 4600mm |
| Bucket width | 600mm |
| Bucket capacity | 0.2m³ |
| Maximum excavation height | 4300mm |
| Maximum excavation force | 28KN |
| Maximum unloading height | 3500mm |
| Maximum unloading distance | 900mm |
| Bucket width | 2100mm |
| Bucket capacity | 1m³ |
| Maximum lifting height of loading | 4300mm |
| Maximum lifting force | 42KN |
| Fuel tank | 50L |
| Hydraulic oil tank | 50L |
