- Machine weight2000KG
- Cargo size2550*1550*600mm
- EngineHUICHAI 4102
- Power69HP

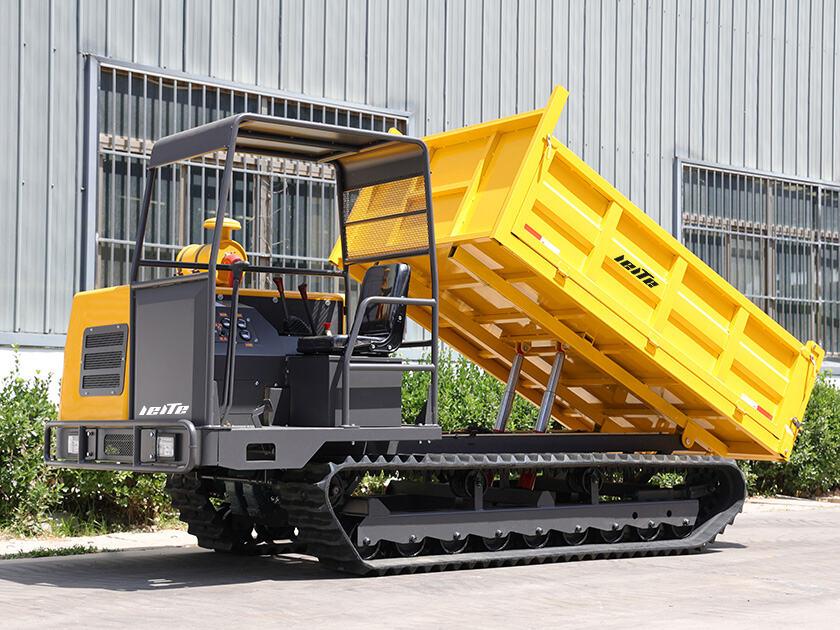

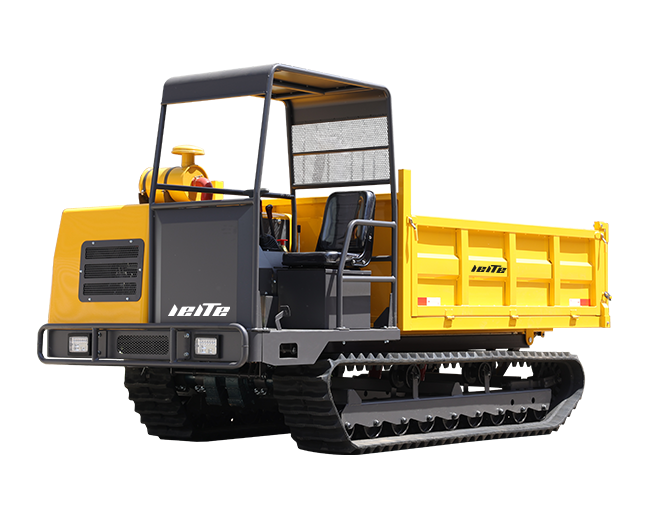

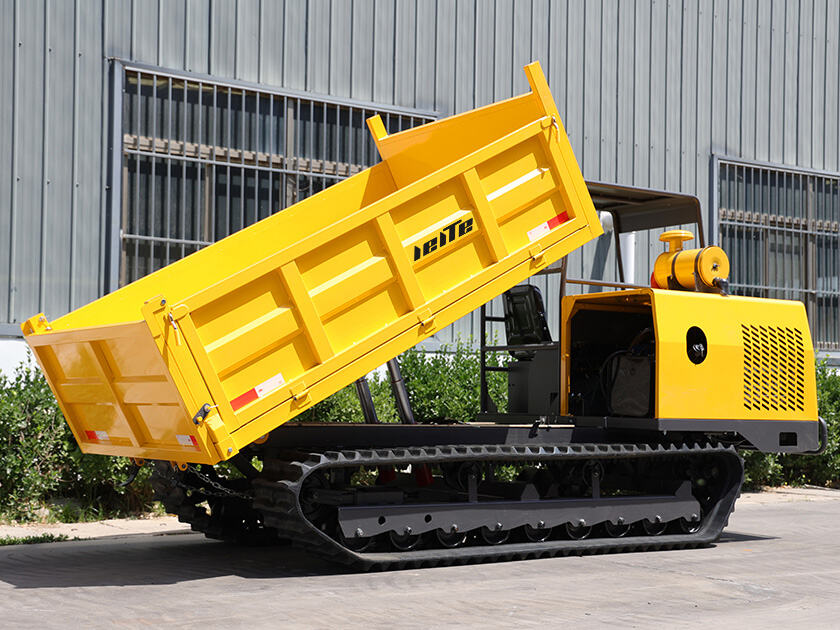

Choose which side you want to dump from: rear . This means youcan safely dump into trenches without using much space. There's aremarkable dumping angle of 58°, so first-time safe dumping speedsup your site work. A mudguard prevents material from falling fromthe wagon and damaging hydraulic components or getting into theoperator area.
| Load | 6000KG |
| Engine | HUICHAI 4102 |
| Power | 69HP |
| Gearbox | Guli/Minhua 29 gearbox |

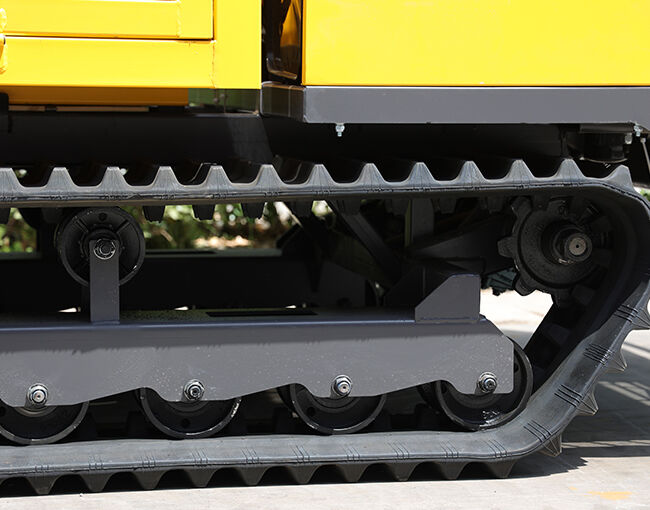

| Track | 400-90-68 |
| Vehicle size | 3900*1650*1800mm |
| Cargo size | 2550*1550*600mm |
| Ground length | 2300mm |
| Gear | Front 6 Back 2 |
| Maximum speed | 10km/h |
| Chassis width | 1630mm |
| Uphill grade | 35° |
| Number of Loaded Wheels | 9 |

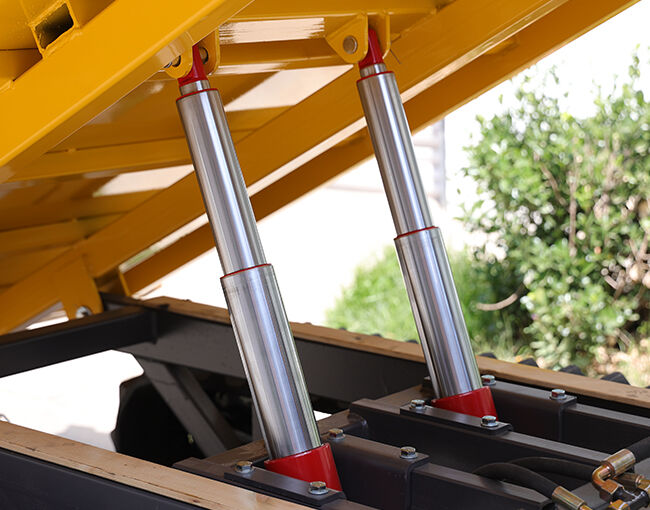

| Dump Function | Double top dump bucket |
| Weight | 2000KG |
