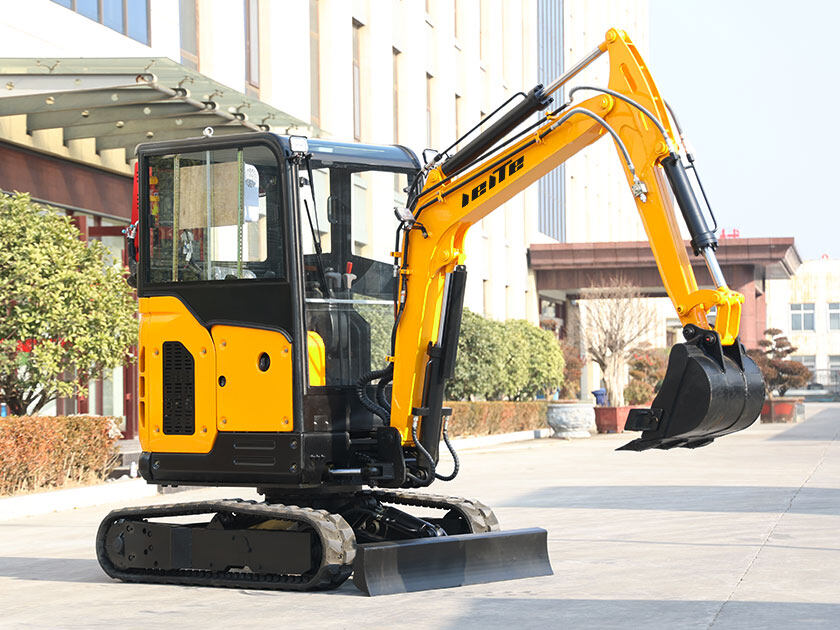

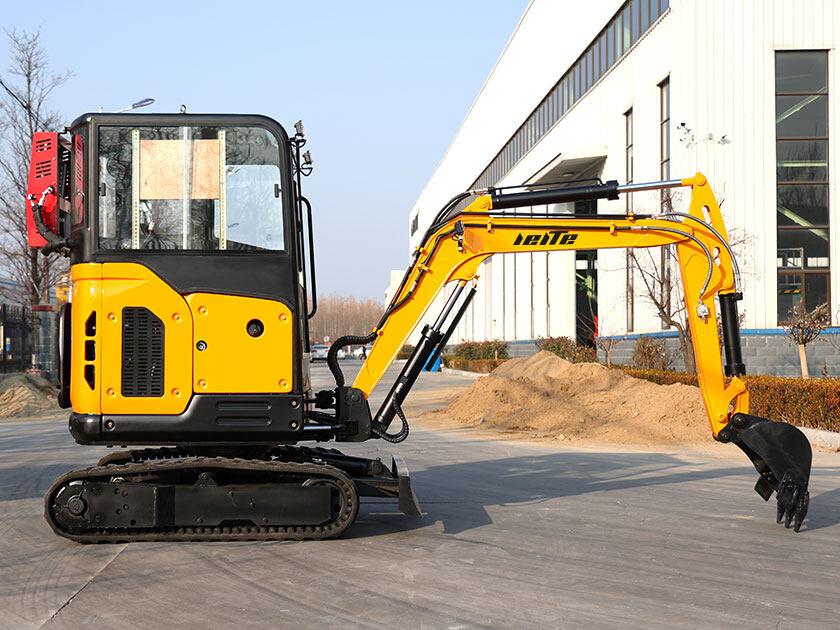

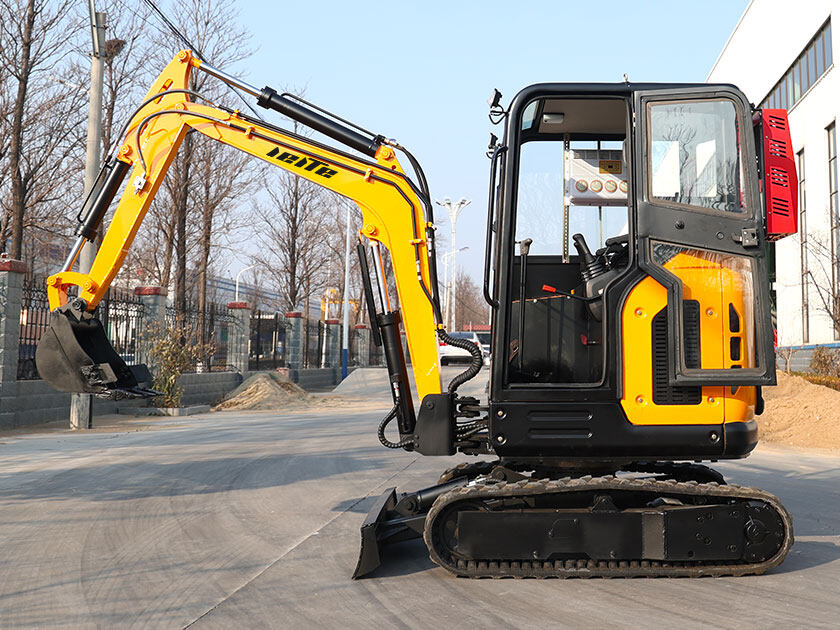

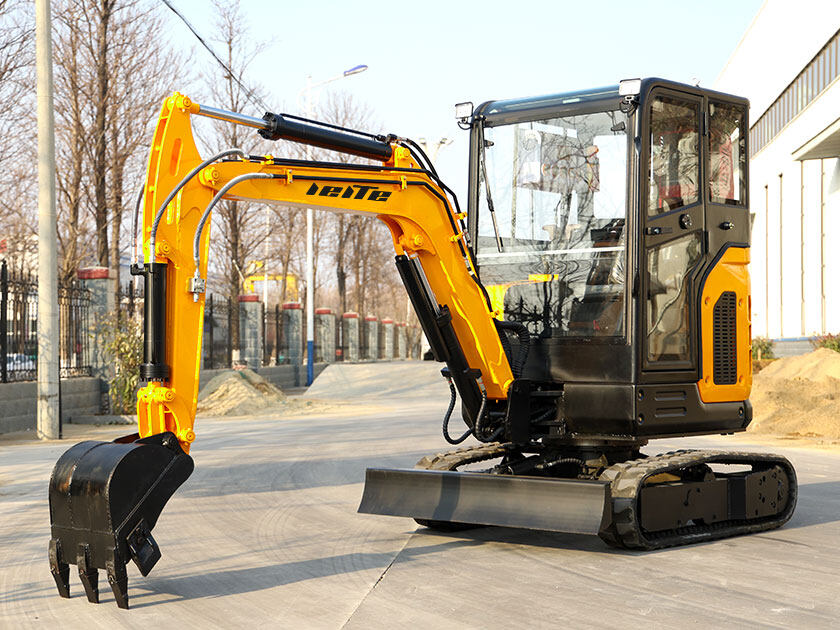

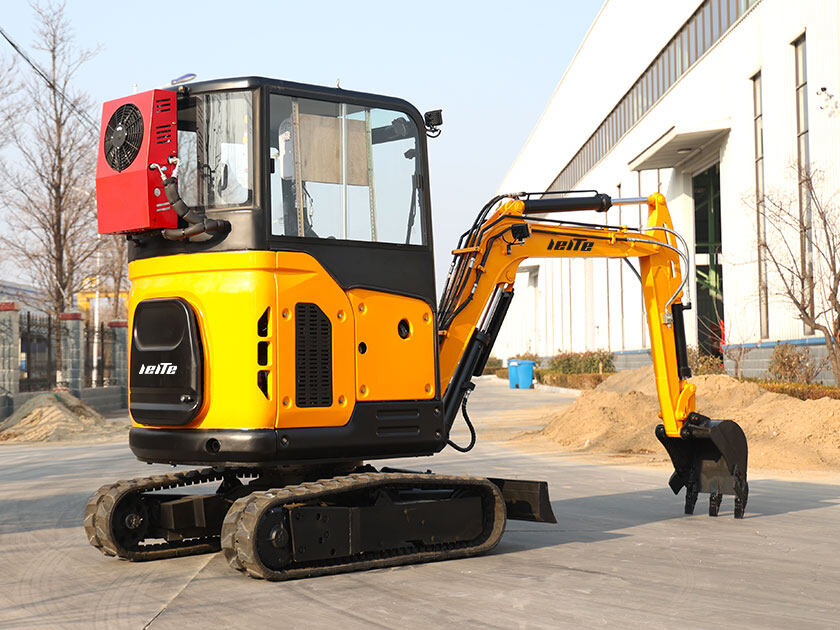

The LT1025 mini excavator is compact, highly maneuverable and has high lateral stability. It offers excellent value for general construction, landscaping and utility contractors. With its compact size, retractable undercarriage and dozer blade extension,
Get a quote
View Video
Operating weight2500kg
Maximum dig depth2500mm
Net power25kW / 14kW
Bucket capacity0.07m³
Overview LT1025 mini excavator with tail
Powerful, high-performance, compact design to help you work in a variety of applications
Benefits
Color and logo can be customized
Customize your exclusive work partner according to your ideas
Multiple brands of engines available
Recommend suitable engines for you according to the environmental protection requirements of your location
A variety of auxiliary tools are available
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
Overseas warehouse
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily
Introduction

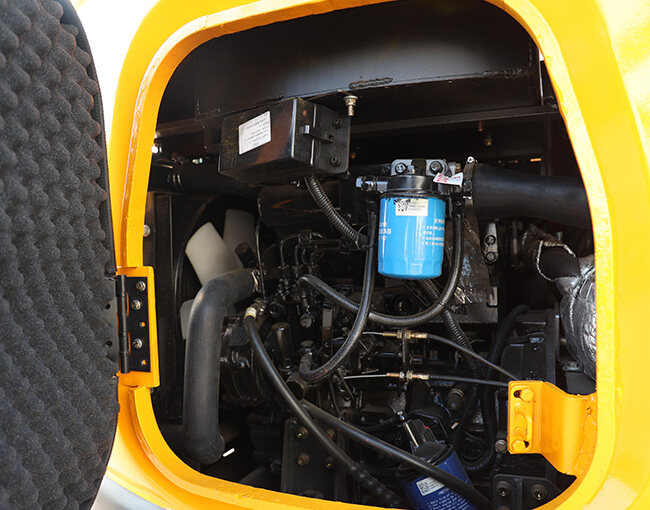

Engine
Easy to operate
Climbing ability
Customizable
Strong and reliable Reliability
Vote Mini excavators are precision engineered using components and systems from leading and proven sources. The LT1025 is designed to be rugged and reliable to extend uptime, reduce operating costs and increase productivity.At the same time, different auxiliary tools can be replaced to achieve multiple uses of one machine.
Special offers
Specifications
Model
Changchai390/Kubota D1105
Power
25kw 2400rpm/14kw 2200rpm
Operating weight
2500 kg
Bucket capacity
0.07m³
Excavator width
1200 mm
Max.climbing ability
≤35°

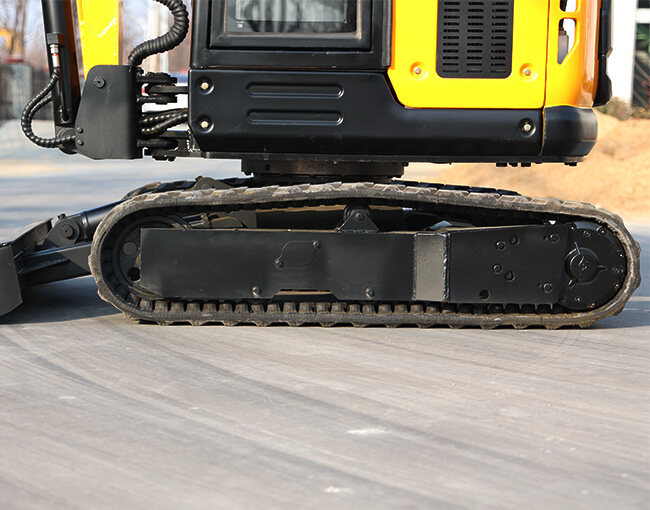

Track length
1650 mm
Multi-way valve
NHI
Length*Width*Height
3966*1350*2280 mm
Turning radius
1950 mm
Chassis ground clearance
480 mm
Track width
230 mm
Track height
400 mm
Max.digging height
3500 mm
Max.dumping height
2200 mm
Max.digging depth
2500 mm
Max.digging radius
4200 mm
Max.vertical digging depth
1930 mm
Max.lift height of dozer blade
165 mm
