- Operating weight3000kg
- Maximum dig depth2500mm
- Net power20kW / 18.1kW
- Bucket capacity0.1m³
Powerful, high-performance, compact design to help you work in a variety of applications
Customize your exclusive work partner according to your ideas
Recommend suitable engines for you according to the environmental protection requirements of your location
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily

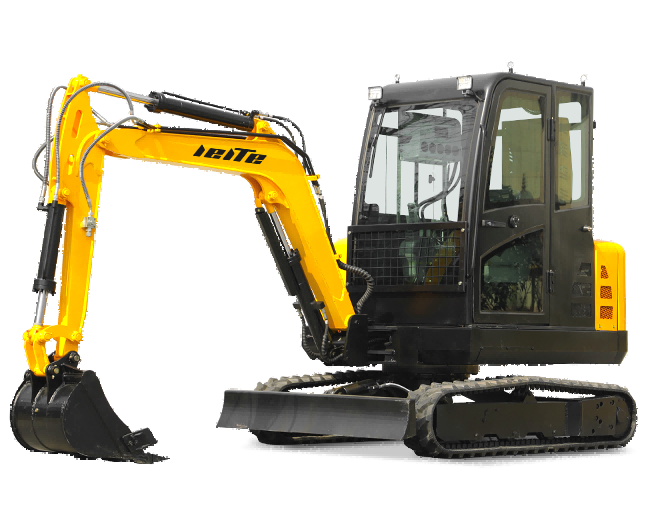

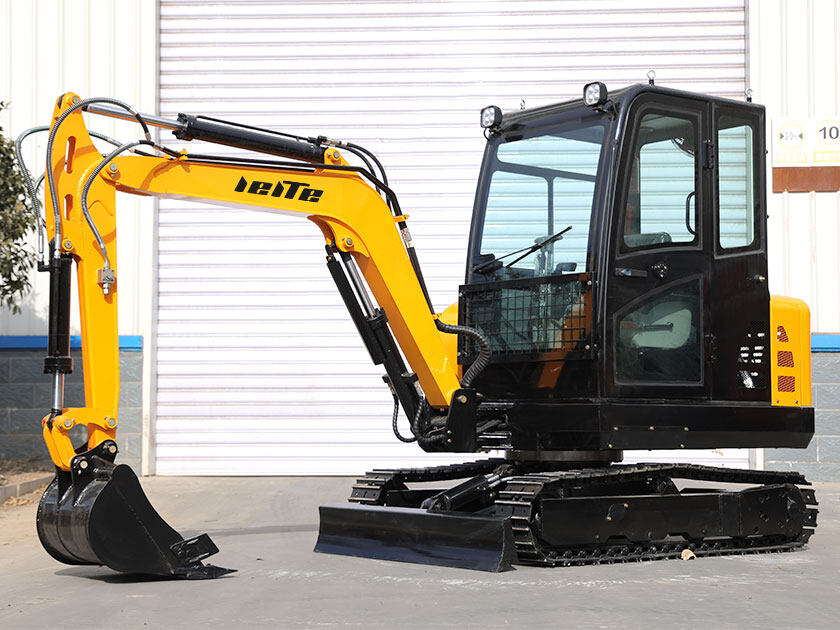

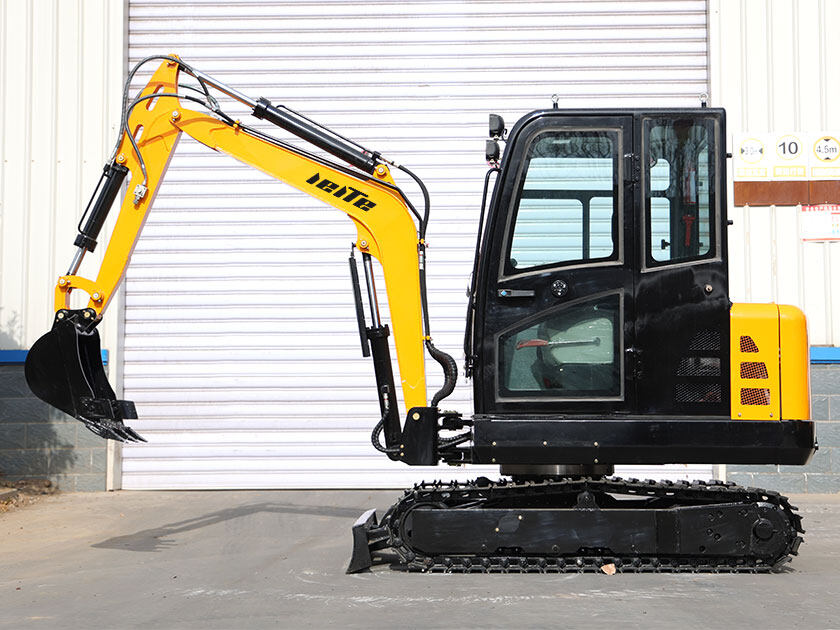

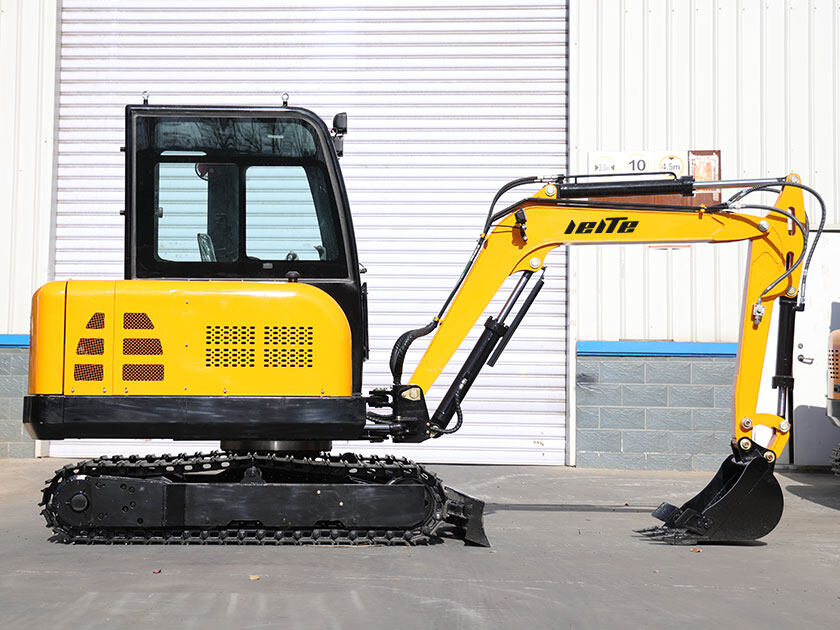

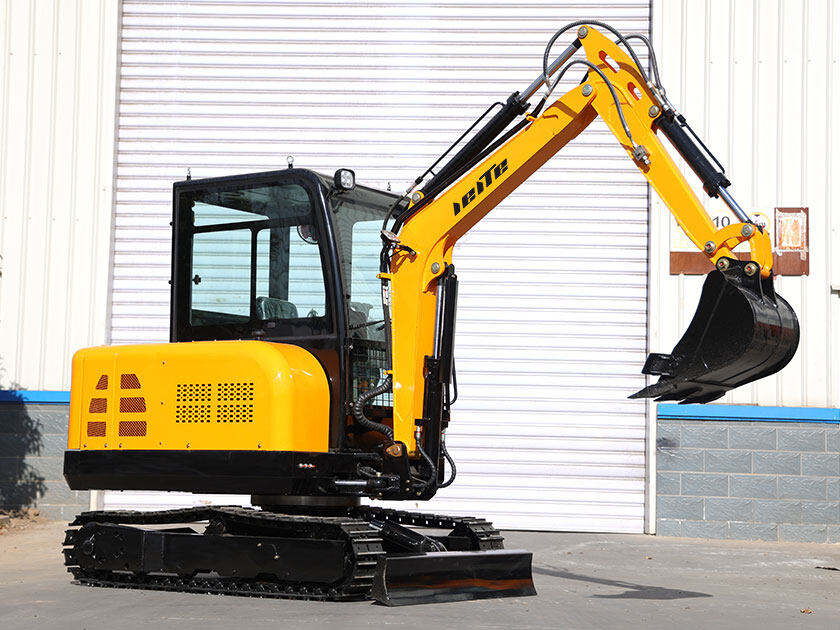

Vote Mini excavators are precision engineered using components and systems from leading and proven sources. The LT1030 is designed to be rugged and reliable to extend uptime, reduce operating costs and increase productivity.

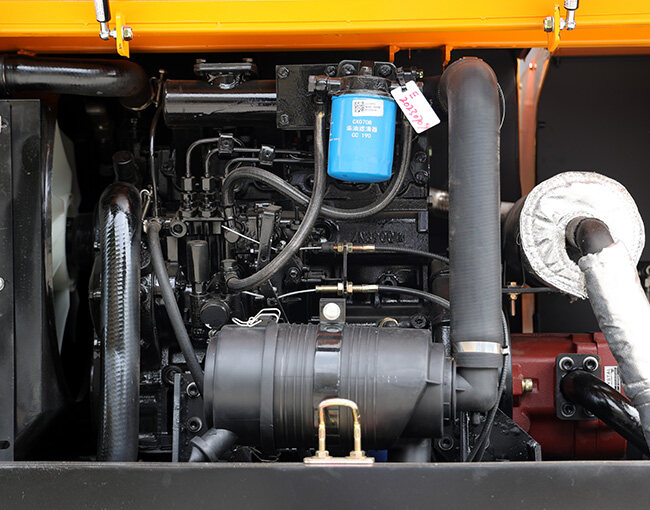

Model | Changchai390/Kubota 1703 |
Power | 20kw 2200rpm/18.1kw 2200rpm |
Operating weight | 3000 kg |
Bucket capacity | 0.1m³ |
Chassis width | 1350 mm |
Gradeability | ≤35° |
Transport length | 4180 mm |
Chassis ground clearance | 240 mm |
Length*Width*Height | 4180*1350*2200 mm |
Turning radius | 1300 mm |
Track length | 2000 mm |
Track width | 230 mm |
Volume of fuel tank | 20L |
Max.digging height | 3900 mm |
Max.dumping height | 2600 mm |
Max.digging depth | 2500 mm |
Max.digging radius | 5486 mm |
Max.vertical digging depth | 2300 mm |
Max.digging force | 22 KN |
