- Operating weight4000kg
- Maximum dig depth2976mm
- Net power18.2kW
- Bucket capacity0.07m³
Powerful, high-performance, compact design to help you work in a variety of applications
Customize your exclusive work partner according to your ideas

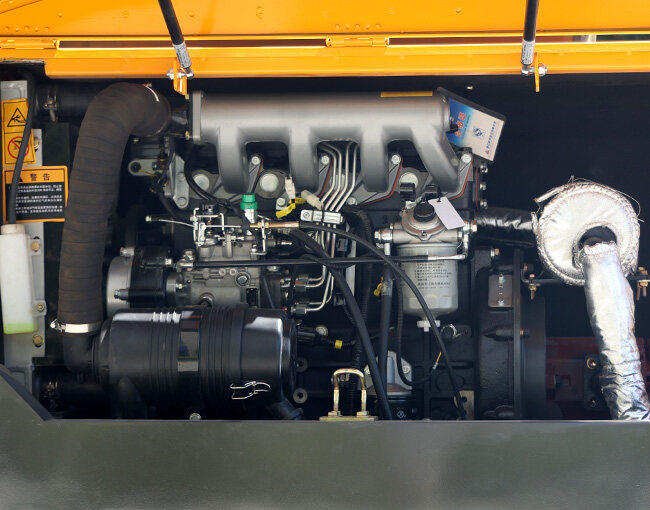

Recommend suitable engines for you according to the environmental protection requirements of your location
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily

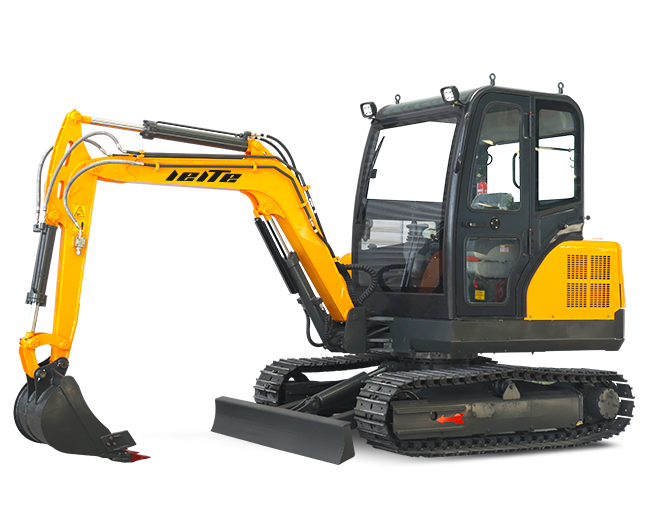

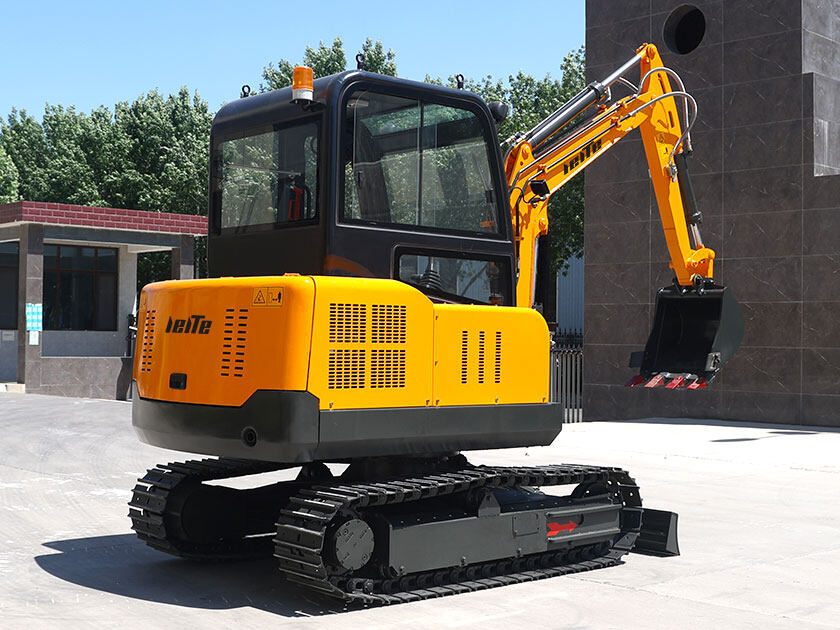

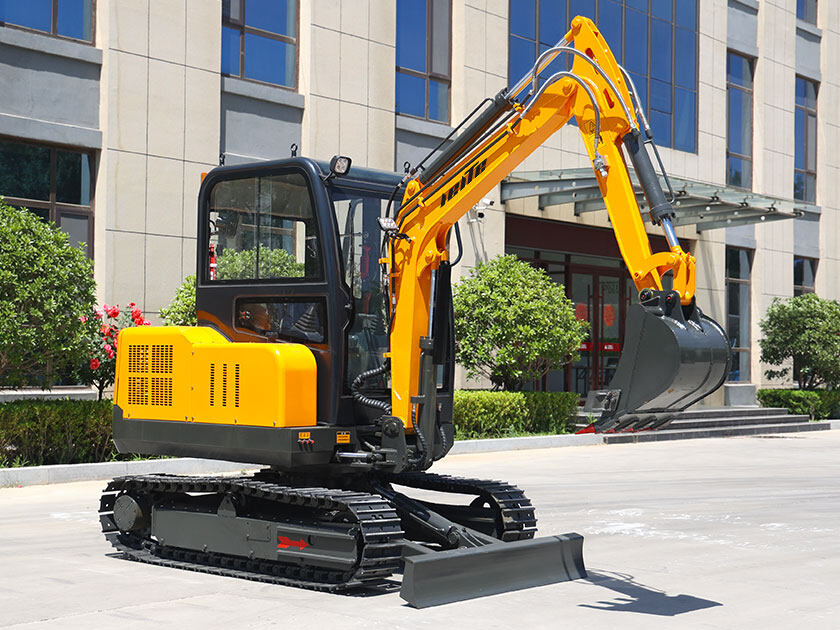

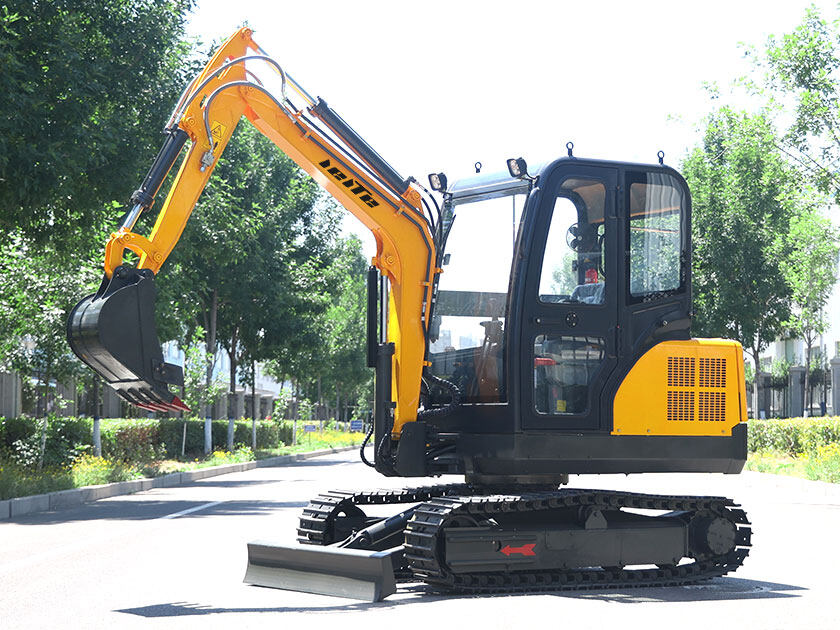

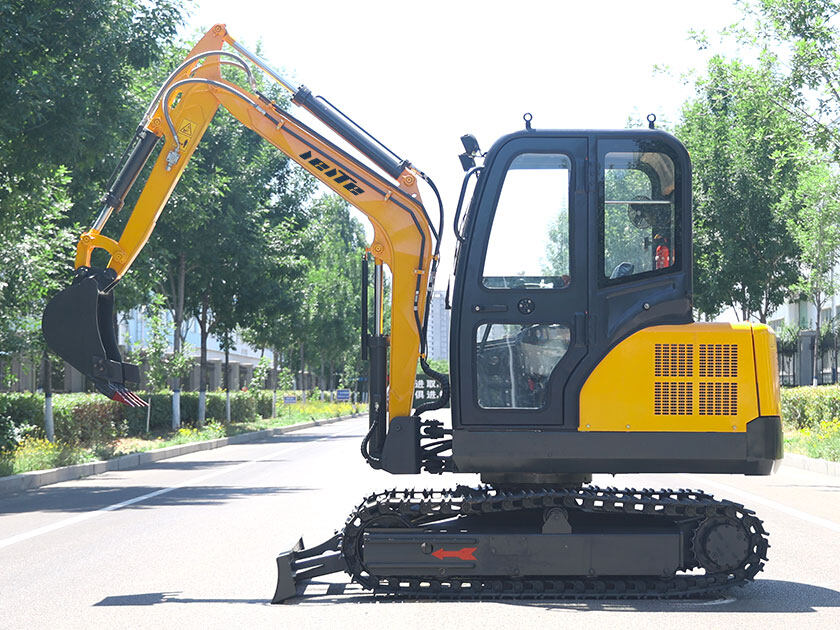

Mini excavators are precision engineered using components and systems from leading and proven sources. The LT1040 is designed to be rugged and reliable to extend uptime, reduce operating costs and increase productivity.
Model | Xinchai 490/Kubota 1703/Changchai |
Power | 36.8kw/18.2kw/18.4kw |
Operating weight | 4000 kg |
Bucket capacity | 0.07m³ |
Total length | 4200 mm |
Track ground length | 2100 mm |
Gradeability | 35° |

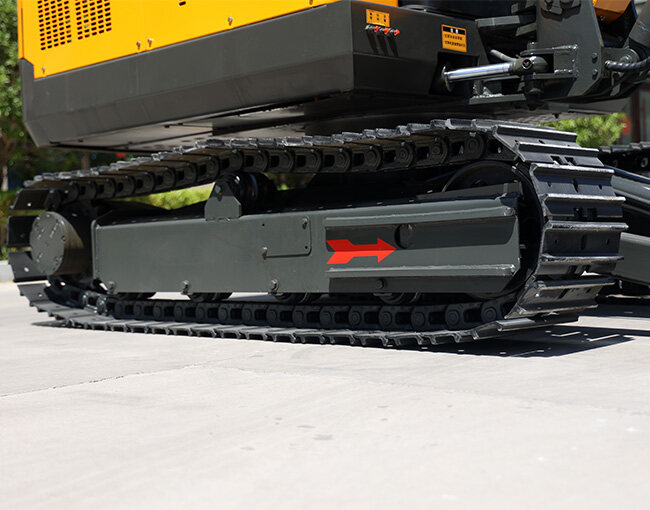

Track width | 230 mm |
Length*Width*Height | 4200*1500*2400 mm |
Rotation speed | 9-11 r/min |
Max.digging force | 55.6 kN |
Walking speed | 2.7-4.6km/h |
Fuel tank capacity | 20L |
Max.digging height | 3600 mm |
Max.dumping height | 3600 mm |
Max.digging depth | 2976 mm |
Max.digging distance | 3630 mm |
Turning radius | 1820 mm |
Tail turning radius | 1170 mm |
