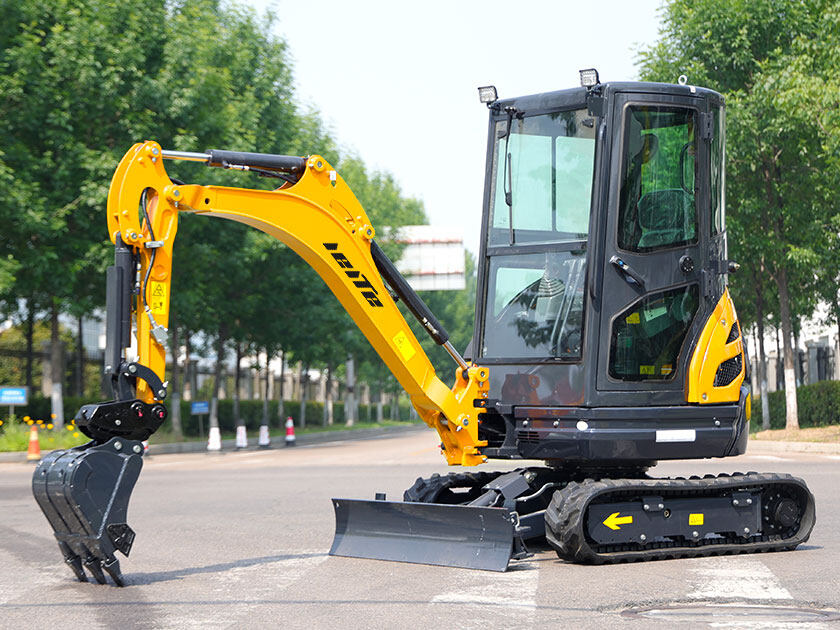

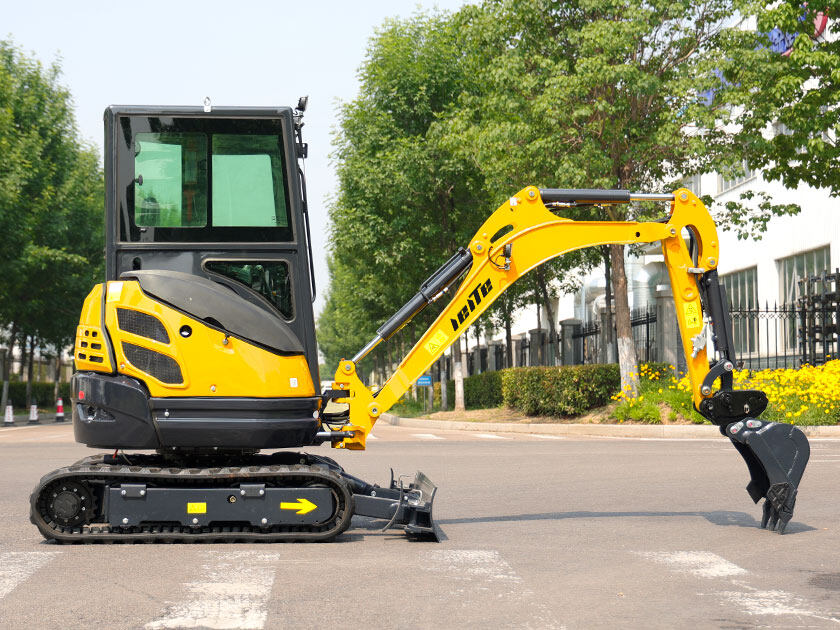

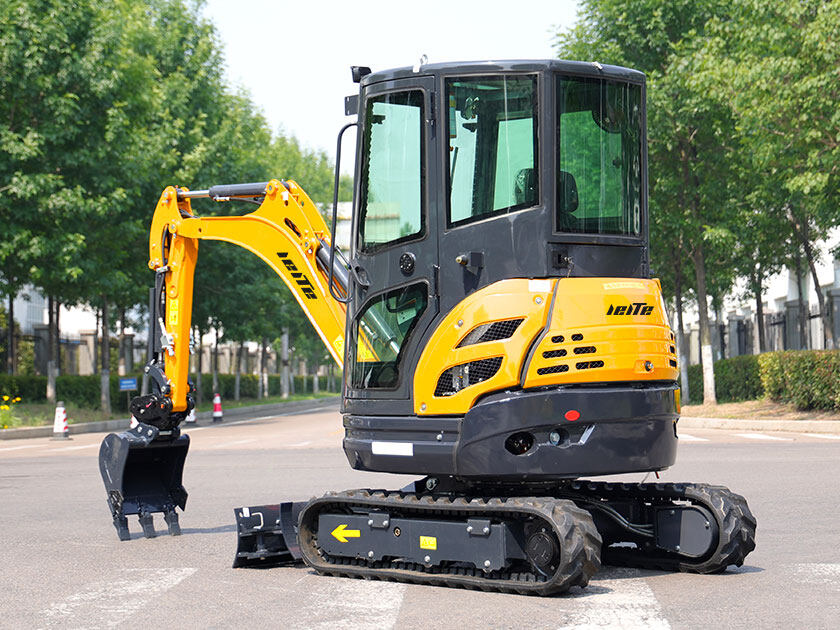

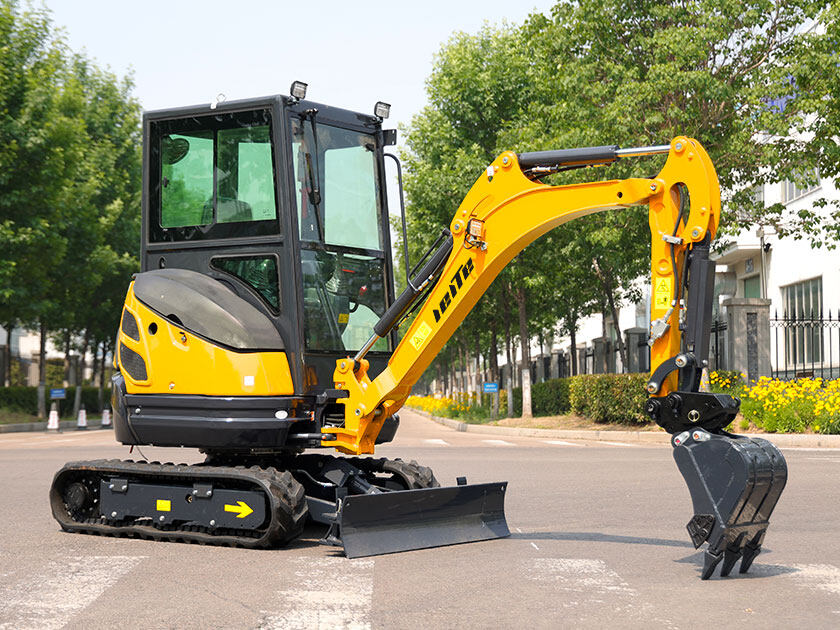

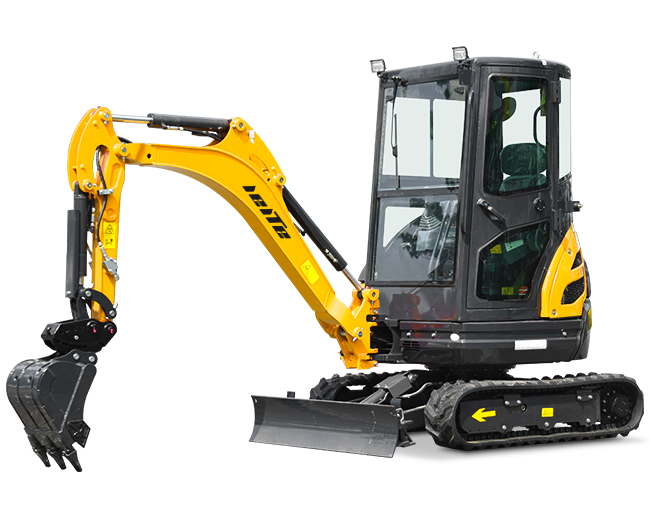

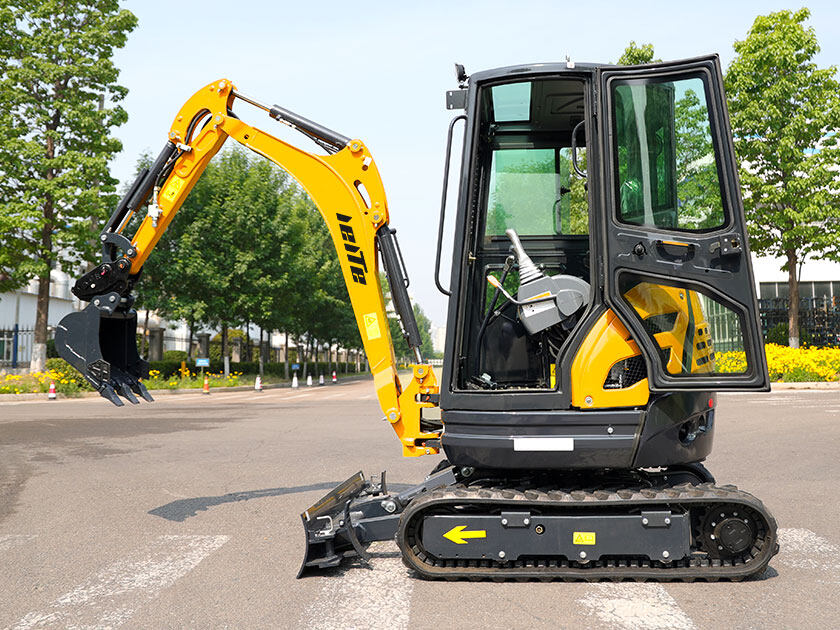

The LT1025S mini excavator is compact, highly maneuverable and has high lateral stability. It offers excellent value for general construction, landscaping and utility contractors. With its compact size, retractable undercarriage and dozer blade extension, this machine is ideal for getting through narrow doorways, fences and other passages.
Get a quote
View Video
Operating weight2500kg
Maximum dig depth2430mm
Net power15kW
Bucket capacity0.066m³
Overview LT1025S mini excavator without tail
Powerful, high-performance, compact design to help you work in a variety of applications
Benefits
Color and logo can be customized
Customize your exclusive work partner according to your ideas
A variety of auxiliary tools are available
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
A variety of auxiliary tools are available
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
Overseas warehouse
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily
Introduction

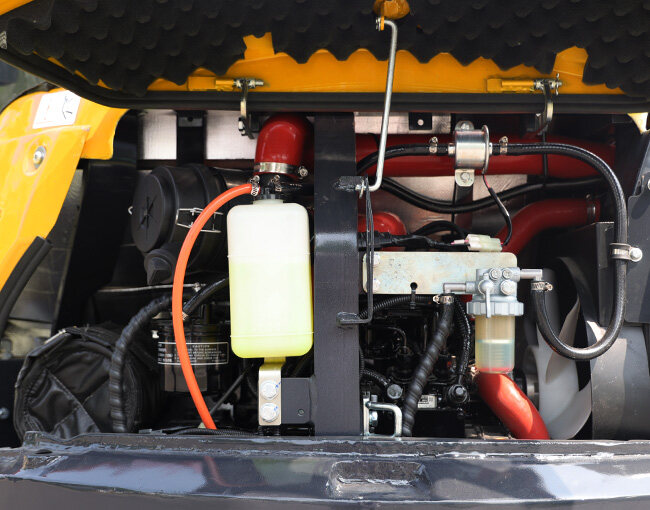

Engine

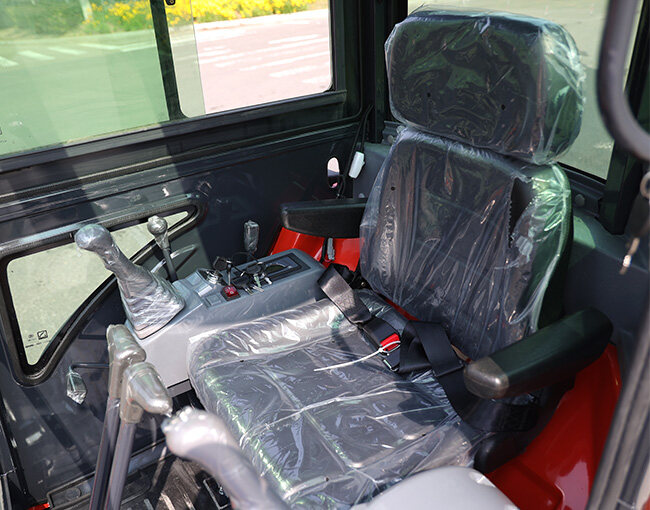

Easy to operate

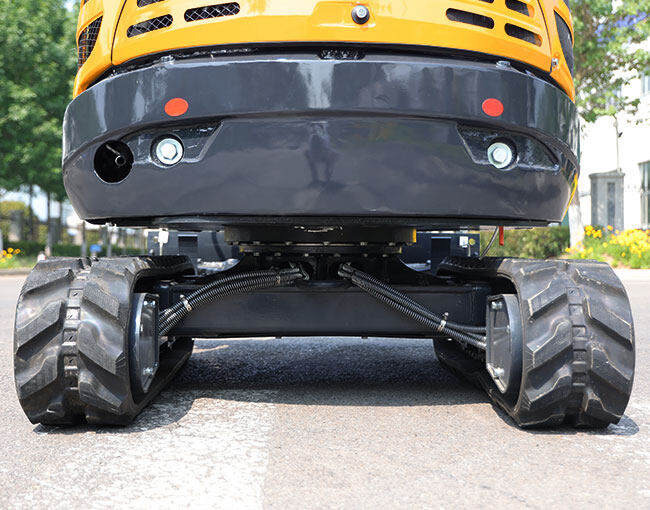

Climbing ability
Customizable
Strong and reliable Reliability
Leite Mini excavators are precision engineered using components and systems from leading and proven sources. The LT1025S is designed to be rugged and reliable to extend uptime, reduce operating costs and increase productivity.
Special offers
Specifications
Engine
Yanmar 3TNV76-P
Net power
15kw(PS)
Operating weight
2500 kg
Bucket capacity
0.066m³
Bucket width
460mm
Bucket Max.excavating force
18.4KN
Gradeability
58(30)°
Dozer blade(width*height)
1440*280 mm
Engine displacement
1.115L(cc)
Swing speed
9.2r/min
Min.turning radius
1850 mm
Min.digging radius
4100 mm
Swing angle
75/55°
Max.excavation height
3700 mm
Max.unloading height
2500 mm
Max.excavation depth
2430 mm
Max.vertical digging depth
1850 mm
Max.bulldozing depth
270 mm
Max.bulldozing height
340 mm
