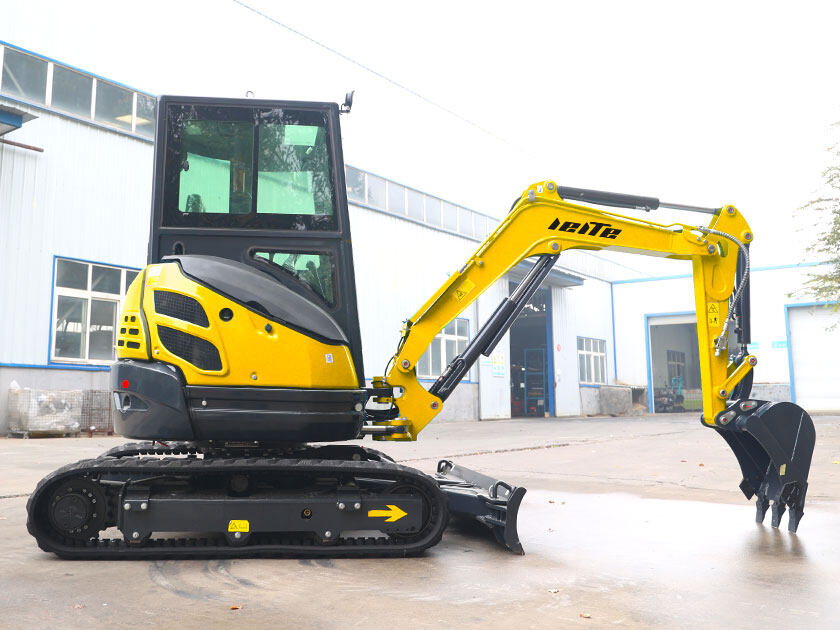

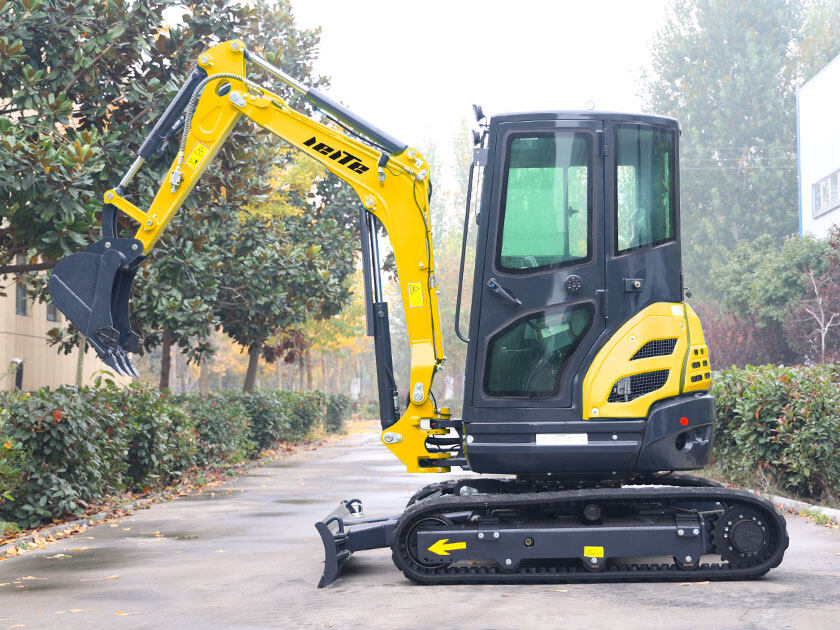

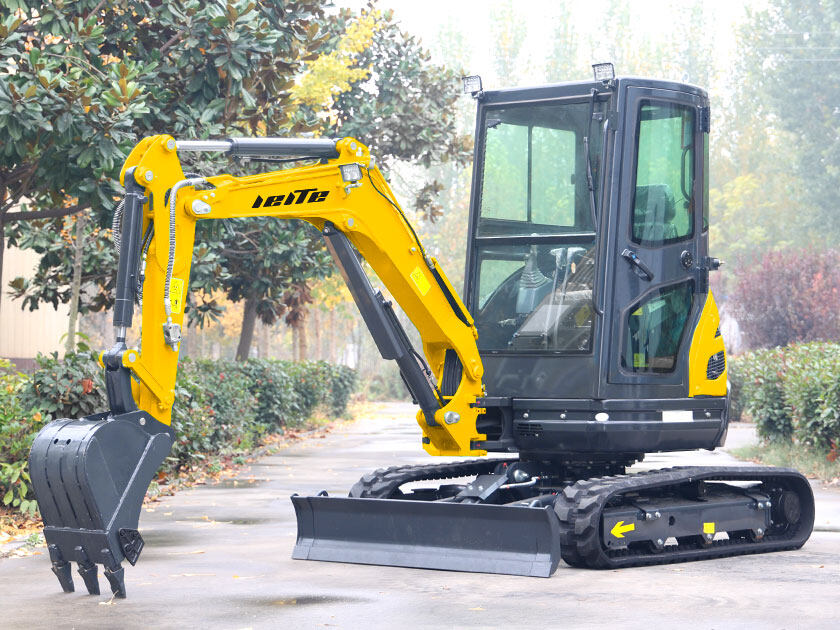

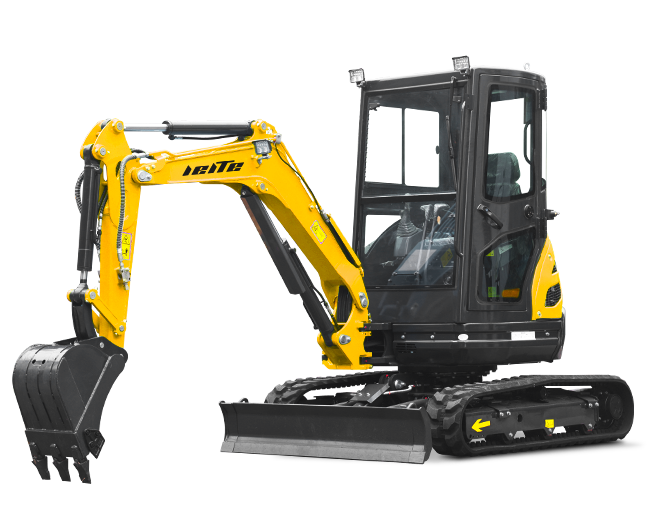

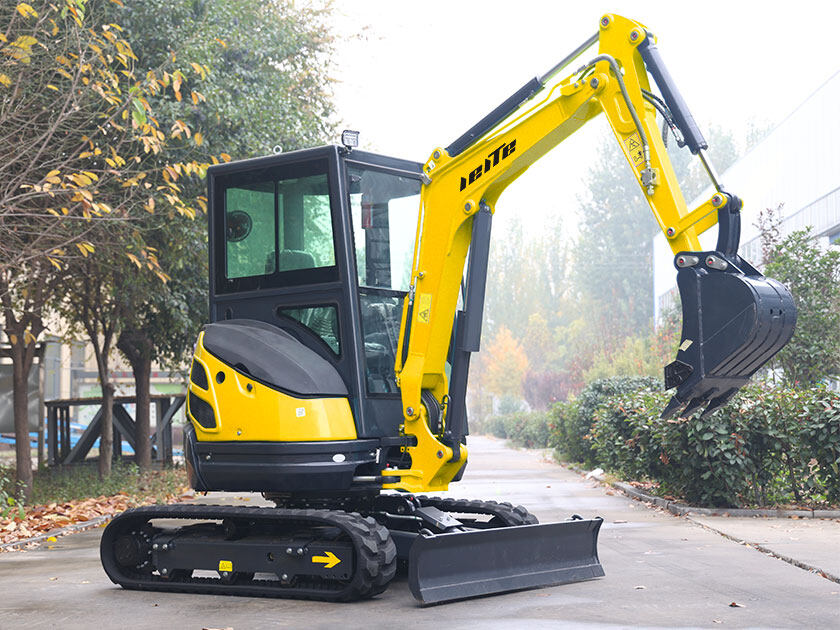

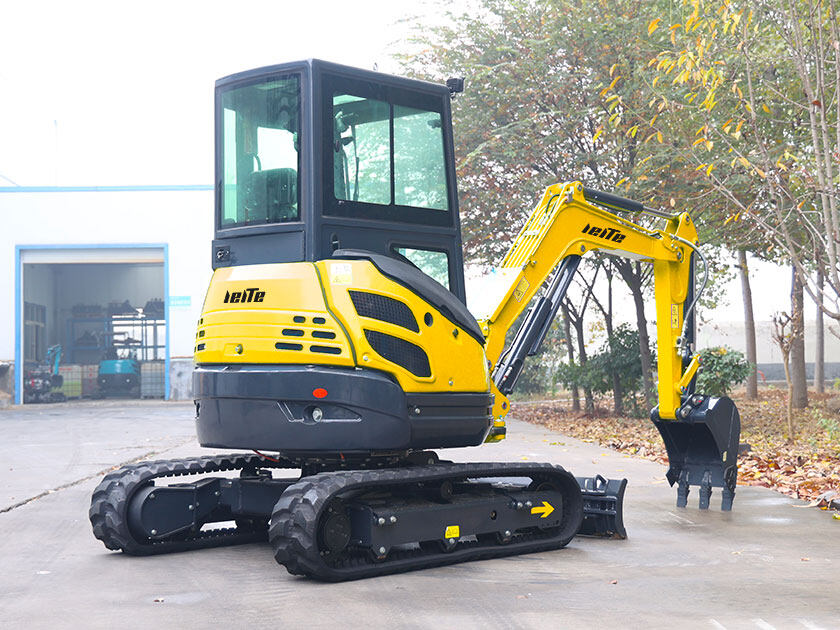

The LT1028S mini excavator is compact, highly maneuverable and has high lateral stability. It offers excellent value for general construction, landscaping and utility contractors. With its compact size, retractable undercarriage and dozer blade extension, this machine is ideal for getting through narrow doorways, fences and other passages.
Get a quote
View Video
Operating weight2800kg
Maximum dig depth2820mm
Net power15kW
Bucket capacity0.066m³
Overview LT1028S mini excavator without tail
Powerful, high-performance, compact design to help you work in a variety of applications
Benefits
Color and logo can be customized
Customize your exclusive work partner according to your ideas
A variety of auxiliary tools are available
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
A variety of auxiliary tools are available
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
Overseas warehouse
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily
Introduction
Engine
Easy to operate
Climbing ability
Customizable
Strong and reliable Reliability
Leite Mini excavators are precision engineered using components and systems from leading and proven sources. The LT1028S is designed to be rugged and reliable to extend uptime, reduce operating costs and increase productivity.
Special offers
Specifications
Engine
YANMAR 3TNV76
Net power
15kw/2400rpm
Operating weight
2800 kg
Bucket capacity
0.066m³
Excavator width
1300mm stretch 1500mm
Max.excavating force
18.4KN
Gradeability
30°
Fuel tank capacity
28L
Overall dimension
3982*1300*2380 mm
Track length
1860 mm
Track width
250 mm
Max.digging radius
4246 mm
Chassis ground clearance
170 mm
Turning radius
2004 mm
Max.excavation height
4122 mm
Max.unloading height
2882 mm
Max.excavation depth
2820 mm
Max.digging radius
4246 mm
Max.vertical digging depth
2300 mm
