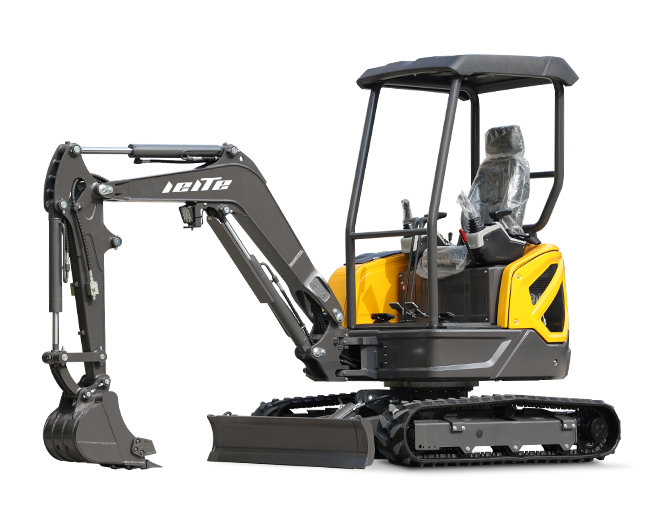

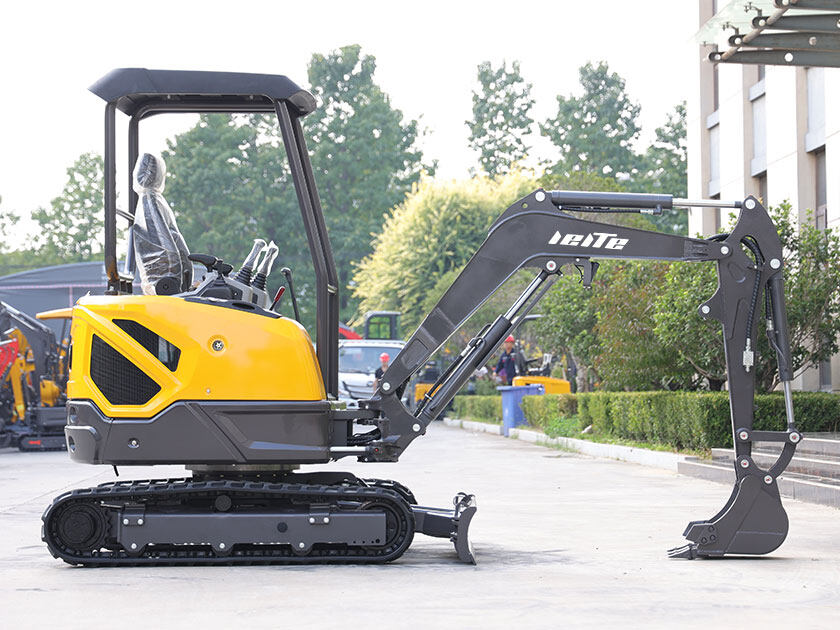

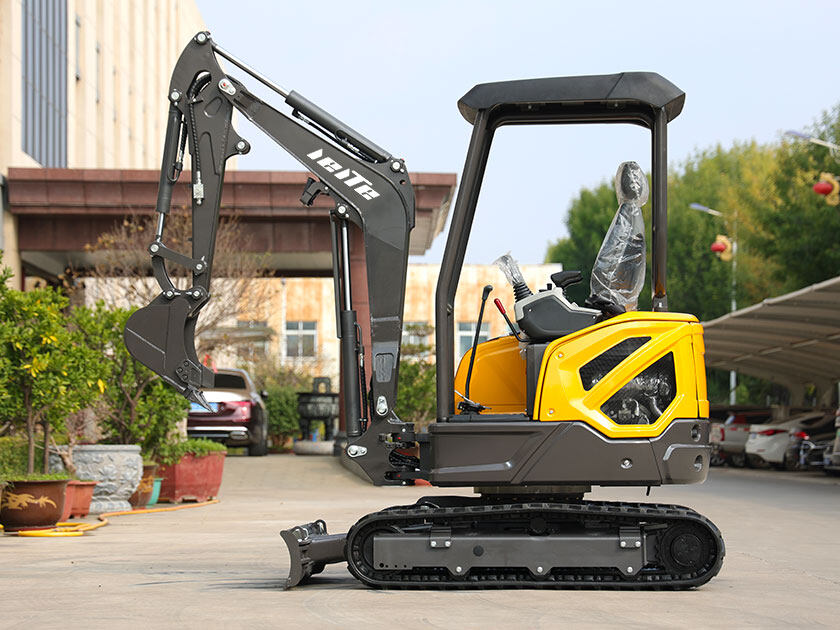

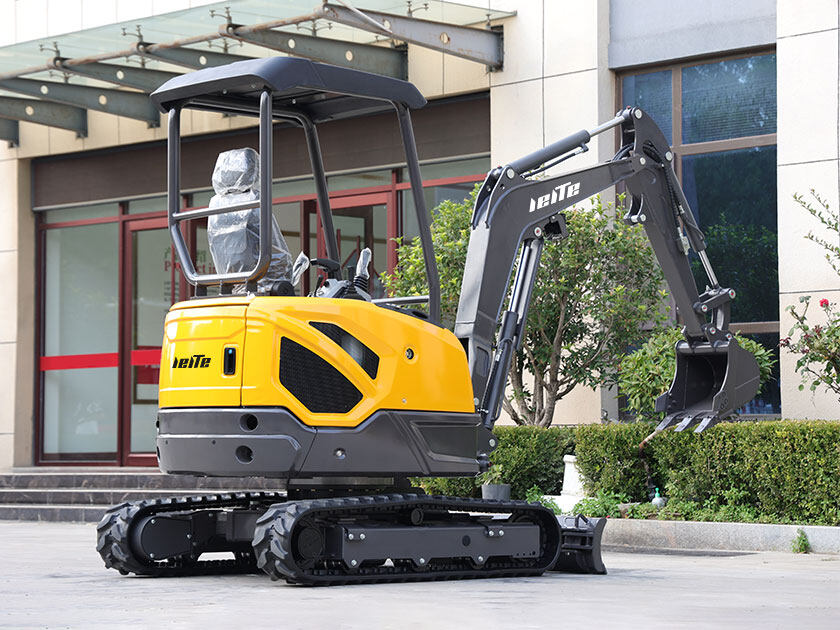

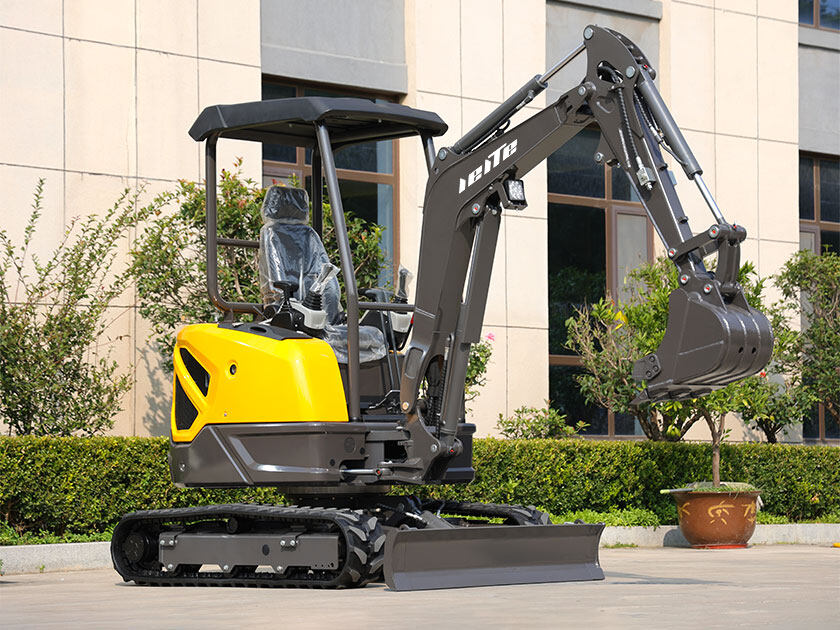

The LT1030S mini excavator is compact, highly maneuverable and has high lateral stability. It offers excellent value for general construction, landscaping and utility contractors. With its compact size, retractable undercarriage and dozer blade extension, this machine is ideal for getting through narrow doorways, fences and other passages.
Get a quote
View Video
Operating weight3000kg
Maximum dig depth2260mm
Net power15.6kW
Bucket capacity0.06m³
Overview LT1030S mini excavator without tail
Powerful, high-performance, compact design to help you work in a variety of applications
Benefits
Color and logo can be customized
Customize your exclusive work partner according to your ideas
A variety of auxiliary tools are available
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
A variety of auxiliary tools are available
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
Overseas warehouse
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily
Introduction
Engine

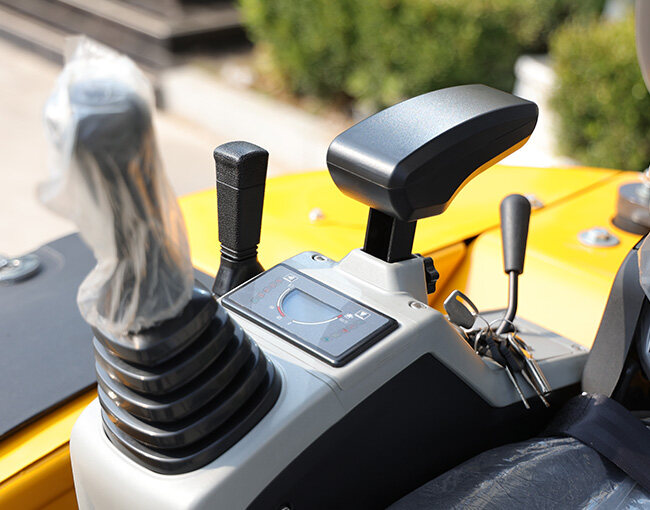

Easy to operate
Climbing ability
Customizable
Strong and reliable Reliability
Leite Mini excavators are precision engineered using components and systems from leading and proven sources. The LT1030S is designed to be rugged and reliable to extend uptime, reduce operating costs and increase productivity.
Special offers
Specifications
Engine
Kubota D1105
Net power
15.6kw 2400rpm
Operating weight
3000 kg
Bucket capacity
0.06m³
Swing speed
8 rpm
Max.torque
70.3N.m/(1600r/min)
Max.gradeability
30°
Max.travel speed
3.1/2 km/h
Length*Width*Height
3930*1500*2550 mm
Max.digging force
28 kN
Min.turning radius
1855 mm
Max.bulldozing height
200 mm
Max.bulldozing depth
300 mm
Max.digging height
3850 mm
Max.unloading height
2800 mm
Max.digging depth
2260 mm
Max.digging radius
4230 mm
Max.vertical digging depth
1820 mm
Max.ground clearance
150 mm
