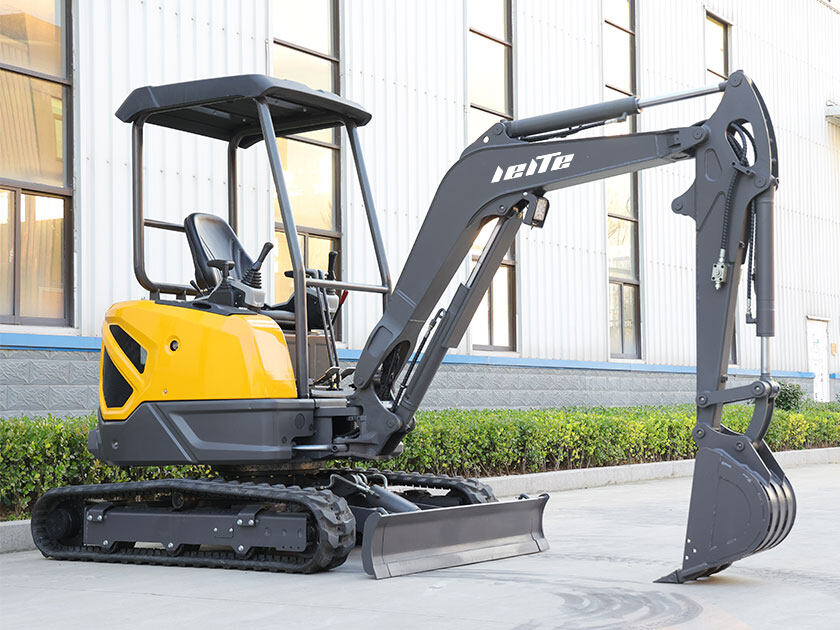

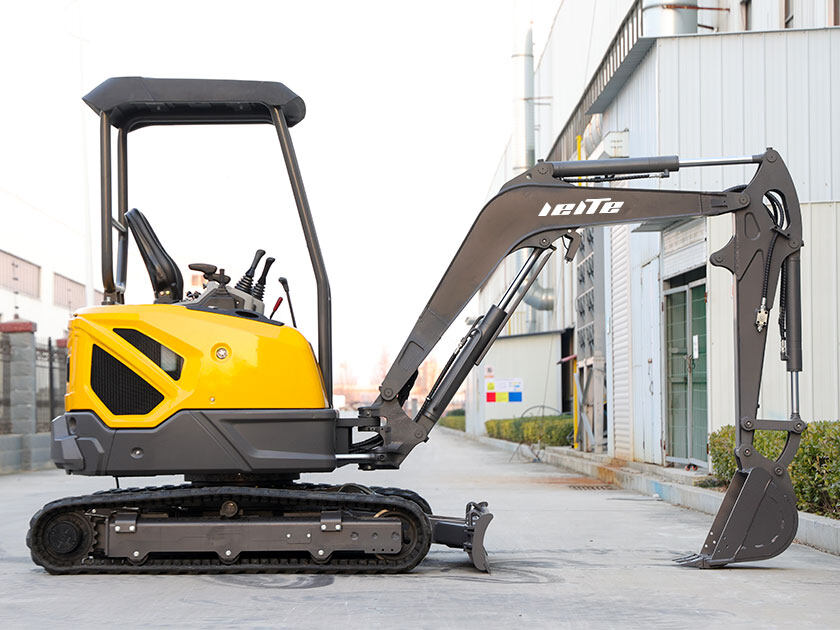

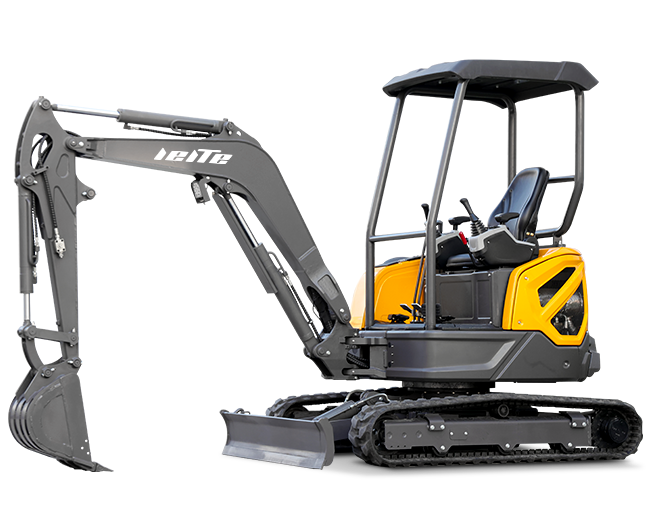

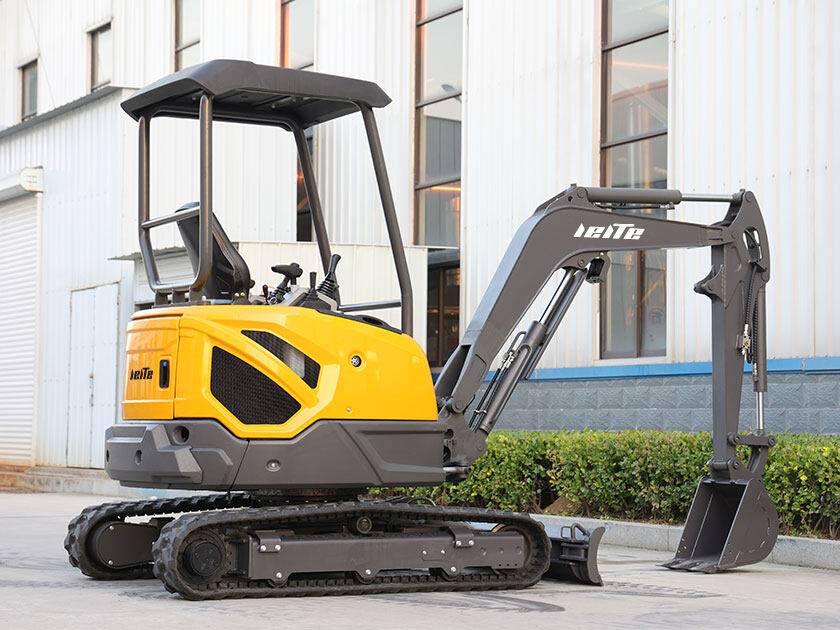

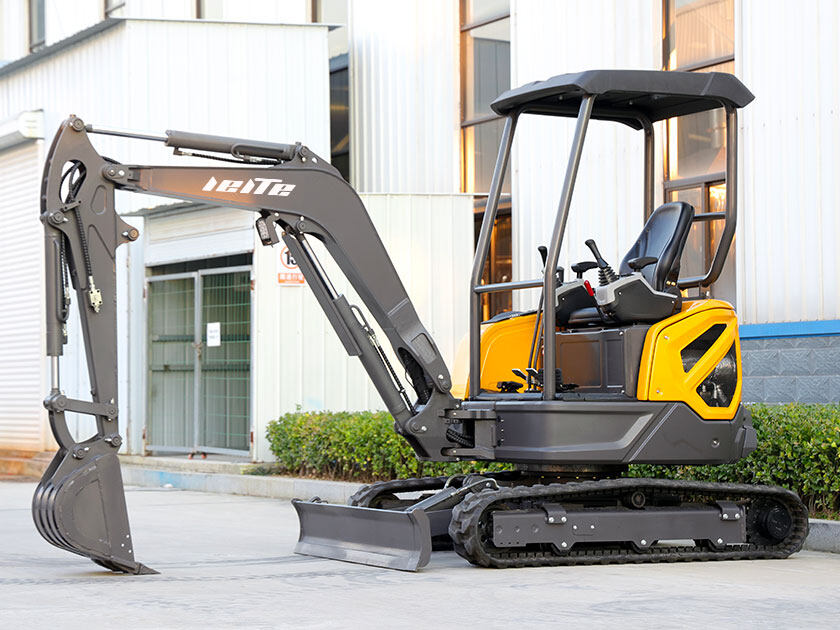

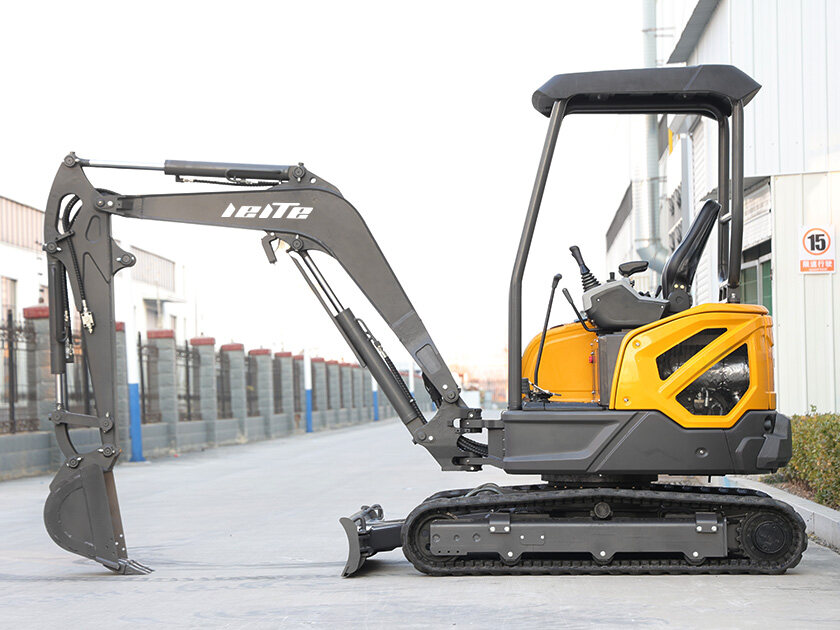

The LT1035S mini excavator is compact, highly maneuverable and has high lateral stability. It offers excellent value for general construction, landscaping and utility contractors. With its compact size, retractable undercarriage and dozer blade extension, this machine is ideal for getting through narrow doorways, fences and other passages.
Get a quote
View Video
Operating weight3500kg
Maximum dig depth2600mm
Net power26.1kW
Bucket capacity0.06m³
Overview LT1035S mini excavator without tail
Powerful, high-performance, compact design to help you work in a variety of applications
Benefits
Color and logo can be customized
Customize your exclusive work partner according to your ideas
A variety of auxiliary tools are available
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
A variety of auxiliary tools are available
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
Overseas warehouse
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily
Introduction

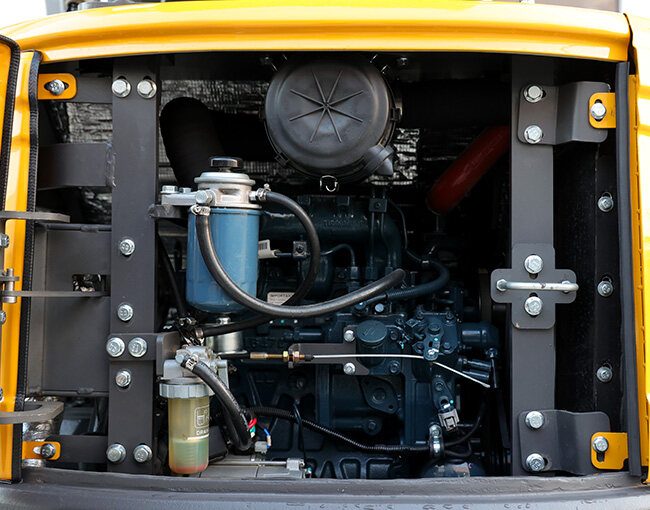

Engine

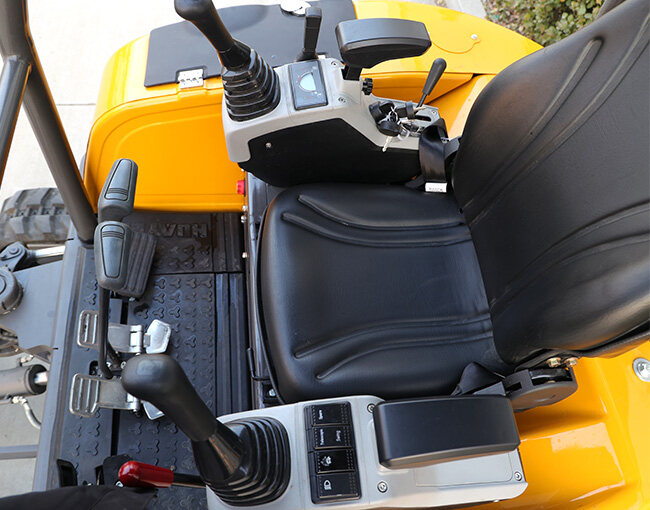

Easy to operate
Climbing ability
Customizable
Strong and reliable Reliability
Leite Mini excavators are precision engineered using components and systems from leading and proven sources. The LT1035S is designed to be rugged and reliable to extend uptime, reduce operating costs and increase productivity.
Special offers
Specifications
Engine
Kubota 1703
Net power
26.1kW
Operating weight
3500 kg
Bucket capacity
0.06m³
Width of platform
1350 mm
Length of crawler
1900 mm
Width of crawler
250 mm
Length*Width*Height
4130*1500*2550 mm
Min.tail swing radius
930 mm
Track gauge
1560 mm
Counterweight clearance
490 mm
Track height
400 mm
Max.digging radius
4620 mm
Max.digging height
4260 mm
Max.unloading height
3000 mm
Max.digging depth
2600 mm
Max.digging radius
4620 mm
Max.vertical digging depth
2150 mm
Min.ground clearance
150 mm
