- Operating weight4000kg
- Maximum dig depth3165mm
- Net power18.2kW
- Bucket capacity0.12m³
Powerful, high-performance, compact design to help you work in a variety of applications
Customize your exclusive work partner according to your ideas
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily

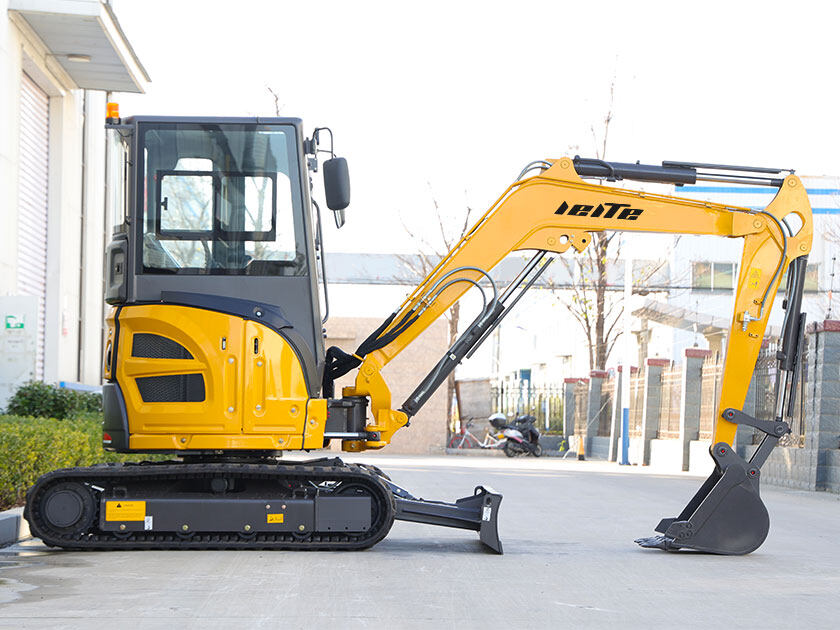

Leite Mini excavators are precision engineered using components and systems from leading and proven sources. The LT1040S is designed to be rugged and reliable to extend uptime, reduce operating costs and increase productivity.

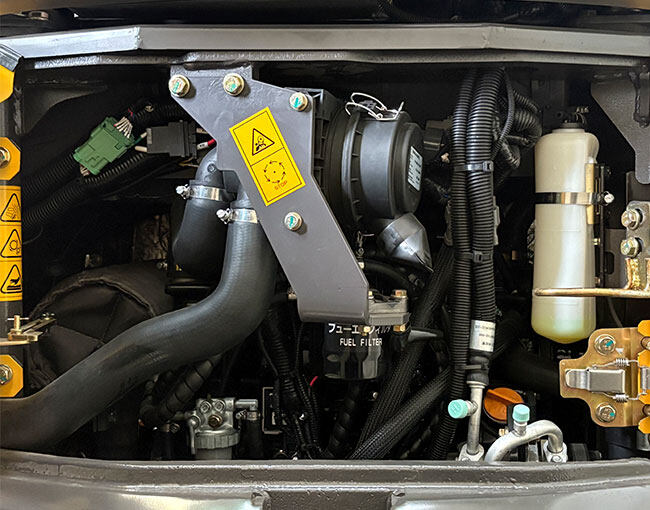

Engine | YANMAR 3TNV88F |
Net power | 18.2kw/2200rpm |
Operating weight | 4000 kg |
Bucket capacity | 0.12m³ |
Volume of fuel tank | 41L |
Main pump flow | 99 Mpa |
Rated flow | 100 Mpa |
Track width | 300 mm |
Max.climbing degree | 35° |
Travel speed | 2.7/4.5 km/h |
Traction | 38.5kN |
Swing speed | 9.5 r/min |
Drive mode | Hydraulic |
Max.digging height | 4920 mm |
Max.dumping height | 3490 mm |
Max.digging depth | 3165 mm |
Max.digging radius | 5260 mm |
Arm digging force | 24kN |
Bucket digging force | 30kN |
