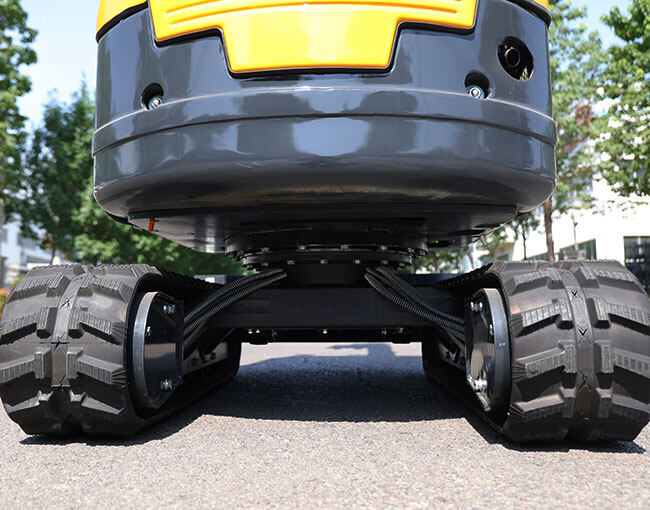

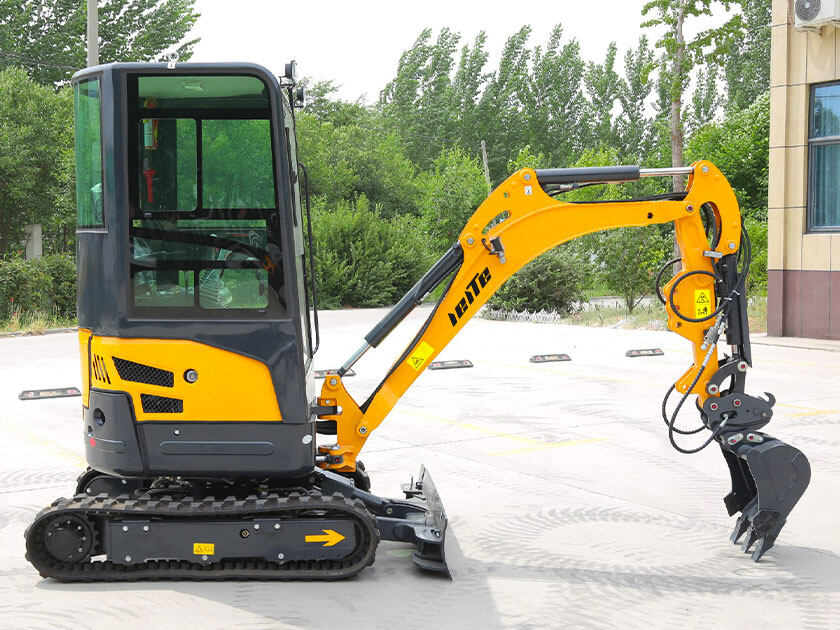

The LT1020S mini excavator is compact, highly maneuverable and has high lateral stability. It offers excellent value for general construction, landscaping and utility contractors. With its compact size, retractable undercarriage and dozer blade extension, this machine is ideal for getting through narrow doorways, fences and other passages.
Get a quote
View Video
Operating weight2000kg
Maximum dig depth2120mm
Net power10.2kW
Bucket capacity0.04m³

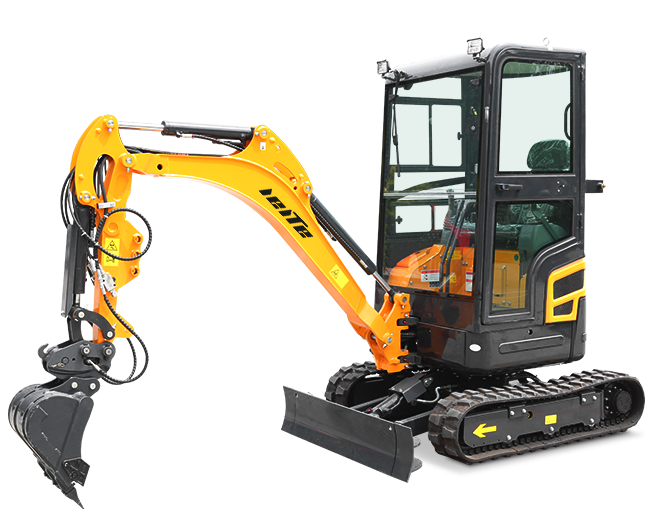

Overview LT1020S mini excavator without tail
Powerful, high-performance, compact design to help you work in a variety of applications
Benefits
Color and logo can be customized
Customize your exclusive work partner according to your ideas
A variety of auxiliary tools are available
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
A variety of auxiliary tools are available
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
Overseas warehouse
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily
Introduction

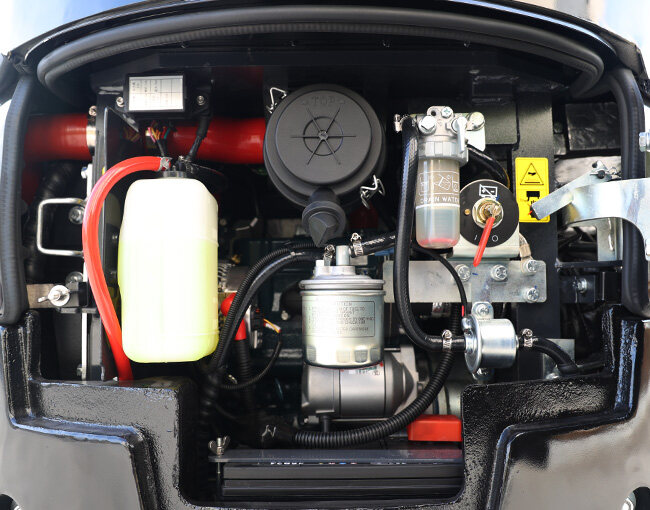

Engine

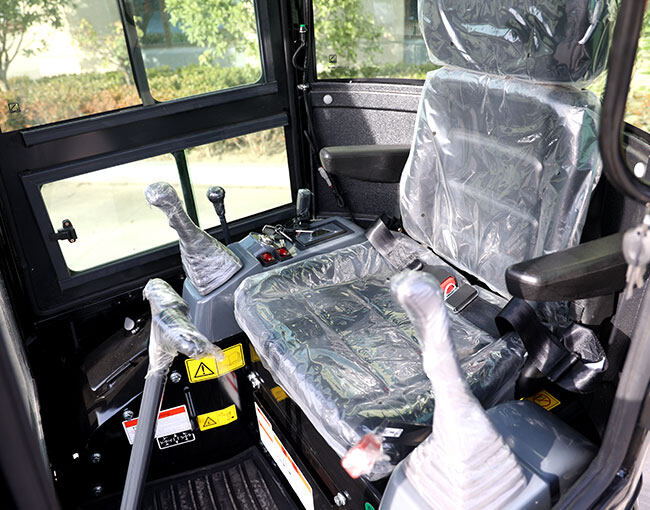

Easy to operate
Climbing ability
Customizable
Strong and reliable Reliability
Leite Mini excavators are precision engineered using components and systems from leading and proven sources. The LT1018S is designed to be rugged and reliable to extend uptime, reduce operating costs and increase productivity.
Special offers
Specifications
Engine
Kubota D722
Net power
10.2kw
Operating weight
2000 kg
Bucket capacity
0.04m³
Dozer blade width(extend/retract)
990/1240 mm
Dozer blade height
270 mm
Track length
1450 mm
Wheel spacing
1120 mm
Length*Width*Height
3300*1110*2360 mm
Standard bucket width(with/without side teeth)
440/400 mm
Min.turning radius at front end
1660 mm
Track center distance
883 mm
Boom height
2635 mm
Max.excavation height
3310 mm
Max.unloading height
2370 mm
Max.excavation depth
2120 mm
Max. excavation distance
3640 mm
Max.vertical digging depth
1535 mm
Max.digging ground distance
3570 mm
Get the offer

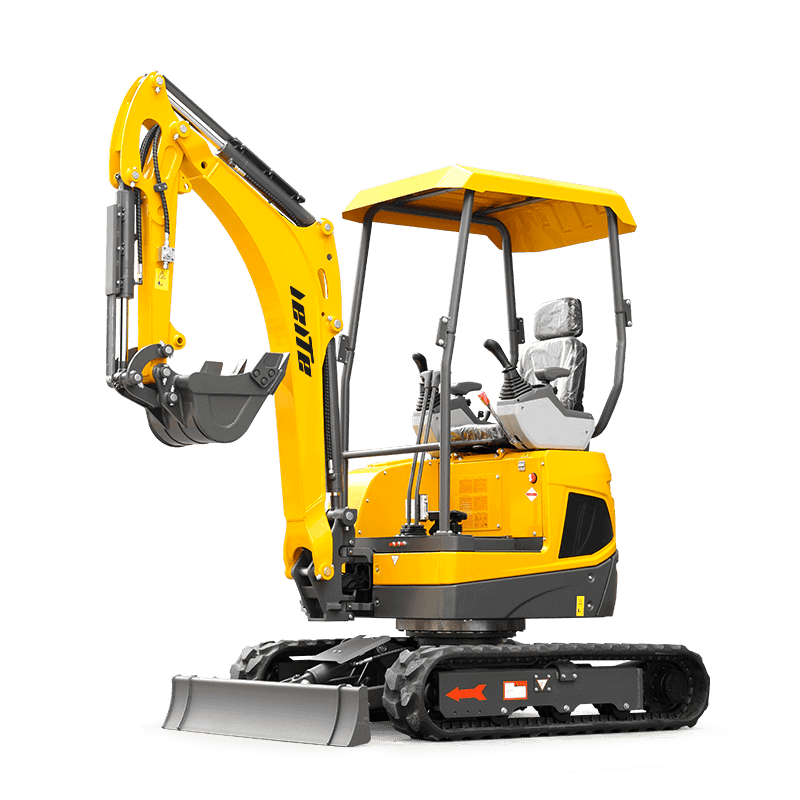

Hot selling models
