- Operating weight2000kg
- Maximum dig depth2200mm
- Net power10.3kW / 11.2kW
- Bucket capacity0.05m³
Powerful, high-performance, compact design to help you work in a variety of applications
Customize your exclusive work partner according to your ideas
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily

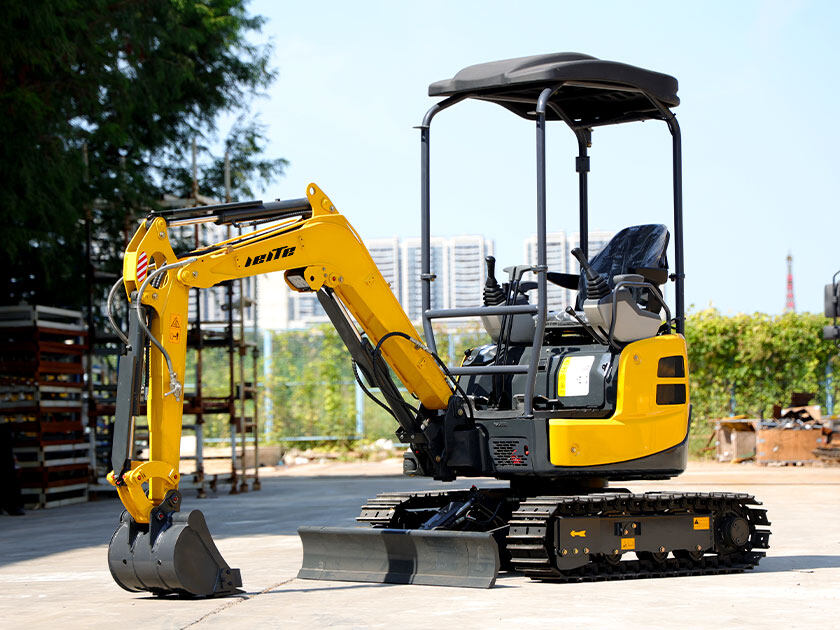

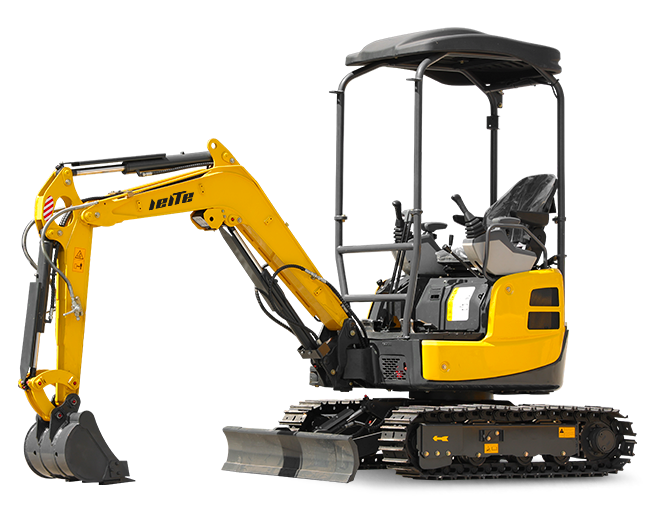

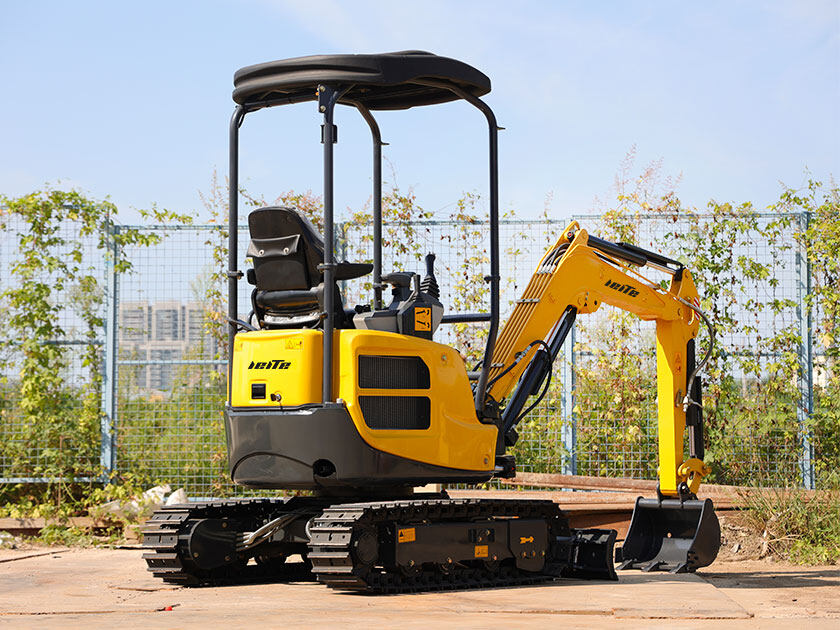

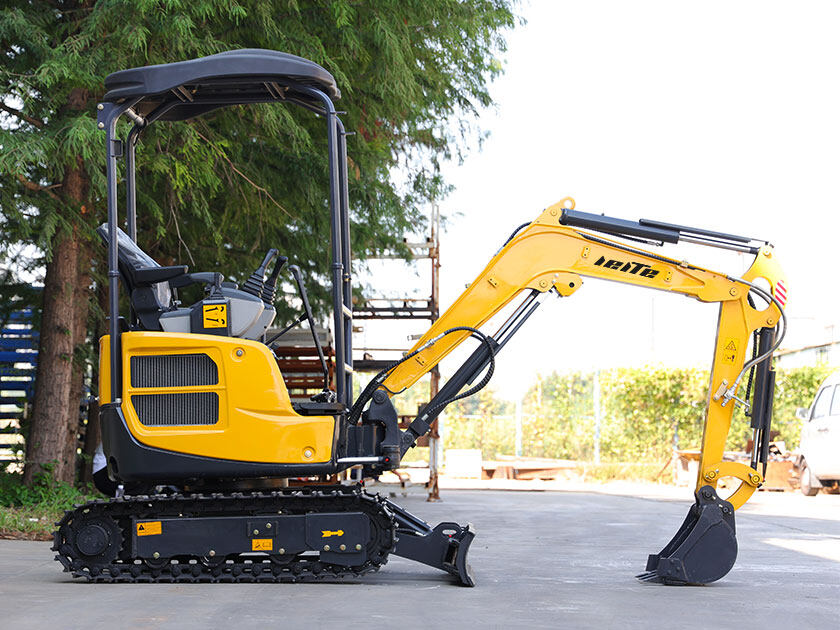

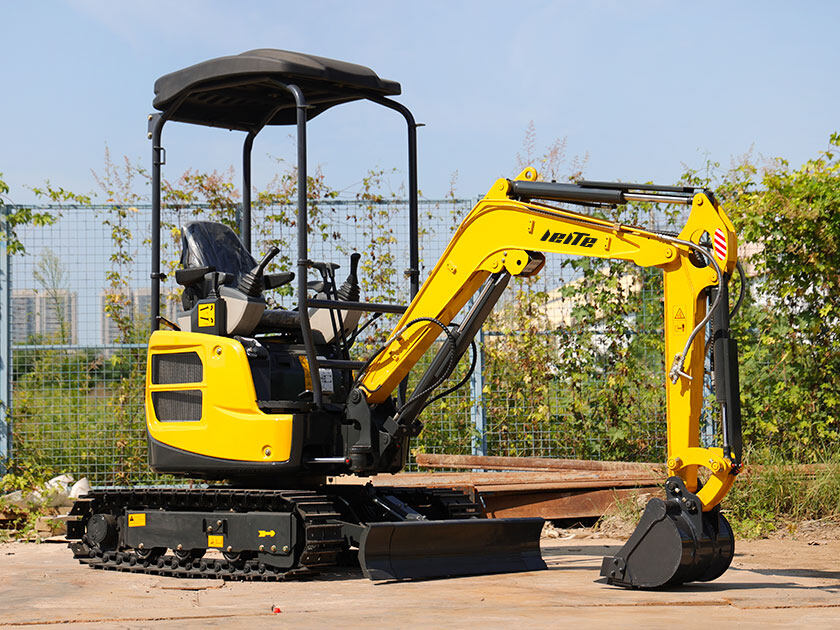

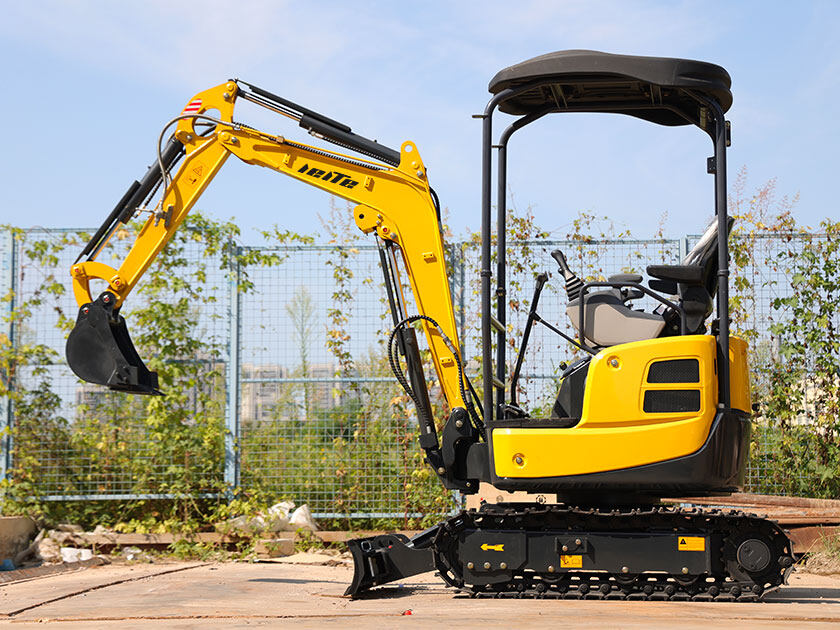

Leite Mini excavators are precision engineered using components and systems from leading and proven sources. The LT1020S is designed to be rugged and reliable to extend uptime, reduce operating costs and increase productivity.
Engine | Yanmar |
Net power | 10.3kw/11.2kw |
Operating weight | 2000 kg |
Bucket capacity | 0.05m³ |
Volume of fuel tank | 20 L |
Travel speed | 2.2/4.2 km/h |
Max.climbing degree | 55° |
Overall height(o top of boom) | 1450 mm |
Tail swing radius | 650 mm |
Boom length | 1720 mm |
Arm length | 950 mm |
Track length | 1530 mm |
Track width | 950/1280 mm |
Max.digging height | 3690 mm |
Max.dumping height | 2630 mm |
Max.digging depth | 2200 mm |
Min.swing radius | 1520 mm |
Max.digging reach | 2810 mm |
Min.ground distance | 175 mm |
