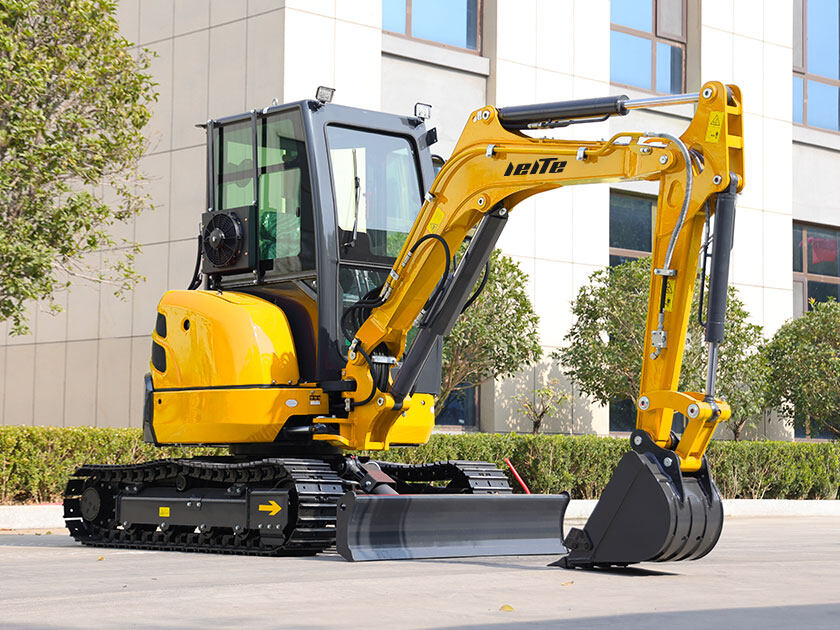

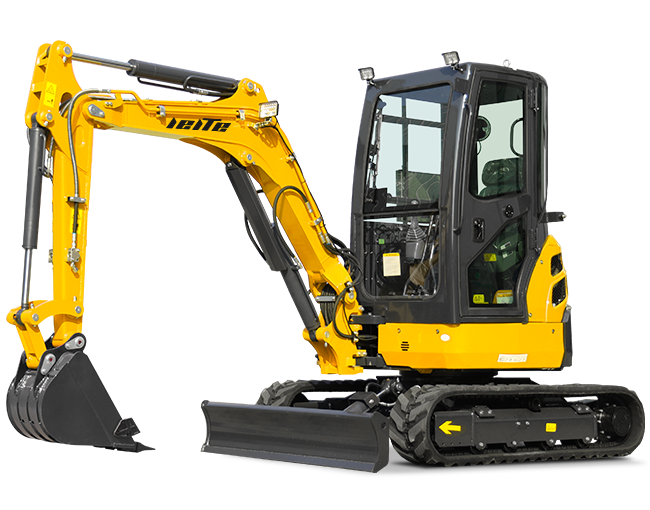

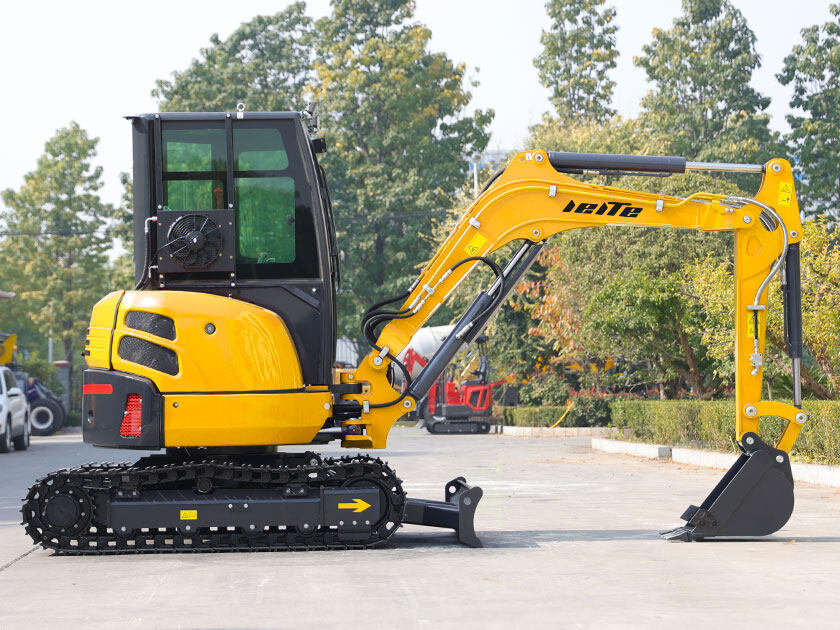

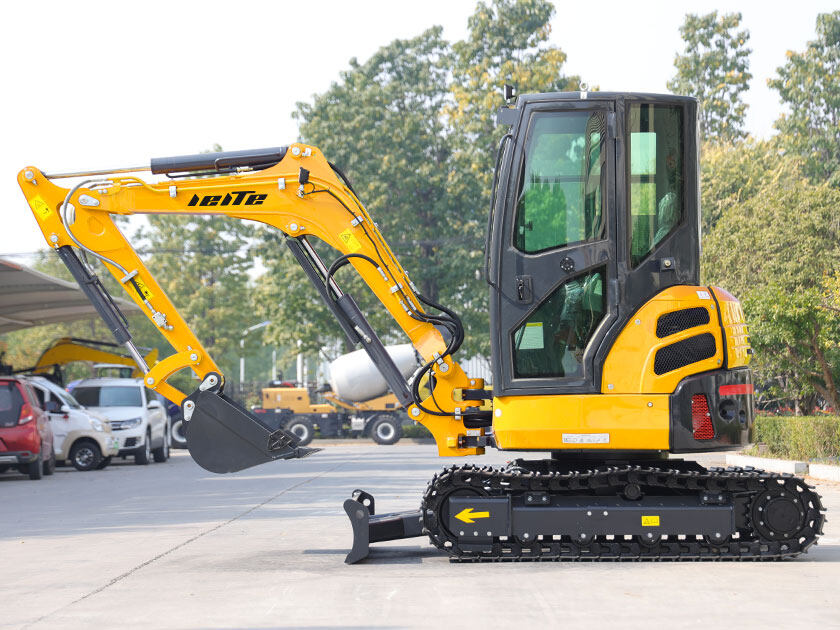

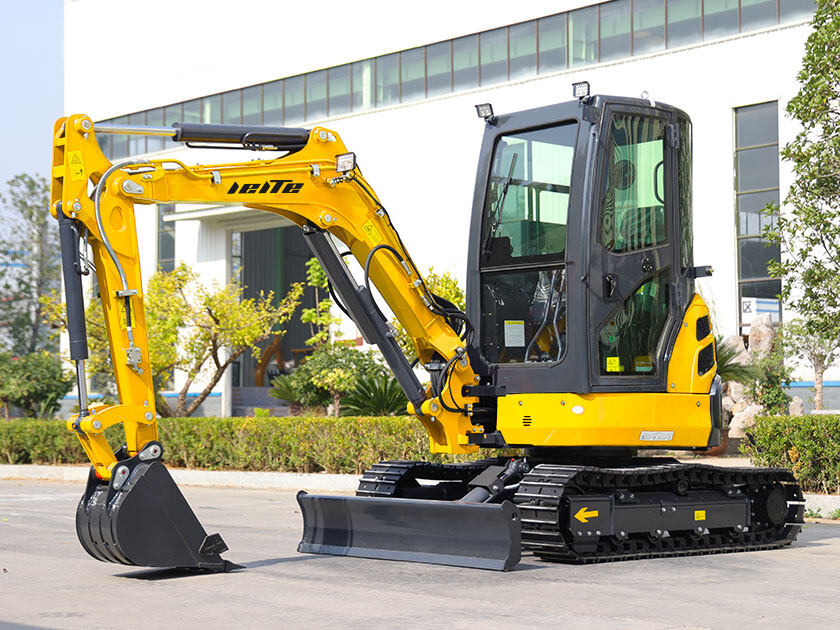

The LT1035S mini excavator is compact, highly maneuverable and has high lateral stability. It offers excellent value for general construction, landscaping and utility contractors. With its compact size, retractable undercarriage and dozer blade extension, this machine is ideal for getting through narrow doorways, fences and other passages.
Get a quote
View Video
Operating weight3500kg
Maximum dig depth2880mm
Net power18.5kW / 19.6kW
Bucket capacity0.09m³
Overview LT1035S mini excavator without tail
Powerful, high-performance, compact design to help you work in a variety of applications
Benefits
Color and logo can be customized
Customize your exclusive work partner according to your ideas
A variety of auxiliary tools are available
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
A variety of auxiliary tools are available
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
Overseas warehouse
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily
Introduction

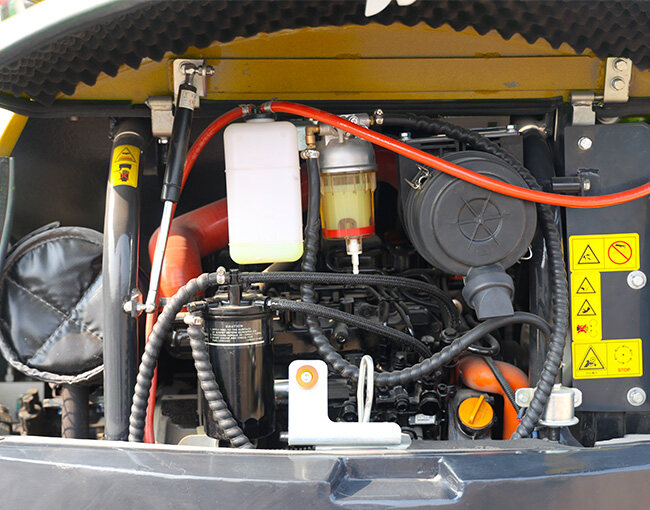

Engine

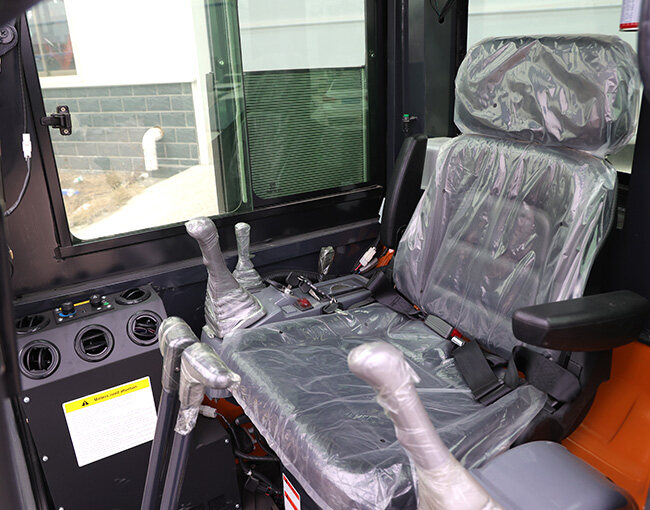

Easy to operate
Climbing ability
Customizable
Strong and reliable Reliability
Leite Mini excavators are precision engineered using components and systems from leading and proven sources. The LT1035S is designed to be rugged and reliable to extend uptime, reduce operating costs and increase productivity.
Special offers
Specifications
Engine
Kubota V1505/YANMAR 3TNV88
Net power
18.5kw/19.6kw
Operating weight
3500 kg
Bucket capacity
0.09m³
Hight of bulldozer blade
335 mm
Max.excavating force
26.5 KN
Track center distance
1250 mm
Fuel tank capacity
40L
Overall dimension
4485*1550*2440 mm
Track length
2100 mm
Track width
300 mm
Min.radius of gyration at rear end
790 mm
Swing angle
70/50°
Max.excavation height
4600 mm
Max.unloading height
3175 mm
Max.excavation depth
2880 mm
Max.digging distance
4965 mm
Max.excavation ground distance
4845 mm
Min.radius of gyration of front section
2035 mm
