Products / mini excavator without tail / LT1030S

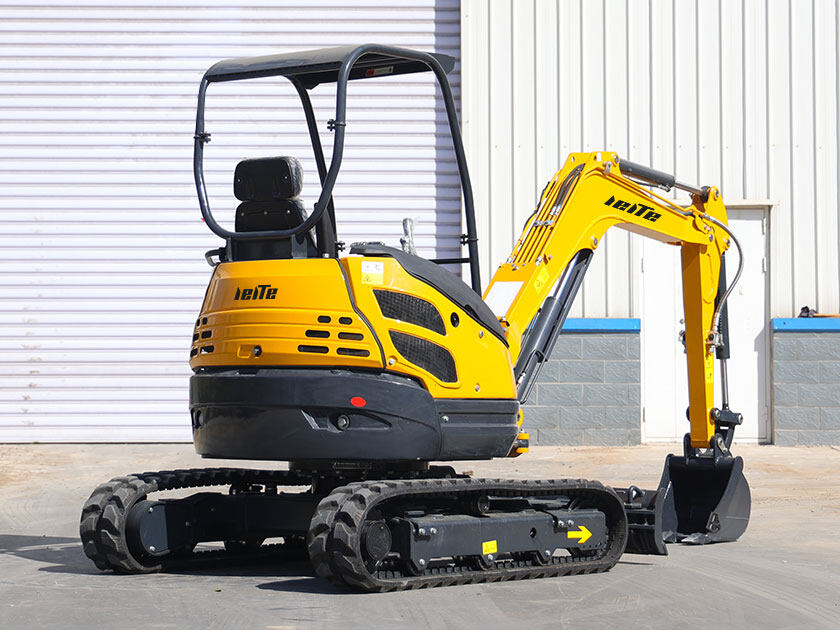

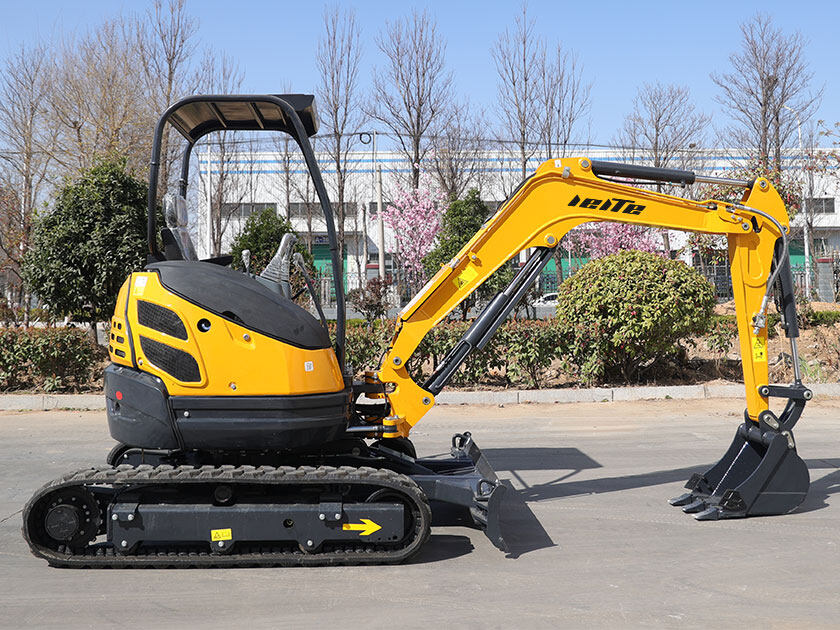

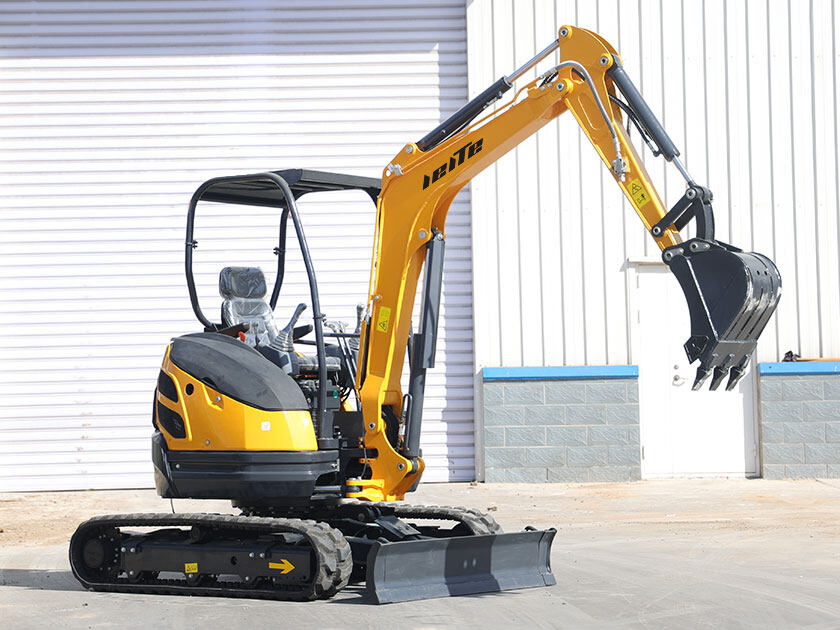

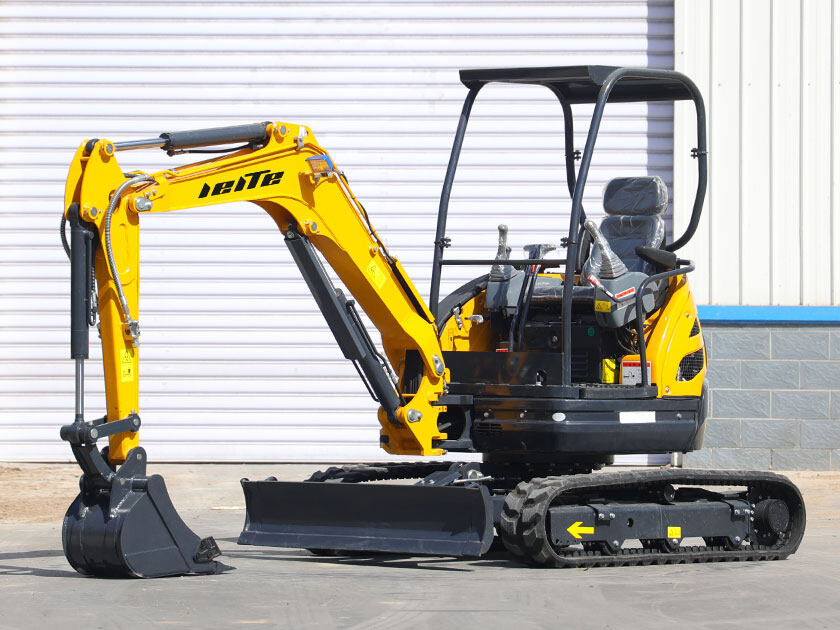

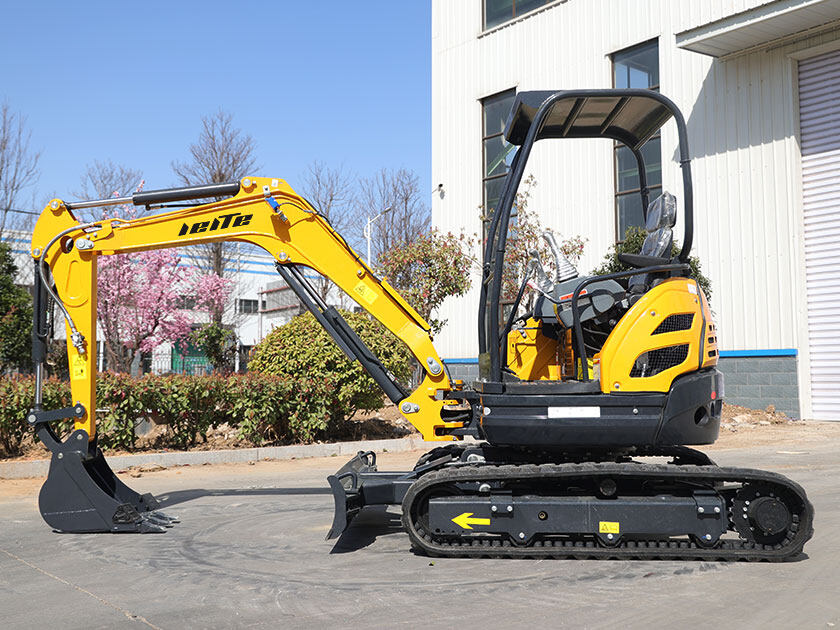

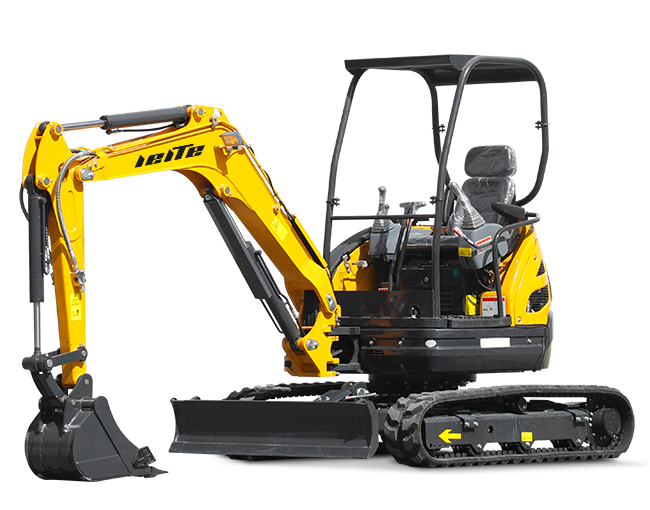

LT1030Smini excavator without tail
HIGH WORK EFFICIENCY
POWERFUL PERFORMANCE

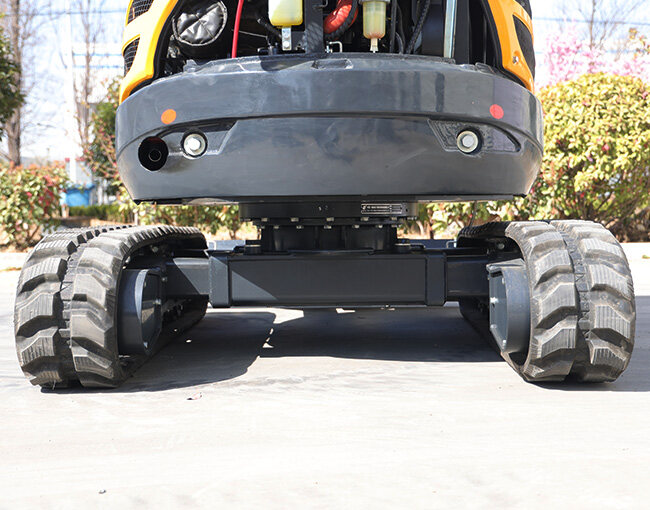

The LT1030S mini excavator is compact, highly maneuverable and has high lateral stability. It offers excellent value for general construction, landscaping and utility contractors. With its compact size, retractable undercarriage and dozer blade extension, this machine is ideal for getting through narrow doorways, fences and other passages.
Get a quote
View Video
  • Operating weight3000kg
  • Maximum dig depth2880mm
  • Net power16kW
  • Bucket capacity0.09m³
Overview LT1030S mini excavator without tail

Powerful, high-performance, compact design to help you work in a variety of applications

Benefits
  • Color and logo can be customized

    Customize your exclusive work partner according to your ideas

  • A variety of auxiliary tools are available

    Multiple auxiliary tools can be replaced to achieve multiple uses of one machine

  • A variety of auxiliary tools are available

    Multiple auxiliary tools can be replaced to achieve multiple uses of one machine

  • Overseas warehouse

    We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily

  • Introduction

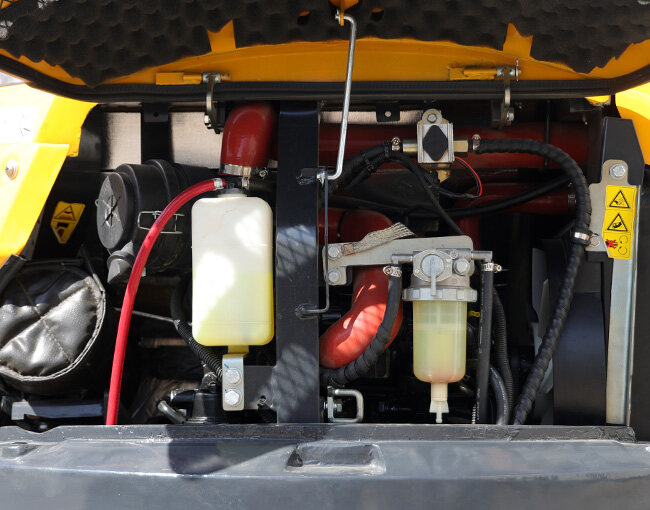

  • Engine

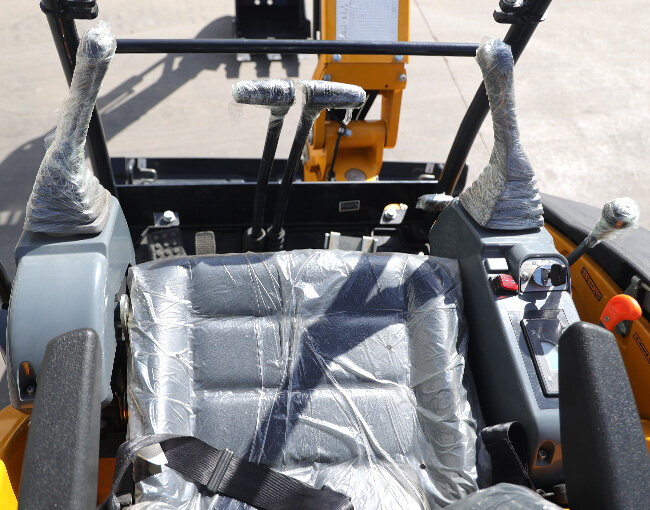

  • Easy to operate
  • Climbing ability
  • Customizable
  • Strong and reliable Reliability
  • Strong and reliable Reliability

    Leite Mini excavators are precision engineered using components and systems from leading and proven sources. The LT1030S is designed to be rugged and reliable to extend uptime, reduce operating costs and increase productivity.

    Special offers
Specifications
Engine Changchai 3M78
Net power 16kw 2400rpm
Operating weight 3000 kg
Bucket capacity 0.09m³
Swing speed 8.5 r/min
Swing angle 70/50°
Max.gradeability 58(30)°
Max.travel speed 3.0/4.2 km/h
Length*Width*Height 4485*1550*2440 mm
Bucket digging force 26.5 kN
Min.turning radius of the rear end 790 mm
Fuel tank capacity 40 L
Track length 2100 mm
Max.digging height 4600 mm
Max.unloading height 3175 mm
Max.digging depth 2880 mm
Max.vertical arm digging depth 2305 mm
Max.digging distance 4965 mm
Min.ground clearance 290 mm
