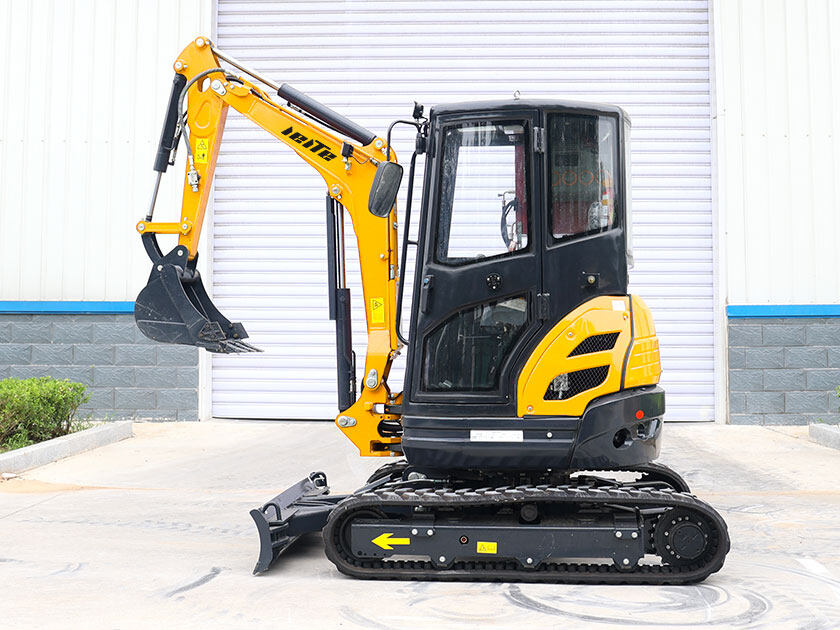

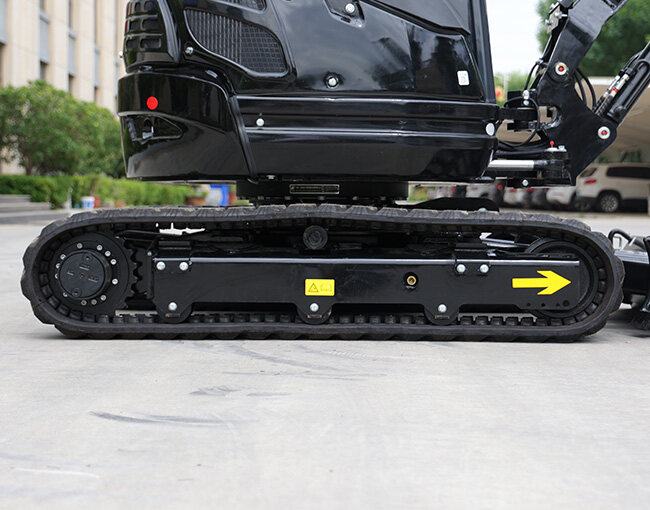

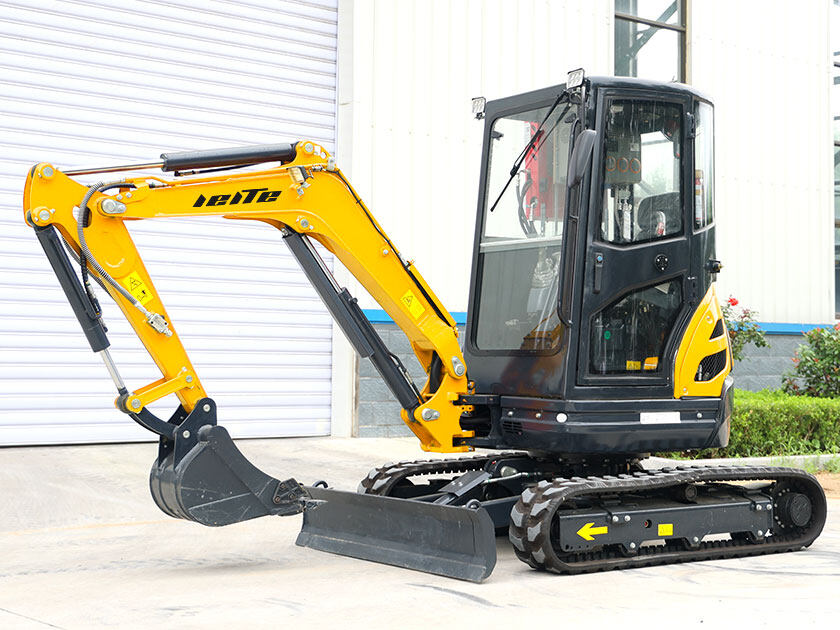

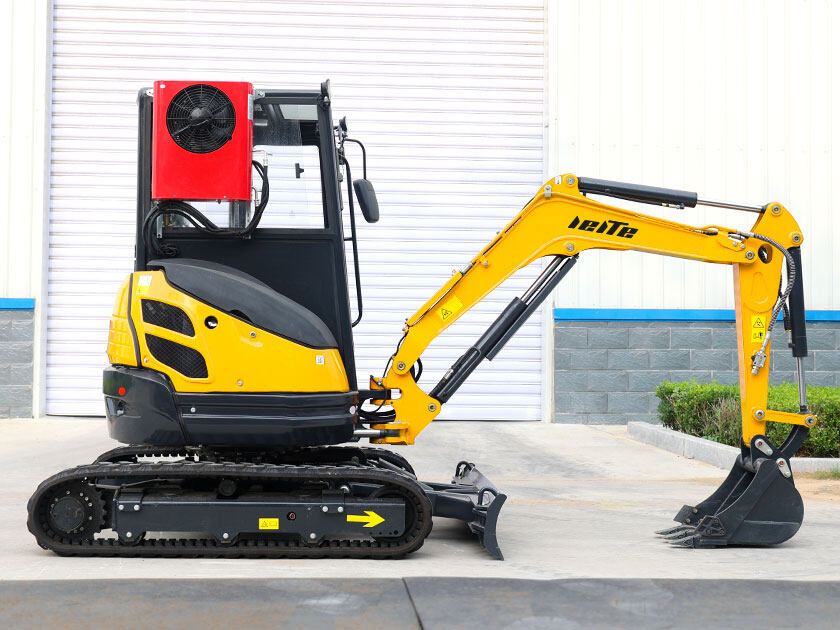

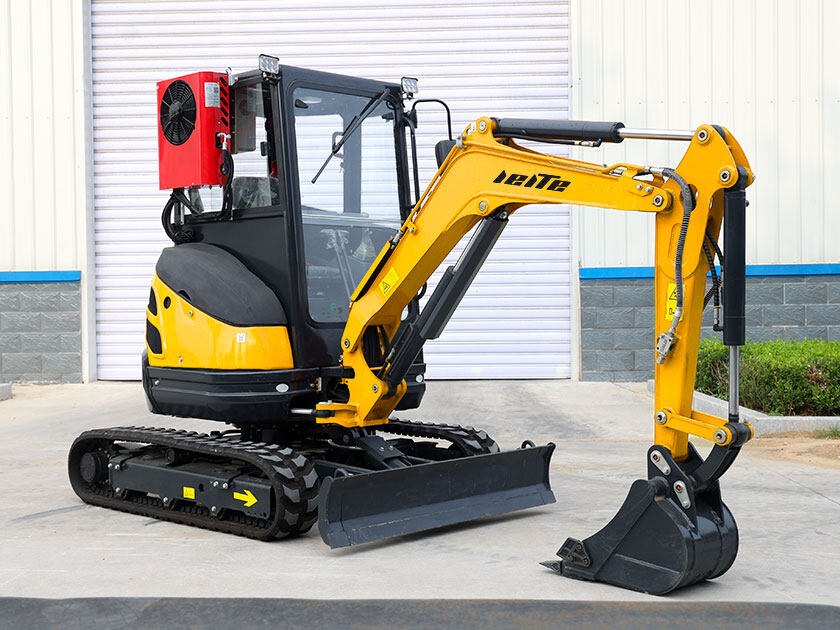

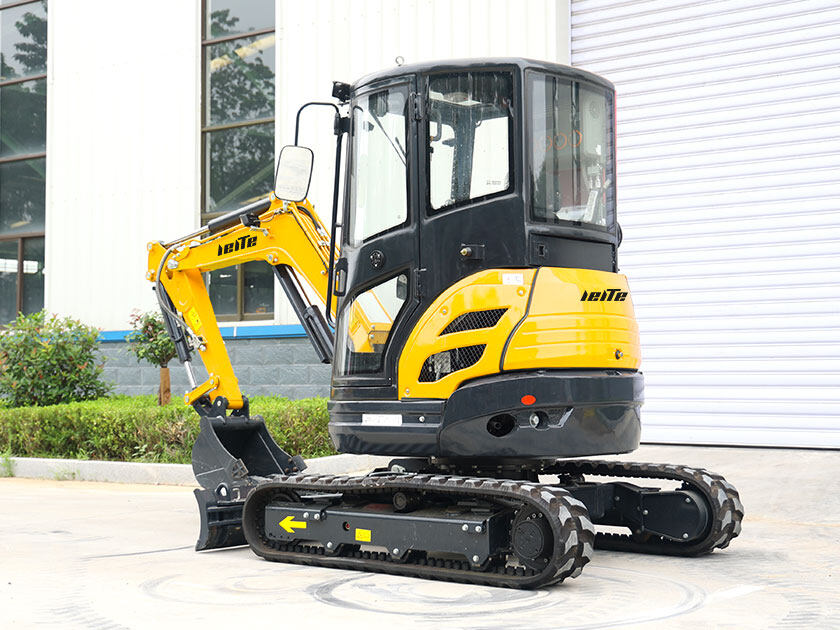

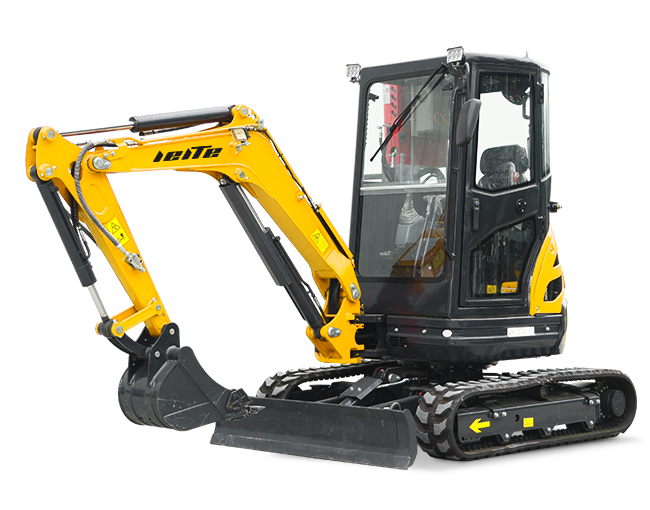

The LT1026S mini excavator is compact, highly maneuverable and has high lateral stability. It offers excellent value for general construction, landscaping and utility contractors. With its compact size, retractable undercarriage and dozer blade extension, this machine is ideal for getting through narrow doorways, fences and other passages.
Get a quote
View Video
Operating weight2600kg
Maximum dig depth2320mm
Net power15kW / 14kW
Bucket capacity0.066m³
Overview LT1026S mini excavator without tail
Powerful, high-performance, compact design to help you work in a variety of applications
Benefits
Color and logo can be customized
Customize your exclusive work partner according to your ideas
A variety of auxiliary tools are available
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
A variety of auxiliary tools are available
Multiple auxiliary tools can be replaced to achieve multiple uses of one machine
Overseas warehouse
We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily
Introduction
Engine

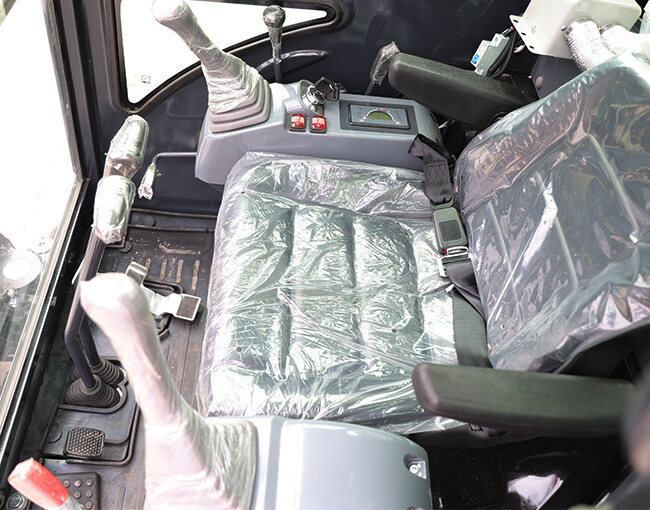

Easy to operate
Climbing ability
Customizable
Strong and reliable Reliability
Leite Mini excavators are precision engineered using components and systems from leading and proven sources. The LT1026S is designed to be rugged and reliable to extend uptime, reduce operating costs and increase productivity.
Special offers
Specifications
Engine
YANMAR 3TNV76-F/KUBOTA 1105
Net power
15kw/14kw
Operating weight
2600 kg
Bucket capacity
0.066m³
Dozer blade width(extend/retract)
1300/1500 mm
Bucket digging force
18.4KN
Gradeability
58(30)°
Fuel tank capacity
28L
Engine displacement
1.115L(cc)
Walking speed(high/low)
2.4/4.2 km/h
Swing speed
9.2r/min
Swing angle
75/55°
Track length
1860 mm
Max.excavation height
3880 mm
Max.unloading height
2550 mm
Max.excavation depth
2320 mm
Max.vertical digging depth
1900 mm
Max.digging distance
4140 mm
Max.bulldozing depth
270 mm
