Products / Backhoe Loaders / LTZ08-12T
LTZ08-12TBackhoe Loaders
LTZ08-12TBackhoe Loaders
GOOD MANEUVERABILITY
STRONG APPLICABILITY
They are mainly used in civil engineering, mining, agriculture, ports and docks, and are widely used in various transportation, cargo loading and unloading operations. They have good mobility, will not damage the road surface, and are easy to operate, meeting the needs of multi-tasking in heavy construction sites.
Get a quote
View Video

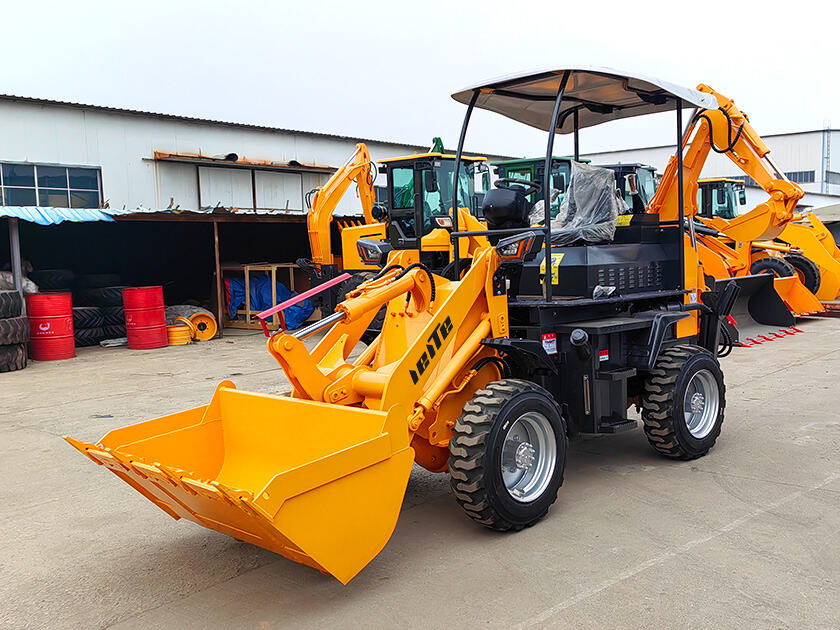

1.LTZ08-12-Backhoe-Loader

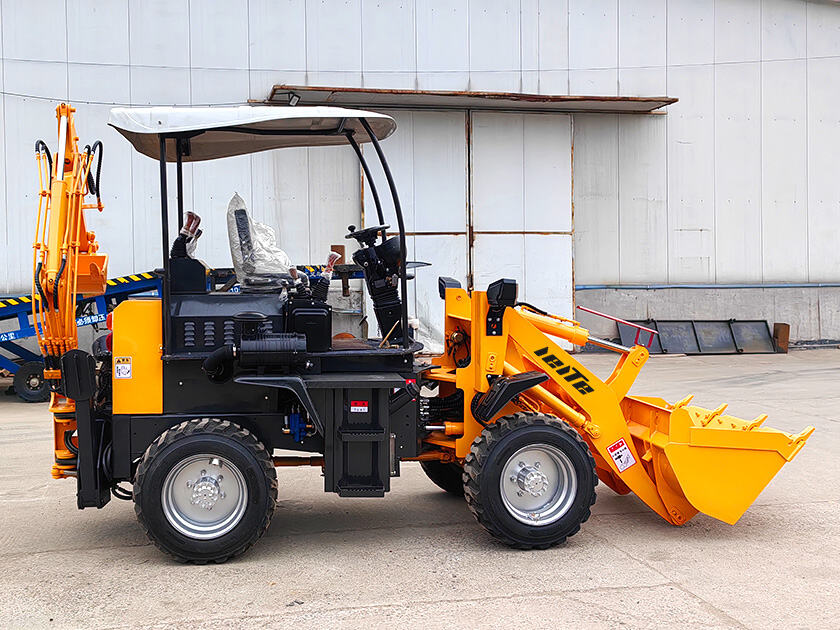

2.LTZ08-12-Backhoe-Loader
3.LTZ08-12-Backhoe-Loader

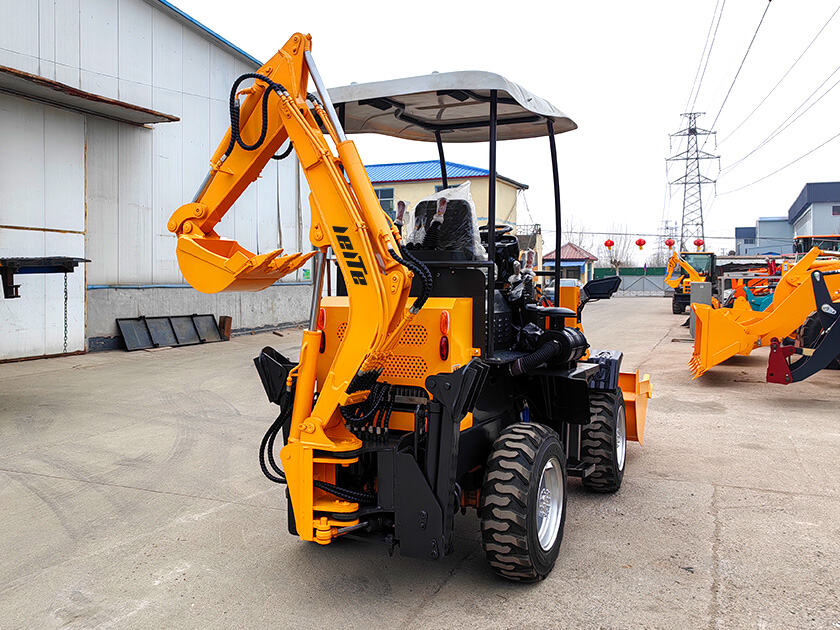

4.LTZ08-12-Backhoe-Loader
5.LTZ08-12-Backhoe-Loader
  • Bucket capacity0.3m³
  • Power37kW
  • Weight2400kg
  • Dimension4400*1665*2550mm
Overview LTZ08-12T Backhoe Loaders

Powerful, high performance, innovative design to help you work in a variety of applications

Benefits
  • Color and logo can be customized

    Customize your exclusive work partner according to your ideas

  • Multiple brands of engines available

    Recommend suitable engines for you according to the environmental protection requirements of your location

  • 24-hour online customer service

    We have professional engineers 24 hours a day to answer your questions one-on-one, and you can enjoy a 365-day warranty when placing an order

  • Overseas warehouse

    We have established warehouses in the United States and Europe, where agents and customers can test the machines on site and pick up the goods easily

  • We have extensive shipping experience

    Ensure your products are delivered safely to your doorstep.

  • Introduction

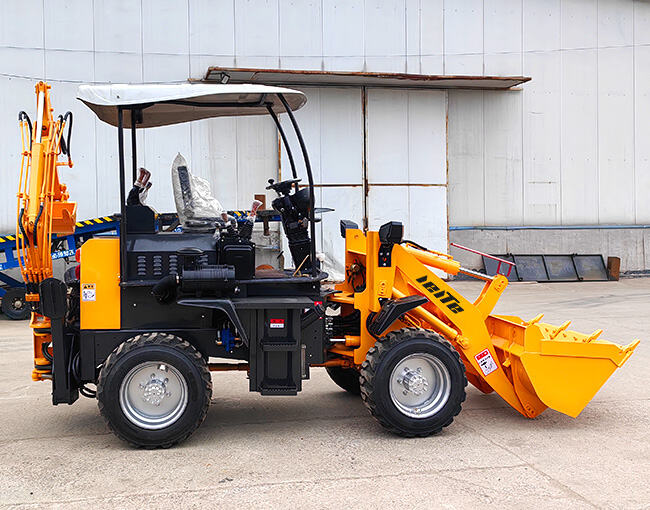

  • Flexible switching
  • Durability
  • Comfort
  • Versatility
  • Certification

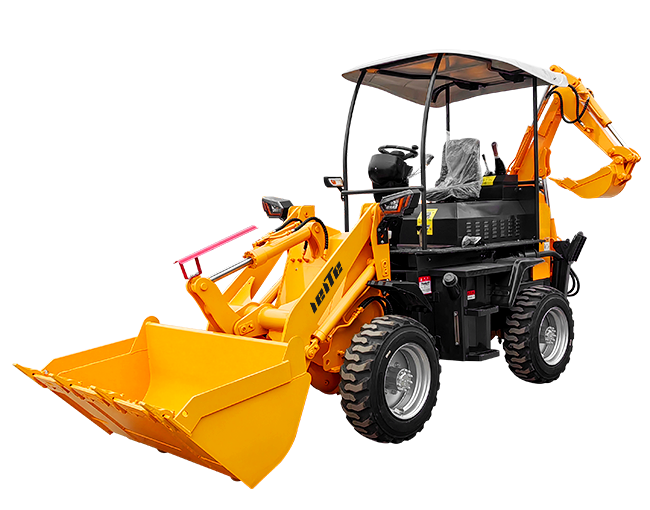

  • Dual-end operation function
  • Dual-end operation function

    The two-end loader is equipped with working devices at both ends, which can load and unload at both ends at the same time, reducing the number of round trips and greatly improving work efficiency. For example, at the construction site, it can load materials while unloading them to the designated location, saving a lot of time.

    Special offers
Specifications
Overall dimensions 4400*1665*2550mm
Wheelbase 1960mm
Track width 1130mm
Minimum ground clearance 250mm
System pressure 16MPa
Machine weight 2400kg
Maximum speed 25km/h
Maximum gradeability 25°
Engine model Yunnei YN25GB
Engine type Direct injection, four-stroke
Rated power 37kW
Rated speed 2400r/min
Maximum excavation depth 1200mm
Excavation unloading height 1800mm
Maximum excavation radius 2600mm
Bucket width 400mm
Bucket capacity 0.08m³
Maximum excavation height 2300mm
Maximum excavation force 25KN
Maximum unloading height 2300mm
Maximum unloading distance 750mm
Bucket width 1300mm
Backhoe capacity 0.3m³
Maximum lifting height of loading 2800mm
Maximum lifting force 36KN
Fuel tank 25L
Hydraulic oil tank 25L
