- Machine weight1690KG
- Cargo size2160*1550*600mm
- EngineHUICHAI 490
- Power57HP

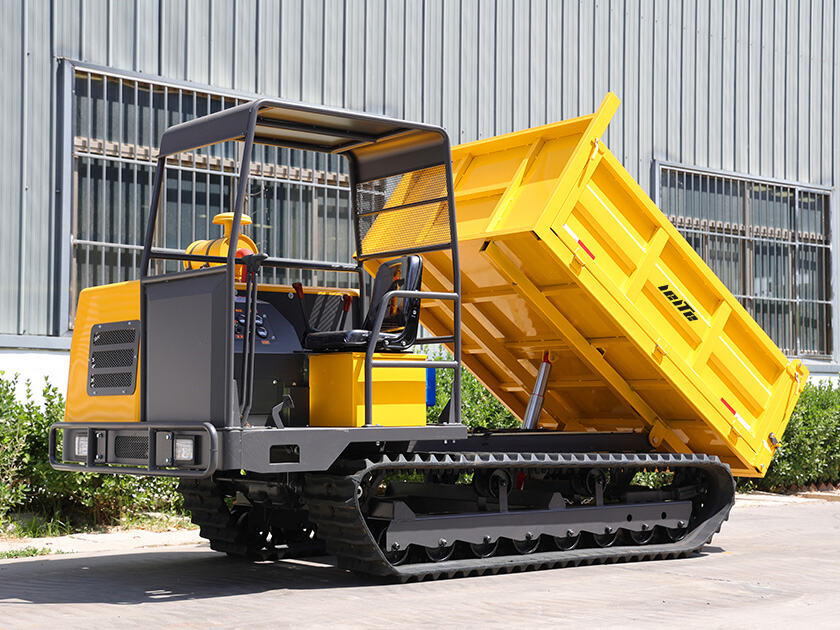

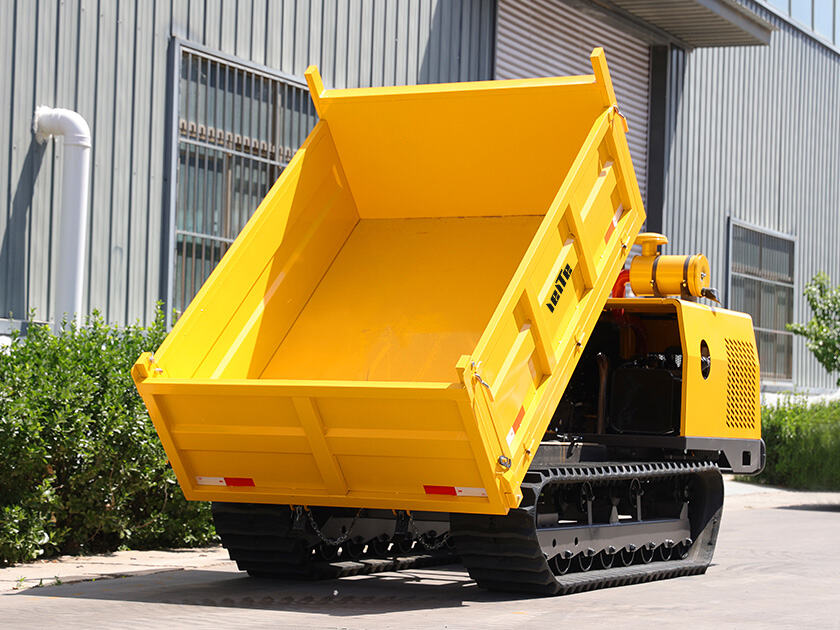

Choose which side you want to dump from: rear . This means youcan safely dump into trenches without using much space. There's aremarkable dumping angle of 58°, so first-time safe dumping speedsup your site work. A mudguard prevents material from falling fromthe wagon and damaging hydraulic components or getting into theoperator area.
| Load | 5000KG |
| Engine | HUICHAI 490 |
| Power | 57HP |
| Gearbox | Guli/Minhua 23 gearbox |

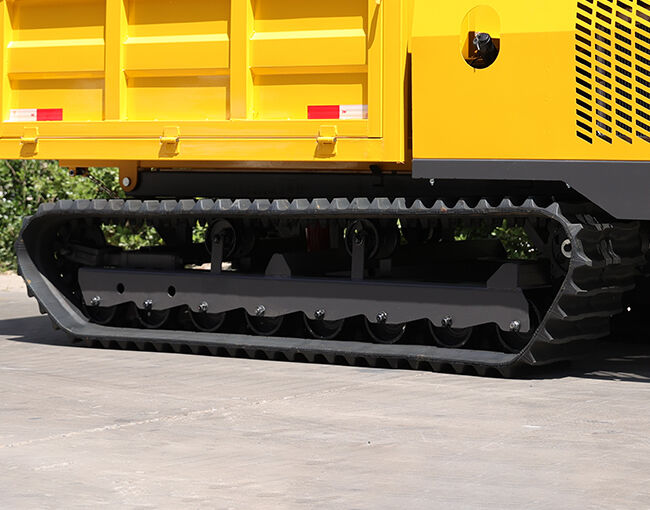

| Track | 400-90-62 |
| Vehicle size | 3530*1650*1750mm |
| Cargo size | 2160*1550*600mm |
| Ground length | 2000mm |
| Gear | Front 6 Back 2 |
| Maximum speed | 10km/h |
| Chassis width | 1600mm |
| Uphill grade | 35° |
| Number of Loaded Wheels | 8 |
| Dump Function | Dump bucket |
| Weight | 1690KG |
